Climax Technology
Smoke and Carbon Monoxide Detector
SDCO-1-AC
Notification Sensor
HW: 255 FW: 3.08
ZM5202
6.81.03
0x018E (398)
0x0003 (3)
0x0015 (21)
ZC10-19106769
2019-10-03 18:00:15.771905
N/A
Enhanced 232 Slave
Always On Slave
Yes
SDCO-1-AC is a Z-Wave Smoke and Carbon Monoxide Detector with temperature, humidity, and heat detection, as well as voice prompts and allows access to the “S2 Unauthenticated” class.
SDCO-1-AC is capable of sending wireless signals to the Z-Wave gateway/control panel upon detection of smoke particles or Carbon Monoxide. The device is also serially connected with other sensors in the Z-Wave gateway to serve as an extra siren. When any other sensor in the Z-Wave network is activated and sends an alarm signal, the Smoke Detector will also raise alarm with its built-in buzzer as a siren to help sound warning (for serial connection models).

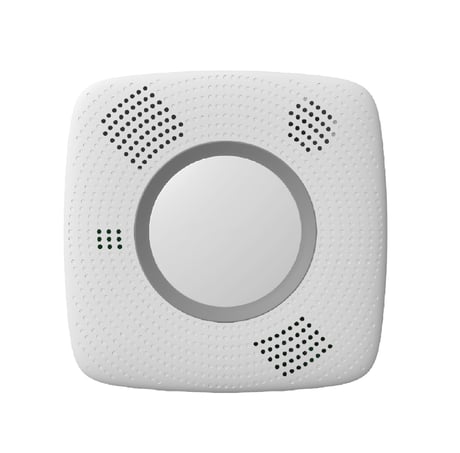

Product Image
1. Put the Z-Wave gateway or control panel into Inclusion mode (please refer to the Z-Wave gateway or control panel manual). 2. Within 1.5 seconds, press the button 3 times. 3. Refer to the operation manual of the Z-Wave gateway or control panel to complete the inclusion process. 4. If the sensor has already been included into another Z-Wave Gateway/Control Panel, or if the sensor is unable to be included into the current Z-Wave Gateway/Control Panel, please exclude it first (see Exclusion) before attempting to include it into the current Z-Wave Gateway/Control Panel.
The SDCO must be removed from existing Z-Wave network before being included into another. 1. Put the Z-Wave gateway or control panel into Exclusion mode (please refer to the Z-Wave gateway or control panel manual). 2. Within 1.5 seconds, press the button 3 times and the SDCO will be removed from the Z-Wave network.
Role Type: Always On Slave (AOS)
(Only use factory reset when network Control Panel/Gateway is missing or inoperable). #. Press and hold the button of the SDCO for 20 seconds. Release the button when you hear 3 beeps to perform factory reset.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm |
|
| CO Alarm |
|
| Heat Alarm |
|
| Home Security |
|
| Power Management |
|
| Sensor type |
|---|
| Air Temperature |
| Humidity |
| Carbon Monoxide (CO) Level |
| Smoke Density |
