Philio
Z-Wave CO Sensor
PSG04
Notification Sensor
HW: 1 FW: 1.02:01.02
SD3502
6.81.03
0x013C (316)
0x0002 (2)
0x0071 (113)
ZC10-19106770
2019-10-01 18:48:12.401597
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
This device is designed to give early warning of high concentration CO by giving off the alarm sounds from its build-in alarm horn.
The Z-Wave CO Sensor PSG04 is designed to give early warning of high concentration CO by giving off the alarm sounds from its build-in alarm horn, based on Z-WaveTM technology. It is the Z-WaveTM plus product, it support the security, OTA. Those newest features of the Z-WaveTM technology. Z-WaveTM is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, home access control, entertainment systems and household appliances. This product can be included and operated in any Z-WaveTM network with other Z-WaveTM certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

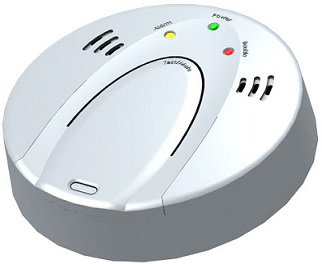

Product Image
1 - Auto Report Battery Time
The interval time for auto report the battery level. 0 means turn off auto report battery. Each tick means 30 minutes. The default value is 12(6 hours).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Units of 30 minute. |
1. Have Z-WaveTM Controller entered inclusion mode. 2. Pressing button three times within 1.5 seconds to enter the inclusion mode. 3. After add successful, the device will wake to receive the setting command from Z-WaveTM Controller about 20 seconds.
1. Have Z-WaveTM Controller entered exclusion mode. 2. Pressing button three times within 1.5 seconds to enter the exclusion mode. Node ID has been removed.
When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy.
1. Pressing button four times within 1.5 seconds and do not release the button in the 4th pressed. 2. After 3 secands and release the button within 2 seconds. 3. IDs are removed and all settings will reset to factory default.
The QR code can be found on the device PSG04 or in the box.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| CO Alarm | Sensor status: Carbon monoxide detected |
