Walmart, Inc
Walmart WiFi Bridge
WMBR-1
Gateway
HW: 1 FW: 6.07:02.81:02.02
ZM5101
6.81.06
0x042C (1068)
0x0001 (1)
0x0001 (1)
ZC10-19106777
2019-10-04 15:09:04.460983
N/A
Bridge Controller
Central Static Controller
The bridge connects security devices to the cloud for the Walmart InHome service.
The bridge connects security access devices to the cloud for the Walmart InHome service. This will allow delivery associates access to customer homes for the purpose of InHome delivery as well as allow customers to remotely monitor and control their access devices.

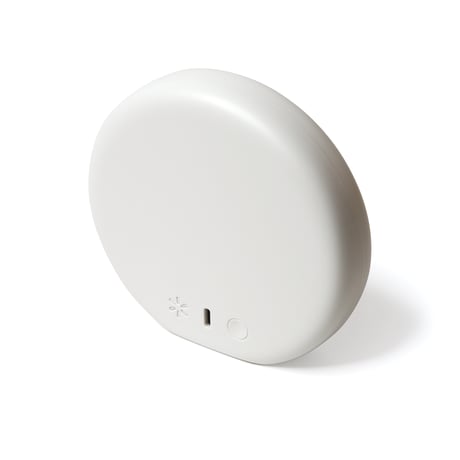

Product Image
1. From the home screen, navigate to the Settings page by pressing the (insert gear icon) 2. Select the About page 3. Select ‘Advanced Z-Wave Utilities’ 4. Select ‘Add device’ 5. Refer to the manufacturer’s instruction for inclusion using the DSK (device specific key). A user may attempt to use classic inclusion by entering `00000` as the DSK. 6. The app will indicate when device inclusion is successful
EXCLUSION 1. From the home screen, navigate to the Settings page by pressing the (insert gear icon) 2. Select the About page 3. Select ‘Advanced Z-Wave Utilities’ 4. Select ‘Exclude garage opener’ to put the bridge in Exclusion Mode. Refer to the manufacturer’s instruction for exclusion. 5. The app will indicate when device exclusion is successful.
If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable. To factory reset the WiFi Bridge, which will also factory reset and delete all Z-Wave network information, press and hold the button on the back of the bridge for 20 seconds.
The WiFi Bridge’s DSK (Device Security Key) is located in the WiFi bridge details page on the secure APP (TLS) and can be accessed by going to Settings > Garage Door Controller Device > WiFi bridge > Bridge details.
| Type | Value(s) |
|---|
