Ring
Ring Retrofit Alarm Kit
4AW1SZ-0EN0
Notification Sensor
HW: 1 FW: 1.00:01.00
ZM5101
6.81.03
0x0346 (838)
0x0B01 (2817)
0x0101 (257)
ZC10-19116787
2019-11-04 18:31:45.79641
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Ring Retrofit Alarm Kit is a Wired-to-wireless bridge that connects to your existing hardwired contact sensors and transmits open/close events wirelessly to Ring Alarm.
Ring Retrofit Alarm Kit is a Wired-to-wireless bridge that connects to your existing hardwired contact sensors and transmits open/close events wirelessly to Ring Alarm. Connect up to 8 wired contact sensor zones to the device. Set up and configure the device using the Ring app. After installation and setup, monitor and receive notifications when doors and windows with wired sensors connected to Retrofit Alarm Kit open and close. The Ring Alarm Base Station is required to enable Retrofit Alarm Kit features and functions. Once setup, wired sensors connected to Retrofit Alarm Kit can be monitored just like other Ring Alarm sensors in the system.

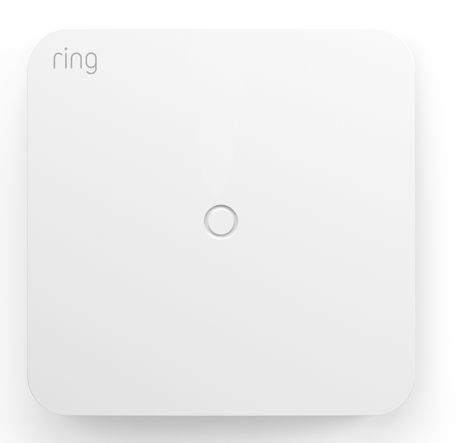

Product Image
1 - Heartbeats
Number of seconds between periodic battery reports. (Heartbeats)Size: 2 bytes
Default: 4200
Minimum: 255
Maximum: 4200
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 4200 | Number of seconds between periodic battery reports. (Heartbeats) |
2 - One-Time Wakeup Notification
One-Time Wakeup Notification. (In addition to normal Wakeup Notification)Size: 2 bytes
Default: 0
Minimum: 1
Maximum: 3600
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3600 | One-Time Wakeup Notification. (In addition to normal Wakeup Notification) |
3 - Application Level Retries
Number of Application Level Retries after a failed transmission defined as either not ACKed or Supervision Report not returned when encapsulated.Size: 1 byte
Default: 5
Minimum: 1
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 15 | Number of Application Level Retries after a failed transmission defined as either not ACKed or Supervision Report not returned when encapsulated. |
4 - seconds to sleep
The minimum number of seconds to sleep between application level retries.Size: 1 byte
Default: 6
Minimum: 1
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | The minimum number of seconds to sleep between application level retries. |
5 - Application Retry Multiplier
Application Retry Multiplier. The number of seconds between a current application retry is the count of retries multiplied by this number in seconds + a small random delay.Size: 1 byte
Default: 1
Minimum: 1
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 5 | Application Retry Multiplier. The number of seconds between a current application retry is the count of retries multiplied by this number in seconds + a small random delay. |
6 - wait for a Supervisory Report
The number of milliseconds to wait for a Supervisory Report in response to a Supervisory encapsulated Get.Size: 2 bytes
Default: 1500
Minimum: 500
Maximum: 5000
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 5000 | The number of milliseconds to wait for a Supervisory Report in response to a Supervisory encapsulated Get. |
Classic Inclusion Steps: 1. Initiate add flow in the Ring Alarm mobile application – Follow the guided add flow instructions provided in the Ring Alarm Mobile application 2. Select add manually and enter the 5 digit DSK pin found on the package of the Ring Alarm Retrofit Kit or the 5 digit DSK pin found on the inside of the top cover of the device. 4. When the inclusion process in complete, the LED on the keypad will be solid green, then go out. Smart Start Inclusion Steps: 1. Initiate add flow in the Ring Alarm mobile application – Follow the guided add flow instructions provided in the Ring Alarm Mobile application 2. Scan the QR code found on the package of the Ring Alarm Retrofit Kit or the QR code found on the inside of the top cover of the device. 4. When the inclusion process in complete, the LED on the keypad will be solid green, then go out.
Exclusion Instructions: 1. Initiate remove keypad flow in the Ring Alarm mobile application – Select the settings icon from device details page and choose “Remove Device” 2. Press and hold “1” key for three seconds 3. When the exclusion process is complete, the LED on the keypad will be solid blue, then go out 4. Test the Keypad. Any button presses would not beep
The sensor will wake up every so often to send a Wake-Up Notification to allow the life line master node controller that the sensor is now available for any queued messages that the controller may have for the sensor. The time between Wake-Up Notifications can be configured with the Wake-Up Notification command class to be between 1 and 24 hours with interval steps of 1 minute.
Ring Keypad – Reset Factory Default Instructions 1. Press and hold “5” key and using a pointed end of a paperclip, gently press and release reset button via the reset pinhole found at the back of the keypad 2. Red network LED at the top left-hand corner will start to blink rapidly 3. Wait for the red LED to stop blinking then release the “5” key Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
When prompted for the QR Code or DSK PIN, you can find them inside of the top cover of the device, on the box, or on a card inside the box. Keep the device nearby. You’ll be prompted to pull the battery tab to confirm the connection.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security |
|
