GoControl
Z-Wave Garage Door Controller
GD00Z-8-GC
Barrier Operator
HW: 3 FW: 3.00:03.02
ZM5202
6.71.00
0x014F (335)
0x4744 (18244)
0x3531 (13617)
ZC10-20016830
2020-01-07 23:56:03.521379
N/A
Enhanced 232 Slave
Always On Slave
Garage Door Remote Controller
The GoControl GD00Z-8-GC is the next iteration of the best selling line of Z-Wave controlled remote garage door status indicator and activator, with S2 security and OTA capability. Open or close a sectional garage door remotely through a Z-Wave certified Gateway or Security Panel. Compatible with virtually any garage door opener connected to a sectional garage door. Audible and visual warnings prior to remotely-activated door movement, meeting UL 325 safety requirements. Included tilt sensor reports door "open" or "close" information.

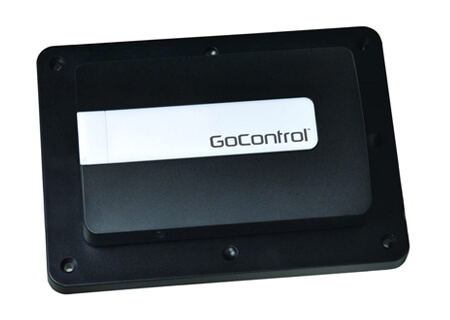

Product Image
1. Place your Z-Wave Controller into Discovery or Include mode. 2. Press and release the link button on the GD00Z-8.-GC 3. Confirm that the GD00Z-8-GC was recognized by your Z-Wave Controller.
1. Place your Z-Wave Controller into Exclude mode. 2. Press and release the link button on the GD00Z-8.-GC 3. Confirm that the GD00Z-8-GC was excluded by your Z-Wave Controller.
Pressing the LINK button 5 times to reset the unit.
N/A
Security 2 DSK label can be found on the bottom side of the product.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
