HYUNDAI TELECOM
DIGITAL DOOR LOCK
HDL-7390SK
Door Lock - Keypad
HW: 1 FW: 1.00:01.00
ZM5101
6.81.06
0x0374 (884)
0x0001 (1)
0x0083 (131)
ZC10-19126805
2019-12-02 16:57:07.199997
N/A
Enhanced 232 Slave
Listening Sleeping Slave
- Lock & Unlock Automatically - Supports Z-Wave
- Lock & Unlock Automatically - Supports Z-Wave - Touchscreen Keypad - Push/Pull Type - Finger print Module

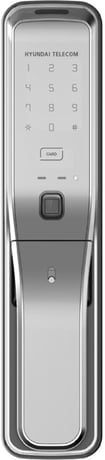

Product Image
To add or include the HDL-7300SK into a Z-Wave network 1. Set the controller in inclusion mode. 2. Open the battery cover of the indoor body and press the [REG 1] button. 3. Press the [1][4] button after pressing the [*] button.
To remove or exclude the HDL-7300SK into a Z-Wave network 1. Set the controller in exclusion mode. 2. Open the battery cover of the indoor body and press the [REG 1] button. 3. Press the [3][6] button after pressing the [*] button.
Keypad
To Factory Reset 1. Open the battery cover of the indoor body and press the [REG 1] button. 2. Press the [8][0] button after pressing the [*] button.
You can find the QR code and DSK inside of battery box.
| Group | Type |
|---|---|
| Access Control |
|
| Emergency Alarm |
|
