Minoston
Smart Plug - 1 channel
MP21Z
On/Off Power Switch
HW: 255 FW: 1.255
ZM5202
6.71.01
0x0312 (786)
0xFF00 (65280)
0xFF06 (65286)
ZC10-19116797
2019-11-25 15:25:54.806023
N/A
Enhanced 232 Slave
Always On Slave
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal ,around obstacles and radio dead spots to ensure that the signal is received at its intended destination.

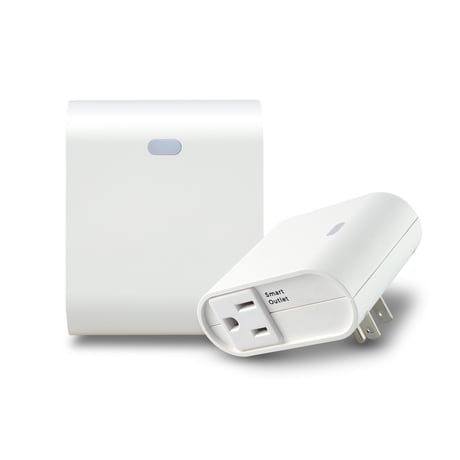

Product Image
1 - Status LED Configuration
Status LED ConfigurationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | outlet on,led on. |
| 1 | 1 | outlet on,led off. |
| 2 | 2 | LED off |
2 - Count Down Configuration
Count Down ConfigurationSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | The countdown time, the socket closed） |
ADD the MP21Z from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the Up or Down button three times in one second. Include MP21Z to/from a Z-Wave Gateway with supporting Security.The MP21Z can support the Primary Controller that implemented the security S2.
Remove the MP21Z from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the Up or Down button three times in one second. Include MP21Z to/from a Z-Wave Gateway with supporting Security.The MP21Z can support the Primary Controller that implemented the security S2.
MANUAL RESET ---Power off MP21Z ---keep holding the PROG button ---Power on,Press and keep holding the PROG button for no less than 10 seconds. Please use this procedure only when the network primary controller is missing or otherwise inoperable."
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | Heat sensor status: Overheat detected (location provided) |
