Inovelli
4-in-1 Sensor
LZW60
Notification Sensor
HW: 3 FW: 2.02
ZM5101
6.81.00
0x031E (798)
0x000D (13)
0x0001 (1)
ZC10-20016857
2020-01-29 17:32:49.044519
N/A
Enhanced Slave
Reporting Sleeping Slave
Yes
The Inovelli 4-in-1 Z-Wave Plus (w/S2 & SmartStart) sensor by Inovelli measures motion, light, temperature and humidity.
The 4-in-1 sensor is designed for use with scenes in home automation systems, and has motion, light, temperature and humidity readings built in. The sensor can be powered by CR123A battery or USB cable. The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement (or lack of movement). It also lets you know the ambient temperature and humidity to trigger different actions to make you more comfortable.

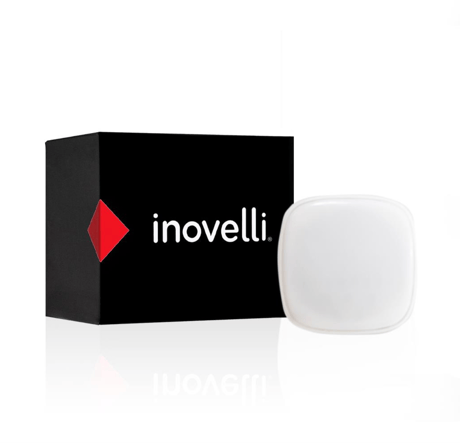

Product Image
10 - Low Battery Power Level Alarm
Value at which the sensor reports low battery to the gateway 10 = 10%, 11 = 11%... 50 = 50%, etcSize: 1 byte
Default: 10
Minimum: 10
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | Value at which the sensor reports low battery to the gateway 10 = 10%, 11 = 11%... 50 = 50%, etc |
12 - PIR Sensitivity
Change the sensitivity of the PIR (Motion) Sensor 0 = Off, 1 = Low Sensitivity, 10 = High SensitivitySize: 1 byte
Default: 10
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | Change the sensitivity of the PIR (Motion) Sensor 0 = Off, 1 = Low Sensitivity, 10 = High Sensitivity |
13 - PIR Trigger Time (Time Between PIR Readings)
"The amount of seconds between motion detection (ie: the interval) 5 = 5 seconds, 6 = 6 seconds... 15300 = 15300 seconds"Size: 2 bytes
Default: 30
Minimum: 5
Maximum: 15300
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 15300 | "The amount of seconds between motion detection (ie: the interval) 5 = 5 seconds, 6 = 6 seconds... 15300 = 15300 seconds" |
14 - Basic Set Command Send after PIR Trigger
"Should Basic Set Command be sent after PIR is triggered: 0 = No, 1 = Yes"Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | "Should Basic Set Command be sent after PIR is triggered: 0 = No, 1 = Yes" |
15 - PIR Trigger Correspondence Action
"Ability to reverse the Basic Set behavior for devices associated in group 2. 0 = Turn the associated device ON when motion is tripped, and OFF when motion stops. 1 = Turn the associated device OFF when motion is tripped, and ON when motion stops."Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | "Ability to reverse the Basic Set behavior for devices associated in group 2. 0 = Turn the associated device ON when motion is tripped, and OFF when motion stops. 1 = Turn the associated device OFF when motion is tripped, and ON when motion stops." |
101 - Temperature Reporting Interval
"The interval between when temperature is reported to the gateway 0 = Off, 1 = 1 second, 2 = 2 seconds... 2678400 = 2678400 seconds (NOTE: the sensor reporting time will round to the nearest minute)"Size: 4 bytes
Default: 7200
Minimum: 0
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2678400 | "The interval between when temperature is reported to the gateway 0 = Off, 1 = 1 second, 2 = 2 seconds... 2678400 = 2678400 seconds (NOTE: the sensor reporting time will round to the nearest minute)" |
102 - Humidity Reporting Interval
"The interval between when humidity is reported to the gateway 0 = Off, 1 = 1 second, 2 = 2 seconds... 2678400 = 2678400 seconds (NOTE: the sensor reporting time will round to the nearest minute)"Size: 4 bytes
Default: 7200
Minimum: 0
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2678400 | "The interval between when humidity is reported to the gateway 0 = Off, 1 = 1 second, 2 = 2 seconds... 2678400 = 2678400 seconds (NOTE: the sensor reporting time will round to the nearest minute)" |
103 - Luminance Reporting Interval
"The interval between when luminance is reported to the gateway 0 = Off, 1 = 1 second, 2 = 2 seconds... 2678400 = 2678400 seconds (NOTE: the sensor reporting time will round to the nearest minute)"Size: 4 bytes
Default: 7200
Minimum: 0
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2678400 | "The interval between when luminance is reported to the gateway 0 = Off, 1 = 1 second, 2 = 2 seconds... 2678400 = 2678400 seconds (NOTE: the sensor reporting time will round to the nearest minute)" |
104 - Battery Reporting Interval
"The interval between when battery is reported to the gateway 0 = Off, 1 = 1 second, 2 = 2 seconds... 2678400 = 2678400 seconds (NOTE: the sensor reporting time will round to the nearest minute)"Size: 4 bytes
Default: 86400
Minimum: 0
Maximum: 2678400
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2678400 | "The interval between when battery is reported to the gateway 0 = Off, 1 = 1 second, 2 = 2 seconds... 2678400 = 2678400 seconds (NOTE: the sensor reporting time will round to the nearest minute)" |
111 - Temperature Threshold
"Set the threshold of the temperature for your sensor 1 = 0.1 degree Celcius (I know… wish it was Farenheit), 500 = 50 degrees Celcius "Size: 2 bytes
Default: 10
Minimum: 1
Maximum: 500
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 500 | "Set the threshold of the temperature for your sensor 1 = 0.1 degree Celcius (I know… wish it was Farenheit), 500 = 50 degrees Celcius " |
112 - Humidity Threshold
"Set the threshold of the humidity for your sensor 1 = 1%, 2 = 2%... 32 = 32%"Size: 1 byte
Default: 5
Minimum: 1
Maximum: 32
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32 | "Set the threshold of the humidity for your sensor 1 = 1%, 2 = 2%... 32 = 32%" |
113 - Luminance Threshold
"Set the threshold of the luminance for your sensor 1 = 1 unit lux, 2 = 2 unit lux… 65528 = 65528 unit lux"Size: 2 bytes
Default: 2
Minimum: 1
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | "Set the threshold of the luminance for your sensor 1 = 1 unit lux, 2 = 2 unit lux… 65528 = 65528 unit lux" |
114 - Battery Threshold
"Set the threshold of the battery for your sensor 1 = 1%, 2 = 2%... 100 = 100%"Size: 1 byte
Default: 10
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | "Set the threshold of the battery for your sensor 1 = 1%, 2 = 2%... 100 = 100%" |
Press the sensor button 1x and the sensor will flash red rapidly. If successful, the sensor will stop flashing and the red light will be solid for 1-2 seconds, followed by the red light turning off. If unsuccessful, the red light will continue to rapidly flash until it times out after 25 seconds
Put your HUB in Exclusion mode and press the sensor button 1x. Your sensor will rapidly blink, indicating it’s in exclusion mode. When exclusion is successful, the red light will stop blinking, turn solid red and then turn off.
Short press the sensor button 3x within 1.5 seconds
You may hold the Sensor Button for 5 seconds or use a certified controller to remove the device from your network to factory default. The sensors red LED will blink fast and then if successful, will turn off. Only use this procedure in the event that the network primary controller is missing or otherwise inoperable.
Back of sensor
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Light sensor |
|
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
| Illuminance |
| Humidity |
