InWave Pro Z-Wave device database

Brand

HELTUN

Name

Heating Thermostat

Part number

HE-HT01

Device type

Thermostat - HVAC

Description

Advanced Programmable Z-Wave Plus v2 Thermostat for Heating Systems—with S2 security and Smart Start on the Z-Wave 700 platform.

Z-Wave Features

Category (1)

Thermostats

Z-Wave Chip Series

700

Regions (16)

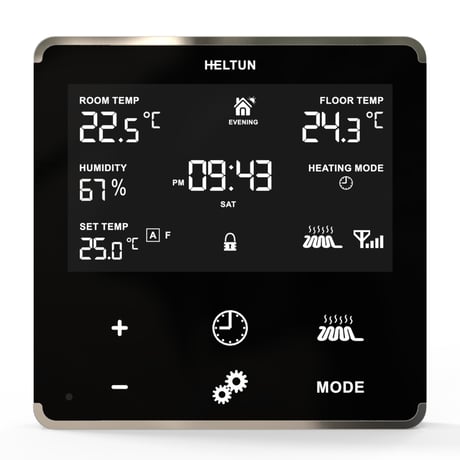

Product Image

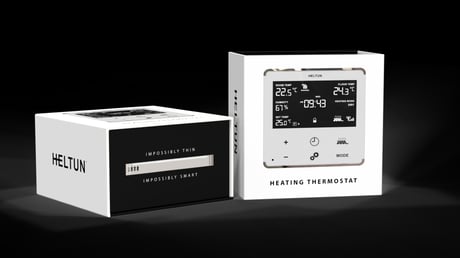

Package Box

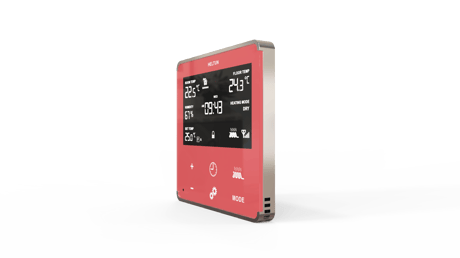

30 colour combinations available

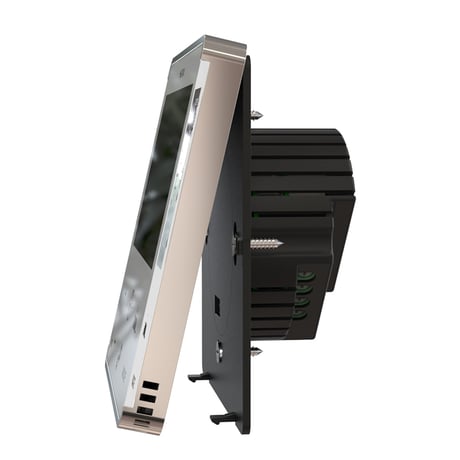

Snap-in Installation

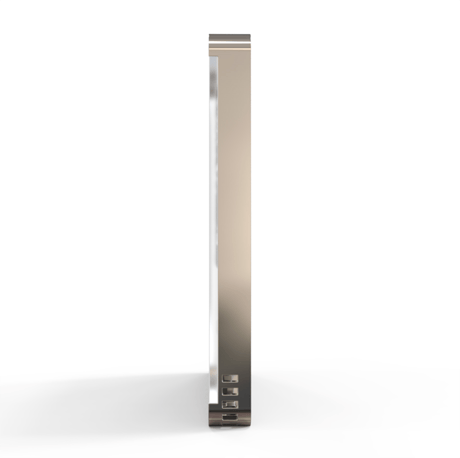

Side View

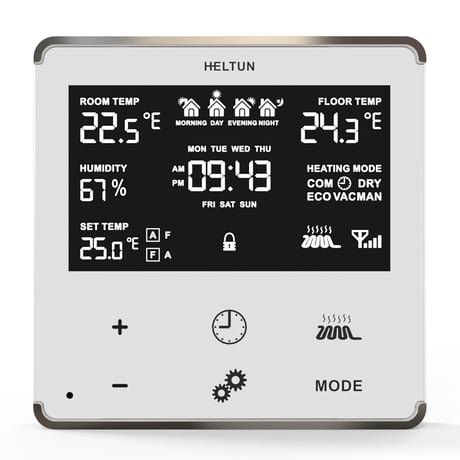

HELTUN HE-HT01 Heating Thermostat (Black glass, Silver frame)

0 / 0

Download configuration parameters

Download configuration parameters and import them in your Smart Home hub.

Please log in to download configuration parameters

1 - NTC RESISTANCE

Floor Sensor Resistance (kΩ)

Size: 1 byte

Default: 10

Minimum: 1

Maximum: 100

Possible values

From	To	Desription
1	100	Floor Sensor Resistance in kiloOhms (kΩ)

2 - S1 INPUT MODE

S1 input mode

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 2

Possible values

From	To	Desription
0	0	No action will be taken (the input state is ignored by the Thermostat logic).
1	0	Thermostat will be switched to the operating mode selected in Parameter 3 if the output was short-circuited. The Heating Thermostat will go back to previous mode as soon as the input is open.
2	0	Thermostat will be switched to the operating mode selected in Parameter 3 if the output was short-circuited, but it will not undertake any action if the input is open again.

3 - S1 INPUT ACTION

Mode number for S1 input action

Size: 1 byte

Default: 6

Minimum: 1

Maximum: 7

Possible values

From	To	Desription
1	0	COM mode
2	0	TIME mode
3	0	DRY mode
4	0	ECO mode
5	0	VAC mode
6	0	MAN mode with IDLE (Off) state
7	0	MAN mode with HEATING (On) state

4 - SOURCE TYPE

Source Sensor: 1=A, 2=AF, 3=F, 4=FA, 5=P, 6=PA, 7=PF

Size: 1 byte

Default: 6

Minimum: 1

Maximum: 7

Possible values

From	To	Desription
1	0	A – Air sensor. Regulation (heating control) is based on the SET POINT applied to the internal room air temperature sensor.
2	0	AF – Air sensor + Floor sensor. Regulation is based on SET POINT applied to the internal room temperature sensor but also controlled by the floor temperature sensor ensuring that the floor temperature remains within the set limits. The lower floor temperature limit is specified in Parameter 16 (FtL) and the high temperature limit in parameter 17 (FtH).
3	0	F – Floor sensor. Regulation is based on the SET POINT applied to the external floor temperature sensor.
4	0	FA – Floor sensor + Air sensor. Regulation is based on SET POINT applied to the external floor sensor but is also controlled by the internal air temperature sensor ensuring that the room temperature remains within the set limits. The lower air temperature limit is specified in Parameter 14 (AtL) and the higher temperature limit in Parameter 15 (AtH).
5	0	P – Power regulator. Regulation is based on the time settings for heating which will be ON during the time in Parameter 05 (POn) and then OFF during the time in Parameter 06 (POf). This cycle will be repeated constantly.
6	0	PA – Power regulator + Air sensor. Regulation is based on the time set by Parameters 05 and 06 but also controlled by the internal air temperature sensor ensuring that the room temperature remains within the set limits. The air temperature limits are specified in Parameters 14 and 15.
7	0	PF – Power regulator + Floor sensor. Regulation is based on the time set by Parameters 05 and 06 but also controlled by the floor temperature sensor ensuring that the floor temperature remains within set limits. The floor temperature limits are specified in Parameters 16 and 17.

5 - POWER REGULATION ON TIME

Power Regulation ON time, min

Size: 2 bytes

Default: 30

Minimum: 10

Maximum: 240

Possible values

From	To	Desription
10	240	This Parameter defines floor HEATING time in minutes when Power Regulator (P, PA or PF) is selected as the source sensor in Parameter 04. Time values can be changed in the range: 10 to 240 minutes.

6 - POWER REGULATION OFF TIME

Power Regulation OFF time, min

Size: 2 bytes

Default: 30

Minimum: 10

Maximum: 240

Possible values

From	To	Desription
10	240	This Parameter defines floor IDLE time in minutes when Power Regulator (P, PA or PF) is selected as the source sensor in Parameter 04. Time can be changed in the range: 10 to 240 minutes.

7 - DRY TIME

Dry Time, min

Size: 1 byte

Default: 30

Minimum: 5

Maximum: 90

Possible values

From	To	Desription
5	90	This Parameter specifies how long in minutes the Heating Thermostat will be in HEATING mode when the DRY mode is selected. After this time the HE-HT01 will enter the mode specified in Parameter 8. The time range is 5 to 90 minutes.

8 - DRY SWITCH MODE

Mode to switch after Dry mode operation completion

Size: 1 byte

Default: 1

Minimum: 1

Maximum: 6

Possible values

From	To	Desription
1	0	COM mode
2	0	TIME mode
4	0	ECO mode
5	0	VAC mode
6	0	MAN mode mode with IDLE state

9 - TIME CORRECTION

Time correction by controller

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Switch off auto-correction
1	0	If thermostat is connected to a Z-Wave gateway, the time and day will be periodically polled and corrected from the gateway

10 - TIME FORMAT

Time format

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	24 hour format
1	0	12 hour (AM/PM) format

11 - WEEKDAY

Week day. This parameter allows manually adjustment of the day of the week in case if the thermostat is not connected to any Z-Wave gateway or Parameter 09 (auto-correction) is selected as 0.

Size: 1 byte

Default: 1

Minimum: 1

Maximum: 7

Possible values

From	To	Desription
1	0	Monday
2	0	Tuesday
3	0	Wednesday
4	0	Thursday
5	0	Friday
6	0	Saturday
7	0	Sunday

12 - HOUR

Time hour

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 23

Possible values

From	To	Desription
0	23	This Parameter allows manual adjustment of Time in hours (24 hours).

13 - MINUTE

Time minutes

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 59

Possible values

From	To	Desription
0	59	This Parameter allows manual adjustment of the Time in minutes (60 minutes))

14 - AIR TEMP MIN

Air Temperature Minimum in °C, value X 10, e.g. 22.5°C=225 The AIR TEMP MIN value cannot be higher than AIR TEMP MAX value –10

Size: 2 bytes

Default: 210

Minimum: 40

Maximum: 360

Possible values

From	To	Desription
40	360	This Parameter is the room temperature low limit – reading the internal temperature sensor. This only comes into effect if FA or PA are selected as the source sensor in Parameter 04. The factory default value is 21°C (69°F). Note: The AtL value cannot be higher than AtH value –1°C.

15 - AIR TEMP MAX

Air Temperature Maximum in °C, x10 The AIR TEMP MAX value cannot be lower than AIR TEMP MIN value +10

Size: 2 bytes

Default: 270

Minimum: 50

Maximum: 370

Possible values

From	To	Desription
50	370	This Parameter is the room temperature high limit – reading the internal temperature sensor. This only comes into effect if FA or PA are selected as the source sensor in Parameter 4. The factory default value is 27°C (80°F). Note: The AtH value cannot be lower than AtL value +1°C.

16 - FLOOR TEMP MIN

Floor Temperature Minimum in °C, x10 The FLOOR TEMP MIN value cannot be higher than FLOOR TEMP MAX value –10

Size: 2 bytes

Default: 180

Minimum: 40

Maximum: 360

Possible values

From	To	Desription
40	360	This Parameter is the floor temperature low limit – reading the external NTC temperature sensor. It only comes into effect if AF or PF are selected as the source sensor. The factory default value is 18°C or 64°F. Note: The FtL value cannot be higher than FtH value –1°C.

17 - FLOOR TEMP MAX

Floor Temperature Maximum in °C, x10 The FLOOR TEMP MAX value cannot be lower than FLOOR TEMP MIN value +10

Size: 2 bytes

Default: 320

Minimum: 50

Maximum: 370

Possible values

From	To	Desription
50	370	This Parameter is the floor temperature high limit – reading the external NTC temperature sensor. It only comes into effect if AF or PF are selected as the source sensor. The factory default value is 32°C (89°F). Note: The FtH value cannot be lower than FtL value +1°C.

18 - DEGREE MODE

Degree mode (C/F) Floor and air temperature, as well as Set Point and all Parameters will be indicated in the chosen mode. Factory default value is degrees Celsius (0).

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Celsius
1	0	Fahrenheit

19 - AIR TEMP CORRECTION

Air Temperature Calibration in °C, x10. This Parameter defines the offset value for room air temperature. If the internal air temperature sensor is not correctly calibrated, then manual calibration can be made by adjusting the values up to ±9.5°C or ±17°F (this value will be added or subtracted from the internal air temperature sensor reading).

Size: 1 byte

Default: 0

Minimum: -95

Maximum: 95

Possible values

From	To	Desription
-95	95	This value will be added or subtracted from the internal air temperature sensor reading.

20 - FLOOR TEMP CORRECTION

Floor Temperature Calibration in °C, x10. This Parameter defines the offset value for floor temperature. If the external floor temperature sensor is not calibrated properly, then manual calibration can be made by adjusting the values up to ±9.5°C or ±17°F (this value will be added or subtracted from the floor temperature sensor reading).

Size: 1 byte

Default: 0

Minimum: -95

Maximum: 95

Possible values

From	To	Desription
-95	95	This value will be added or subtracted from the floor temperature sensor reading.

21 - TEMP HYSTERESYS

Temperature Hysteresis in °C, x10. The HE-HT01 will stabilize the temperature with selected hysteresis. For example, if the SET POINT is set for 25°C and HYSTERESIS is set for 0.5°C the HE-HT01 will change the state to IDLE if the temperature reaches 25.0°C, but it will change the state to HEATING if the temperature becomes lower than 24.5°C. The hysteresis can be changed from 0.2°C to 10.0°C range in Celsius mode, and from 0.3°F to 18.0°F in Fahrenheit mode. The factory default value is 0.5°C (0.9°F).

Size: 1 byte

Default: 5

Minimum: 2

Maximum: 100

Possible values

From	To	Desription
2	100	Hysteresis value for temperature control.

22 - AUTO BRIGHTNESS

Display auto-brightness control.

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Manual Control: display inactive state brightness will be set to the level defined by Parameter 23.
1	0	Automatic Brightness Control.

23 - MANUAL BRIGHTNESS

Display manual brightness level. The Display Brightness Level Parameter will take effect when Parameter 22 is set to Manual Control (value = 0). Note: The environment illumination is displayed in the TIME position and also can be checked at any time via a Z-Wave gateway.

Size: 1 byte

Default: 10

Minimum: 1

Maximum: 15

Possible values

From	To	Desription
1	15	The LCD brightness may be adjusted from 1 (lowest brightness) to 15 (highest brightest).

24 - TOUCH THRESHOLD

Touch buttons sensitivity. 5 = Highly sensitive. 50 = Lowest sensitivity. Note: Setting the sensitivity too high can lead to false touch detection. We recommend not changing this Parameter unless there is a need to do so.

Size: 1 byte

Default: 15

Minimum: 5

Maximum: 50

Possible values

From	To	Desription
5	50	Threshold to be adjusted from level 5 (very sensitive) to 50 (minimal sensitivity).

25 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

26 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

27 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

28 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

29 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

30 - BASIC SET MODE

Mode to switch to on Basic Set Action command receive. This Parameter defines which Operating Mode the HE-HT01 reverts to if the Basic Set command is received. If the Basic Set command value is 0 (OFF state) the HE-HT01 will go to Manual (MAN) mode and switch off the heating element (IDLE mode). If the Basic Set command is 1 or higher (ON state) the HE-HT01 will change the Mode to the corresponding selected Parameter value.

Size: 1 byte

Default: 1

Minimum: 1

Maximum: 6

Possible values

From	To	Desription
1	0	COM mode
2	0	TIME mode
3	0	DRY mode
4	0	ECO mode
5	0	VAC mode
6	0	MAN Mode with HEATING state

31 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

32 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

33 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

34 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

35 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

36 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

37 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

38 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

39 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

40 - RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.
1	0	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

41 - SENSORS REPORT TIME

Sensors consecutive reporting interval, minutes. When the device is connected to the Z-Wave gateway (controller), it periodically sends to the gateway reports from its room & floor temperature, humidity and light sensors even if there are not changes in the values. This Parameter defines the interval between consecutive reports. The value can be adjusted from 1 min to 120 min. Note: If the sensor readings change, the device will send the report to the gateway regardless of this parameter value. In order not to increase traffic on your network, it is not recommended to reduce the value of this parameter. We recommend to reduce the value of this parameter only in case of poor connection, when reports from the device does not always reach the gateway.

Size: 1 byte

Default: 10

Minimum: 1

Maximum: 120

Possible values

From	To	Desription
1	120	The value can be adjusted from 1 to 120 minutes

42 - CONSUMPTION REPORT TIME

Consumption meter consecutive reporting interval, minutes. This Parameter defines the interval between consecutive reports of real time and cumulative energy consumption data to the gateway. The value can be adjusted from 1 min to 120 min. The factory default value is 10 min. Note: If the sensor readings change, the device will send the report to the gateway regardless of this parameter value. In order not to increase traffic on your network, it is not recommended to reduce the value of this parameter.

Size: 1 byte

Default: 10

Minimum: 1

Maximum: 120

Possible values

From	To	Desription
1	120	The value can be adjusted from 1 to 120 minutes.

43 - TEMPERATURE THRESHOLD

Temperature difference to send to controller, value x10. This parameter determines the change in temperature level (in °C) resulting in temperature sensors report being sent to the gateway. The value of this parameter should be x10, e.g. for 0.4°C use value 40. From 0.5°C to 10°C can be selected. Use the value 0 if there is a need to stop sending the reports. The factory default value is 0.5°C (5).

Size: 1 byte

Default: 5

Minimum: 0

Maximum: 100

Possible values

From	To	Desription
0	0	Stop sending the reports
5	100	Temperature level (in °C)

44 - HUMIDITY THRESHOLD

Humidity difference to send to controller, %. This parameter determines the change in humidity level in % resulting in humidity sensors report being sent to the gateway. From 2% to 25% can be selected. Use the value 0 if there is a need to stop sending the reports. The factory default value is 2.

Size: 1 byte

Default: 2

Minimum: 0

Maximum: 25

Possible values

From	To	Desription
0	0	Stop sending the reports
2	25	Humidity level in %

45 - LIGHT THRESHOLD

Light sensor values difference to send to controller, %. This parameter determines the change in temperature level resulting in temperature sensors report being sent to the gateway. From 10% to 99% can be selected. Use the value 0 if there is a need to stop sending the reports. The factory default value is 50.

Size: 1 byte

Default: 50

Minimum: 0

Maximum: 99

Possible values

From	To	Desription
0	0	Stop sending the reports
10	99	Temperature level change in %

46 - MORNING START TIME

Morning start time. Format: HHMM. e.g.08:00 should be sent as 0800

Size: 2 bytes

Default: 600

Minimum: 0

Maximum: 2359

Possible values

From	To	Desription
0	2359	Morning start time. Format: HHMM (from 00:00 to 23:59)

47 - DAY START TIME

Day start time. Format: HHMM.

Size: 2 bytes

Default: 900

Minimum: 0

Maximum: 2359

Possible values

From	To	Desription
0	2359	Day start time. Format: HHMM (from 00:00 to 23:59)

48 - EVENING START TIME

Evening start time. Format: HHMM.

Size: 2 bytes

Default: 1800

Minimum: 0

Maximum: 2359

Possible values

From	To	Desription
0	2359	Evening start time. Format: HHMM (from 00:00 to 23:59)

49 - NIGHT START TIME

Night start time. Format: HHMM.

Size: 2 bytes

Default: 2300

Minimum: 0

Maximum: 2359

Possible values

From	To	Desription
0	2359	Night start time. Format: HHMM (from 00:00 to 23:59)

50 - MONDAY MORNING TEMP

Monday Morning temperature, valueX10

Size: 2 bytes

Default: 240

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Monday Morning temperature value

51 - MONDAY DAYTIME TEMP

Monday Day temperature, valueX10

Size: 2 bytes

Default: 200

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Monday Day temperature value

52 - MONDAY EVENING TEMP

Monday Evening temperature, valueX10

Size: 2 bytes

Default: 230

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Monday Evening temperature value

53 - MONDAY NIGHT TEMP

Monday Night temperature, valueX10

Size: 2 bytes

Default: 180

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Monday Night temperature value

54 - TUESDAY MORNING TEMP

Tuesday Morning temperature, valueX10

Size: 2 bytes

Default: 240

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Tuesday Morning temperature value

55 - TUESDAY DAYTIME TEMP

Tuesday Day temperature, valueX10

Size: 2 bytes

Default: 200

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Tuesday Day temperature value

56 - TUESDAY EVENING TEMP

Tuesday Evening temperature, valueX10

Size: 2 bytes

Default: 230

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Tuesday Evening temperature value

57 - TUESDAY NIGHT TEMP

Tuesday Night temperature, valueX10

Size: 2 bytes

Default: 180

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Tuesday Night temperature value

58 - WEDNESDAY MORNING TEMP

Wednesday Morning temperature, valueX10

Size: 2 bytes

Default: 240

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Wednesday Morning temperature value

59 - WEDNESDAY DAYTIME TEMP

Wednesday Day temperature, valueX10

Size: 2 bytes

Default: 200

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Wednesday Day temperature value

60 - WEDNESDAY EVENING TEMP

Wednesday Evening temperature, valueX10

Size: 2 bytes

Default: 230

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Wednesday Evening temperature value

61 - WEDNESDAY NIGHT TEMP

Wednesday Night temperature, valueX10

Size: 2 bytes

Default: 180

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Wednesday Night temperature value

62 - THURSDAY MORNING TEMP

Thursday Morning temperature, valueX10

Size: 2 bytes

Default: 240

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Thursday Morning temperature value

63 - THURSDAY DAYTIME TEMP

Thursday Day temperature, valueX10

Size: 2 bytes

Default: 200

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Thursday Day temperature value

64 - THURSDAY EVENING TEMP

Thursday Evening temperature, valueX10

Size: 2 bytes

Default: 230

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Thursday Evening temperature value

65 - THURSDAY NIGHT TEMP

Thursday Night temperature, valueX10

Size: 2 bytes

Default: 180

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Thursday Night temperature value

66 - FRIDAY MORNING TEMP

Friday Morning temperature, valueX10

Size: 2 bytes

Default: 240

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Friday Morning temperature value

67 - FRIDAY DAYTIME TEMP

Friday Day temperature, valueX10

Size: 2 bytes

Default: 200

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Friday Day temperature value

68 - FRIDAY EVENING TEMP

Friday Evening temperature, valueX10

Size: 2 bytes

Default: 230

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Friday Evening temperature value

69 - FRIDAY NIGHT TEMP

Friday Night temperature, valueX10

Size: 2 bytes

Default: 180

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Friday Night temperature value

70 - SATURDAY MORNING TEMP

Saturday Morning temperature, valueX10

Size: 2 bytes

Default: 240

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Saturday Morning temperature value

71 - SATURDAY DAYTIME TEMP

Saturday Day temperature, valueX10

Size: 2 bytes

Default: 200

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Saturday Day temperature value

72 - SATURDAY EVENING TEMP

Saturday Evening temperature, valueX10

Size: 2 bytes

Default: 230

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Saturday Evening temperature value

73 - SATURDAY NIGHT TEMP

Saturday Night temperature, valueX10

Size: 2 bytes

Default: 180

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Saturday Night temperature value

74 - SUNDAY MORNING TEMP

Sunday Morning temperature, valueX10

Size: 2 bytes

Default: 240

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Sunday Morning temperature value

75 - SUNDAY DAYTIME TEMP

Sunday Day temperature, valueX10

Size: 2 bytes

Default: 200

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Sunday Day temperature value

76 - SUNDAY EVENING TEMP

Sunday Evening temperature, valueX10

Size: 2 bytes

Default: 230

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Sunday Evening temperature value

77 - SUNDAY NIGHT TEMP

Sunday Night temperature, valueX10

Size: 2 bytes

Default: 180

Minimum: 40

Maximum: 370

Possible values

From	To	Desription
40	370	Sunday Night temperature value

Inclusion

To add HE-HT01 into a Z-Wave network (inclusion), do the following: 1. Enter “SETTINGS” Mode by pressing and holding the Gear button for three seconds. 2. Scroll menu to “Parameter 31 – nEt” using the Heating Element button to scroll up, and the “MODE” button to scroll down. 3. The current state of the network will display in the Parameter Value position (upper right). It should display “EcL”. Note: If “Inc” is displayed, the HE-HT01 must first be Excluded from an existing Z-Wave network (see “Exclusion” below). 4. Start the Inclusion Mode from the gateway/controller. 5. On the HE-HT01 in the Parameter 31 press the Plus “+” key to start the Inclusion process. 6. Note that lines will be moving in the Parameter value position (upper right). 7. The Antenna with signal strength bars icon should appear at the bottom right corner if Inclusion was successful. 8. If only the Antenna icon is displayed or “Err” is on Value position, the HE-HT01 Inclusion was not successful (try repeating steps 4-7).

Exclusion

To remove HE-HT01 from a Z-Wave network (exclusion), do the following: 1. Enter “SETTINGS” Mode by pressing and holding the Gear button for three seconds. 2. Scroll menu to “Parameter 31 – nEt” using the Heating Element button to scroll up, and the “MODE” button to scroll down. 3. The current state of the network will display in the Parameter Value position (upper right). It should display “InC”. Note: If “EcL” is displayed, the HE-HT01 is already Excluded. 4. Start the Exclusion Mode from the gateway/controller. 5. Press the Minus “–” button in the HE-HT01 Parameter 31 to start the Exclusion process 6. Note that lines will be moving in the Parameter value position (upper right). 7. The Antenna icon should appear in the bottom right corner and “EcL” in the value position if the Exclusion was successful. 8. If the Antenna with signal strength bars icon or “InC” in value position are displayed, repeat the Exclusion process.

Factory Reset

By pressing and holding the “MODE” key for ten seconds, the HE-HT01 will enter Factory Reset Mode, displaying “REs” in the left bottom corner, “y” in top left corner and “n” in top right corner. Press the Plus (+) button to revert to factory settings, or the Heating Element button to cancel. The factory reset will change all the Parameters to their original factory default values and will also Exclude the device from any Z-Wave network. Please use this procedure only when the network primary controller is missing or otherwise inoperable.

Where to find S2 DSK on product

The device DSK and QR code are printed on the HE-HT01 back panel plus on the manual included in the HE- HT01 packaging.

Loading related devices...
