Resideo
In-Wall Smart Dimmer
39458/ZW3010
Light Dimmer Switch
HW: 255 FW: 5.54
ZM5202
6.81.04
0x041B (1051)
0x4944 (18756)
0x3038 (12344)
ZC10-19126826
2019-12-20 11:23:28.240131
N/A
Enhanced 232 Slave
Always On Slave
In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements.
In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. All of this is coupled with Z-Wave S2 and Smart Start allows for effortless installation while being safer than ever!

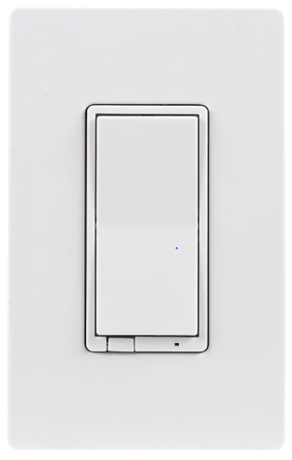

Product Image
3 - LED indication configuration
LED indication configurationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The device is ON, LED is OFF; the device is OFF, LED is ON |
| 1 | 1 | The device is ON, LED is ON; The device is OFF, LED is OFF |
| 2 | 2 | LED always OFF |
| 3 | 3 | LED always ON |
6 - Dim up/down rate
Dim up/down rateSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dim up/down the light to the specified level quickly by command except value 0 and FF |
| 1 | 1 | Dim up/down the light to the specified level slowly by command except value 0 and FF |
16 - Enable/disable switch mode
Enable/Disable Switch ModeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
19 - Alternate Exclusion
Alternate ExclusionSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Press any button on the Dimmer |
| 1 | 1 | Press ON two times and OFF two times, LED will flash 5 times if exclusion was successful |
30 - Minimum Dim Threshold
Minimum Dim LevelSize: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | 1% |
| 1 | 99 | 1%-99% |
31 - Maximum Brightness Threshold
Maximum Brightness levelSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | 1%-99% |
| 99 | 99 | 99% |
32 - Default Brightness Level
Default Brightness LevelSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Last State |
| 1 | 99 | 1%-99% |
This dimmer is SmartStart enabled. If your controller supports SmartStart inclusion, this dimmer can be added into the Z-Wave network by following the instructions for your controller or hub and scanning the Z-Wave QR Code on the front or on the package when instructed. No further action is required, and the dimmer will be added automatically within 10 minutes of being powered up while in range Z-Wave network.
Press on 2 times and off 2 times. LED will flash 5 times if exclusion was successful.
Quickly press ON button 3 times then immediately press the Off button 3 times. The LED will flash ON/OFF 5 times when completed successfully.
This dimmer is SmartStart enabled. If your controller supports SmartStart inclusion, this dimmer can be added into the Z-Wave network by following the instructions for your controller or hub and scanning the Z-Wave QR Code on the front or on the package when instructed. No further action is required, and the dimmer will be added automatically within 10 minutes of being powered up while in range Z-Wave network.
