Honeywell
In-Wall Smart Dimmer
39458/ZW3005
Light Dimmer Switch
HW: 255 FW: 5.26
ZM5202
6.51.08
0x0039 (57)
0x4944 (18756)
0x3038 (12344)
ZC10-19126823
2019-12-19 13:42:29.375851
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Honeywell In-Wall Smart Dimmer.
Transform any home into a smart home with the Honeywell In-Wall Smart Dimmer. The In-Wall Smart Dimmer can easily replace any standard in-wall switch and remotely controls a light in your home. Your home will be equipped with ultimate flexibility with the Honeywell Z-Wave Smart Dimmer, capable of being used by itself or with up to four add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The Honeywell Z-Wave In-Wall Smart Dimmer is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with Honeywell Z-Wave Smart Lighting Controls!

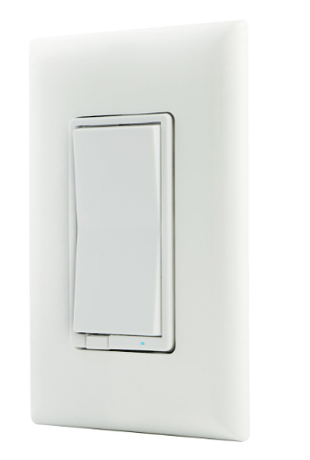

Product Image
3 - LED Light
When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2.Size: 1 byte
Default: 0
Minimum: -1
Maximum: -1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Default |
| 1 | 1 | LED ON when load is ON |
| 2 | 2 | LED always OFF |
4 - Invert Switch
If the switch is accidentally installed upside down with “On” at the bottom and “Off” at the top, the default On/Off rocker settings can be reversed by changing parameter 4’s value to “1”.Size: 1 byte
Default: 0
Minimum: -1
Maximum: -1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Default |
| 1 | 1 | Invert Switch |
7 - Dim Rate Adjustments
Dim Rate Adjustments when receiving Z-Wave dim commandSize: 1 byte
Default: 1
Minimum: -1
Maximum: -1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | number of steps or levels |
8 - Dim Rate Adjustments
Dim Rate Adjustments when receiving a Z-Wave dim commandSize: 2 bytes
Default: 3
Minimum: -1
Maximum: -1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | timing of steps |
9 - Dim Rate Adjustments
Dime Rate Adjustments when manually controlled dimmingSize: 1 byte
Default: 1
Minimum: -1
Maximum: -1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | number of steps or levels |
10 - Dim Rate Adjustments
Dim Rate Adjustments when manually controlling dimmingSize: 2 bytes
Default: 3
Minimum: -1
Maximum: -1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | timing of steps |
11 - Dim Rate Adjustments
Dim Rate Adjustments when receiving an All-On or All-Off commandSize: 1 byte
Default: 1
Minimum: -1
Maximum: -1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | number of steps or levels |
12 - Dim Rate Adjustments
Dime Rate Adjustments when receiving an All-On or All-Off commandSize: 2 bytes
Default: 3
Minimum: -1
Maximum: -1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | timing of steps |
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the top or bottom of the smart dimmer rocker). Repeat as necessary to add the dimmer to the network.
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the top or bottom of the smart dimmer (rocker) to remove it from the network.
Quickly press ON (top) button 3 times then immediately press the OFF (bottom) button 3 times. The LED will flash ON/OFF 5 times when completed successfully. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
