Simon
S100 Rocker for Dimmer (India)
10006020-13x
Light Dimmer Switch
HW: 1 FW: 4.24:78.59:70.48
ZM5202
6.51.07
0x0267 (615)
0x0007 (7)
0x0000 (0)
ZC10-20016848
2020-01-17 16:44:23.679576
N/A
Enhanced Slave
Always On Slave
Simon iO Dimmer is integrated by Electronic Dimmer and a Rocker, that provides Z-Wave communication attributes. The touch surface offers a slider area in order to adjust the light level showing the dimming intensity with 7 LEDs.
Simon iO Dimmer is integrated by Electronic Dimmer and a Rocker, that provides Z-Wave communication attributes. The touch surface offers a slider area in order to adjust the light level showing the dimming intensity with 7 LEDs . Simon iO Dimmer is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience.

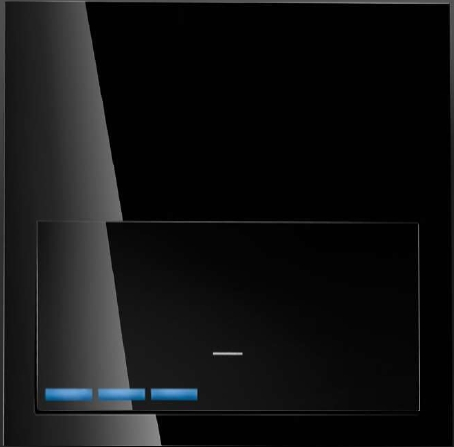

Product Image
1 - Association LED
Allows to turn ON or OFF the central LEDSize: 1 byte
Default: 0
Minimum: -128
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns the LED OFF |
| -128 | -128 | Turns the central LED ON |
4 - Set time
Sets the time it takes to turn on the light (ramp time)Size: 1 byte
Default: 0
Minimum: -128
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| -128 | -1 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
5 - Fade Time
Sets the time it takes to turn off the light (ramp time)Size: 1 byte
Default: 0
Minimum: -128
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| -128 | -1 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
6 - Min dimming value %
Sets the minimum dimming value in percentageSize: 1 byte
Default: 0
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Sets the minimum dimming value in percentage |
7 - Max dimming value
Sets the maximum dimming value in percentageSize: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Sets the maximum dimming value in percentage |
8 - Last on value
Returns or sets the last non zero dimming value. In case of Set, the device turns ON the loadSize: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Returns or sets the last non zero dimming value. |
9 - Calibration
Performs a device calibrationSize: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Device performs calibration using Trailing and leading Edge and decides which one is better. |
| 2 | 2 | Device is calibrated using Trailing Edge |
| 3 | 3 | Device is calibrated using Leading Edge |
10 - Delay On
Sets the delay time to turn on the lightSize: 1 byte
Default: 0
Minimum: -128
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| -128 | -1 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
11 - Activation Time
Sets the time the light stays onSize: 1 byte
Default: 0
Minimum: -128
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| -128 | -1 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
12 - behavior of LED in repose
Sets the central led illumination when the key is in repose stateSize: 1 byte
Default: 0
Minimum: -128
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED OFF |
| -128 | -128 | Central LED on at 20% of maximum level |
13 - Lock Input
Locks or Unlocks the direct control of the loadSize: 1 byte
Default: 0
Minimum: -128
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unlock the direct control of load. |
| -128 | -128 | Lock the direct control of the load |
15 - Reset default (write only)
Resets groups, Z-Wave status, and some or all configurations depending on the configuration value (write-only)Size: 2 bytes
Default: 0
Minimum: -26521
Maximum: 17170
Possible values
| From | To | Desription |
|---|---|---|
| -26521 | -26521 | Parameters, Groups, and Z-Wave status are restored to default. |
| 17170 | 17170 | Parameters, except Lock long press are restored to default |
16 - Delay OFF
Sets the delay time to turn off the lightSize: 1 byte
Default: 0
Minimum: -128
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| -128 | -1 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
19 - Press Action
Controls the behavior of the product when the key is pressedSize: 1 byte
Default: 5
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | when press t is less than 2sec device toggles the load. The Slider does not work |
| 1 | 1 | when press t is less than 2secc device turns ON the load. The Slider does not works |
| 2 | 2 | when press t is less than 2sec device turns OFF the load. The Slider does not works |
| 4 | 4 | when press t is less than 2sec device turns ON the load. when press time is between 2 and 10 seconds device turns OFF the load. The Slider does not works.With this configuration, the device will not send the Node Info neither Show the LEDs feedback with this press action. The Slider does not works. |
| 5 | 5 | (default value) when press t is less than 2sec device toggles the load. The Slider dims the load when it is ON. |
20 - Identify (write only)
Allows to identify a product using its central LED (write only)Size: 1 byte
Default: -128
Minimum: -128
Maximum: -128
Possible values
| From | To | Desription |
|---|---|---|
| -128 | -128 | Allows to identify a product using its central LED |
21 - State of charge (read only)
Reports the state of the charge (read only)Size: 2 bytes
Default: 0
Minimum: -20480
Maximum: -20125
Possible values
| From | To | Desription |
|---|---|---|
| -20480 | -20480 | Load is OFF |
| -20479 | -20479 | Load is ON |
| -20224 | -20125 | Last active dimming value |
23 - Calibration required (read only)
Reports if calibration is required or not (read only)Size: 1 byte
Default: 0
Minimum: -128
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Calibration is not required |
| -128 | -128 | It is necessary to calibrate the dimmer to work properly |
27 - Lock long press
Locks or unlocks the long press on the keySize: 1 byte
Default: 0
Minimum: -128
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | -128 | Hold Press from 2sec to 20 sec does not performs a Node info,Hold Press of 10 to 15 does not performs a automatic callibration,Hold press of 15 to 30 does not changes the sunblind or awing changes, Hold press of 30sec restores configuration except Lock Hold Press, and sends a Node info in order to add or remove from Z-Wave Network |
| 0 | 0 | Long press works as described previously |
Long key press between 2 and 10 seconds. Central LED blinks until release of Pushbutton
Long key press between 2 and 10 seconds. Central LED blinks until release of Pushbutton
Long press for more than 30 seconds. The central LED light up for 2.5 sec. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
