Simon
S100 IO Socket 16A (Mexico)
10002022-y3x
On/Off Power Switch
HW: 1 FW: 4.24:68.49
ZM5202
6.51.07
0x0267 (615)
0x0009 (9)
0x0000 (0)
ZC10-20016836
2020-01-13 11:16:40.965366
N/A
Enhanced Slave
Always On Slave
Simon Socket iO is a socket that allows increase the installation functions and features.
Socket iO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 iO APP using the HUB plug iO for getting a better user experience. allowing the control of the socket and LEDs integrated.

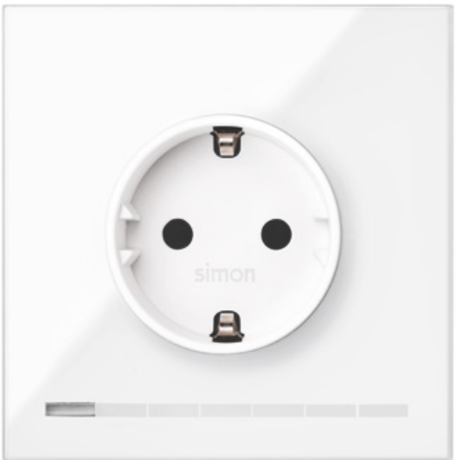

Product Image
1 - Central LED
Allows to turn ON or OFF the central LEDSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns the LED OFF |
| 255 | 255 | Turns the LED ON |
2 - Custom Consumption Limit
Allows to set a power consumption limit in WattsSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables custom consumption limit |
| 1 | 65535 | Sets the power in Watts that is supported |
3 - Beacon
Enables or disables the beacon functionSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables the beacon function |
| 1 | 99 | Sets the intensity of the beacon LEDs |
10 - On Timed
Sets the delay time to turn on the deviceSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables timing |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 254 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
11 - OFF Timed
Sets the time the device stays onSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables timing |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 254 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
13 - Load Lock
Locks or Unlocks the direct control of the loadSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Enables the push button to control the load |
| 255 | 255 | Disables the action of the push button of the load |
15 - Reset default
Resets groups, Z-Wave status, and some or all configurations depending on the configuration value (write only)Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 17170 | 17170 | Parameters, except Lock long press are restored to default |
| 39015 | 39015 | Parameters, Groups, and Z-Wave status are restored to default |
16 - Delayed OFF
Sets the delay time to turn off the deviceSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables timing |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 254 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
17 - Post Reset State
Controls the state of the load after a reset actionSize: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Restart with the relay disabled. |
| 255 | 255 | Recover the previous state. |
19 - Action when pressing
Controls the behavior of the product when the key is pressedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | When short press, device toggles the load |
| 1 | 1 | When short press, device turns ON the load |
| 2 | 2 | When short press, device turns OFF the load |
20 - Identify
Allows to identify a product using its central LED (write only)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | the central LED blinks for 5 seconds in order to identify the device |
21 - Charge status
Reports the state of the charge (read only)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 45056 | 45056 | Load is OFF |
| 45057 | 45057 | Load is ON |
| 45312 | 45312 | Load is OFF |
| 45567 | 45567 | Load is ON |
27 - Lock key press
Locks or unlocks the long press on the keySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Long press works as described previously |
| 255 | 255 | Long press from 2 seconds to 30 seconds does not send a Node info. With a long press above 30 seconds, all parameters except Lock long press are restored to default and device sends a Node info |
When the pushbutton is released after a press of (2sec<T<30sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (2sec<T<30sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters. Main LED will perform 1 Blink with 5 sec. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
