S100 Rocker for Roller Blind (Russia)
10004080-13x
Window Covering - Pos/End Aware
HW: 1 FW: 4.24:75.53:66.47
ZM5202
6.51.07
0x0267 (615)
0x0004 (4)
0x0000 (0)
ZC10-20016842
2020-01-14 17:54:12.962889
N/A
Enhanced Slave
Always On Slave
Simon Electronic Roller Blind iO is integrated by Electronic Roller Blind and a Rocker, that provides Z-Wave communication attributes. The touch area allows select which action is desired to act over the blind.
Roller Blind IO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience. Sending the Blind Up/Down or setting a specific position

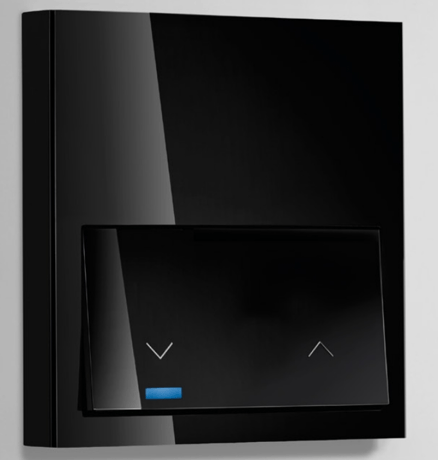

Product Image
1 - Association LED
Allows to turn ON or OFF the central LEDSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns the LED OFF |
| 255 | 0 | Turns the LED ON |
4 - UP Time
Sets time it takes to pull up the blind (ramp time)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 255 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
5 - DOWN Time
Sets time it takes to pull down the blind (ramp time)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 254 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
12 - Behavior of LED in repose
Sets the central led ilumination when the key is in repose stateSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED OFF |
| 255 | 255 | LED on at 20 percent of maximum level |
13 - Lock Input
Locks or Unlocks the direct control of the loadSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unlock the direct control of load. |
| 255 | 255 | Lock the direct control of load |
14 - Calibration
Performs a device calibrationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | Sunblind starts its callibration process |
15 - Reset Default
Resets groups, Z-Wave status, and some or all configurations depending on the configuration value (write only)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 17170 | 17170 | Parameters, except Lock long press are restored to default |
| 39015 | 39015 | Parameters, Groups, and Z-Wave status are restored to default |
20 - Identify
Allows to identify a product using its central LED (write only)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | The central LED blinks for 5 seconds in order to identify the device |
21 - Device state
Reports the actual state of the loadSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 45056 | 45056 | LED OFF |
| 45057 | 45057 | LED ON |
| 45312 | 45312 | LED OFF |
| 45567 | 45567 | LED ON |
23 - Calibration required
Reports if calibration is required or not (read only)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Calibration is not required |
| 255 | 255 | It is necessary to calibrate the curtain to work properly |
24 - Operating Mode
Changes operating mode between Windows shutter and SunblindSize: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Operating mode for Window Shutter |
| 255 | 255 | Operating Mode for SundBlinds |
27 - Lock long press
Locks or unlocks the long press on the keySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Long press works as described previously |
| 255 | 255 | Long press from 2 seconds to 20 seconds does not send a Node info. With a long press above 30 seconds, all parameters except Lock long press are restored to default and device sends a Node Info. |
When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton
When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters. Main LED will perform 1 Blink with 5 sec. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
When the pushbutton is released after a press of (10sec<T<15sec) the device will perform an automatic callibration of times of Up and Down. Left and Right LEDs will Blink with 0,3 sec period to inform that callibration is going to be performed. After release and during the callibration LED will Blink with 0,3 sec period to inform that callibration process is being performed. When the pushbutton is released after a press of (15sec<T<30sec) the device will change from blind and awning. The 3 LEDs will Blink with 0,3 sec period to inform that awing/sunblind function is being switched. If Roller blind is working as awing the system will invert the report values.
