TechniSat
Double-Switch
0x00/9498
On/Off Power Switch
HW: 6 FW: 2.00
ZM5101
6.82.00
0x0299 (665)
0x0003 (3)
0x1A91 (6801)
ZC10-20036884
2020-01-17 16:41:25.808573
N/A
Enhanced 232 Slave
Always On Slave
The smart wall mounted double switch is suitable for switching two separate light source within a Z-Wave network and can also be switched manually by hand.
Designed as a drop-in replacement for your double wall switch from leading brand manufacturers, TechniSat's Double-Switch integrates your wall switch into the Smart Home future. Featuring Z-Wave SmartStart and S2 security for easy installation and secure operation, your wall switch can now be controlled from your Smart Home as well. ● Full manual operation ● can trigger central scenes via multiple button clicks ● Short circuit and overload protection monitoring

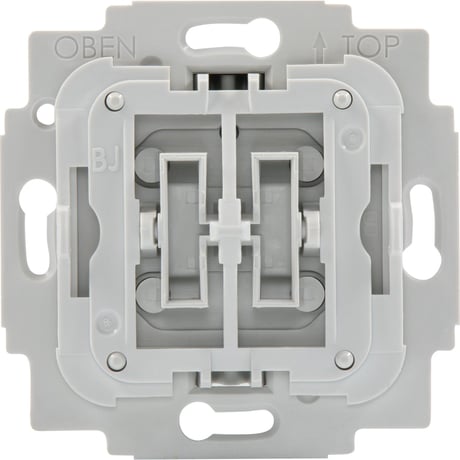

Product Image
1 - Parameter 1
Enable/disable central scene notifications for 2x-5x button pressesSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Setting this parameter to 0 will disable central scene notifications for multiple (2x-5x) button presses). |
| 1 | 1 | Setting this parameter to 1 will enable central scene notifications for multiple (2x-5x) button presses). |
2 - Parameter 2
Interval of current wattage meter reports in 10 seconds increments.Size: 2 bytes
Default: 3
Minimum: 0
Maximum: 8640
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable unsolicited meter reports of current wattage. |
| 3 | 8640 | Interval of unsolicited reports in 10s increments (30 seconds - 1 day) |
3 - Parameter 3
Interval of active energy meter reports in minutes.Size: 2 bytes
Default: 60
Minimum: 0
Maximum: 30240
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable unsolicited meter reports of active energy. |
| 10 | 30240 | Interval of unsolicited reports in minutes (10 minutes - 3 weeks) |
4 - Parameter 4
Operations mode for push buttons controlling the output.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | In this mode the top button will turn the output on, while the bottom button will turn the output off. |
| 1 | 1 | In this mode any button press will toggle the output - when on it will be turned off, when off it will be turned on. |
1. Install the TechniSat Double-Switch. 2. After checking the correct installation, re-enable electrical power at the main fuse or circuit breaker. 3. Start the Z-Wave device add mode on your Z-Wave gateway, according to the gateway‘s manual. 4. Press T1 3x within 1 second. 5. The red status LED is on while the device is added to the Z-Wave network. 6. The green LED is on for 5 seconds after successfully adding the device.
1. Start the Z-Wave device remove mode on your Z-Wave gateway, according to the gateway‘s manual. 2. Press and hold T1 for more than 10 seconds. 3. The red status LED is on while the device is removed from the Z-Wave network. 4. The green LED is on for 5 seconds after successfully removing the device.
Use this procedure only when the network primary controller is missing or otherwise inoperable. 1. Press and hold position T2 for more than 20 seconds. 2. The LED will alternately flash red and green for 5 seconds after a successful reset.
The Z-Wave QR-Code is located on the back of the product.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management |
|
| Meter type |
|---|
| Electric Meter Consumption |
