Climax Technology
Power Switch Series
PSS-29ZW
On/Off Power Switch
HW: 255 FW: 4.01
ZM5202
6.81.06
0x018E (398)
0x0004 (4)
0x0001 (1)
ZC10-20016845
2020-01-14 16:52:47.546027
N/A
Enhanced 232 Slave
Always On Slave
The Z-Wave-enabled Power Switches are capable of receiving wireless signals from the coordinator in the Z-Wave network to toggle On/Off of appliances that are attached to it.
The Power Switch also serves as a router in the Z-Wave network. After being included in the Z-Wave network, it allows other Z-Wave device to join the network through the Power Switch. The Z-Wave Power Switches allow access to the “S2 Unauthenticated” class and support Z-Wave SmartStart inclusion as well as classic inclusion.

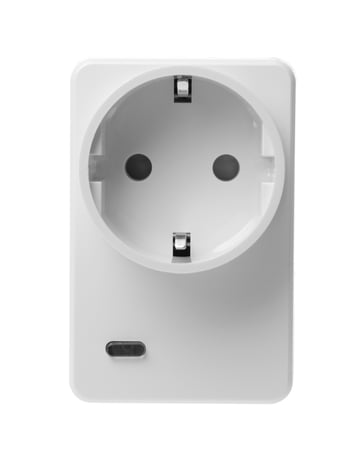

Product Image
Classic Inclusion 1. Plug the Power Switch into a power outlet. 2. Put the Z-Wave Gateway or Control Panel into Inclusion mode (please refer to the Z-Wave Gateway or Control Panel manual). 3. Within 1.5 seconds, press the Function Button 3 times. 4. Refer to the operation manual of the Z-Wave Gateway or Control Panel to complete the adding process. 5. If the device has already been added (included) into another Z-Wave Gateway/Control Panel, or if the device is unable to be added into the current Z-Wave Gateway/Control Panel, please exclude it first (see Removing Device) before attempting to include it into the current Z-Wave Gateway/Control Panel.
The device must be removed from existing Z-Wave network before being included into another. There are two methods available to exclude a device. Exclusion Mode 1. Put the Z-Wave Gateway or Control Panel into Exclusion mode (please refer to the Z-Wave Gateway or Control Panel manual). 2. Within 1.5 seconds, press the Function Button 3 times and the device will be removed from the Z-Wave network.
Factory Reset (Only use factory reset when network Control Panel/Gateway is missing or inoperable). #. Press and hold the Function Button of the device for 10 seconds to factory reset.
The DSK information is stored in the QR code format that is printed on a label and adhered to the front side of the device, as example shown on the right hand side.
| Type | Value(s) |
|---|
