Zooz
S2 MultiRelay
ZEN16
On/Off Power Switch
HW: 1 FW: 1.00
ZM5202
6.82.00
0x027A (634)
0xa000 (40960)
0xa00a (40970)
ZC10-20016854
2020-01-29 23:52:21.780895
N/A
Enhanced 232 Slave
Always On Slave
The MultiRelay comes with 3 powerful dry contact relays to allow simple automation of garage doors, gas fireplace, sprinklers, landscape lighting, pool pumps, and more.
PRODUCT FEATURES: - Powerful dry contact relays to control loads up to 15 A and 20 A - Perfect for outdoor lighting, pool pumps, garage door, or gas fireplace - Control up to 3 connected loads independently or together - Z-Wave or optional wall switch control (toggle or momentary type) - Built-in timers for each relay to simplify automation - Remembers and restores on/off status after power failure - Powered by 12-24 V DC/AC or USB C port for easy set-up - Wall mounting and minimal design for clean installation - S2 security protocol and the latest 500 Z-Wave chip SPECIFICATIONS: - Model Number: ZEN16 - Z-Wave Signal Frequency: 908.42 MHz - Power: 12-24 V DC/AC or USB C - Maximum Load: Relay 1: 15A (1/3 HP), Relay 2: 15A (1/3 HP),Relay 3: 20A (3/4 HP)

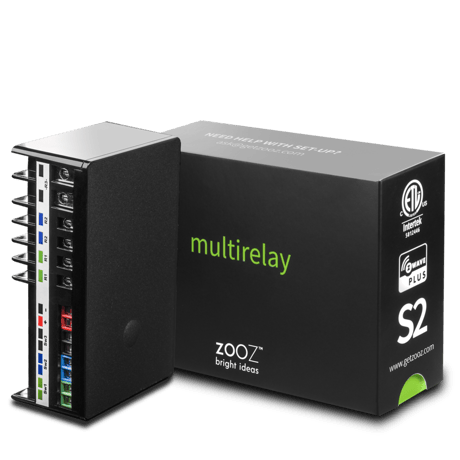

Product Image
1 - On Off Status After Power Failure
Set the on off status for the relays after power failure.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | ALL relays forced to OFF (regardless of state prior to power outage); |
| 1 | 1 | ALL relays remember and restore on/off status after power failure |
| 2 | 2 | ALL relays forced to ON (regardless of state prior to power outage); |
| 3 | 3 | Relay 1 and Relay 2 remember and restore on/off status after power failure, Relay 3 forced to OFF; |
| 4 | 4 | Relay 1 and Relay 2 remember and restore on/off status after power failure, Relay 3 forced to ON. |
2 - Switch Type for Relay 1 (Sw1)
Choose the wall switch type you want to connect to the Sw1 terminal.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | momentary switch |
| 1 | 1 | toggle switch (light on when the switch is toggled up, light off when the switch is toggled down); |
| 2 | 2 | toggle switch (state changes whenever the switch is toggled). |
3 - Switch Type for Relay 2 (Sw2)
Choose the wall switch type you want to connect to the Sw2 terminal.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | momentary switch |
| 1 | 1 | toggle switch (light on when the switch is toggled up, light off when the switch is toggled down); |
| 2 | 2 | toggle switch (state changes whenever the switch is toggled) |
4 - Switch Type for Relay 3 (Sw3)
Choose the wall switch type you want to connect to the Sw3 terminal.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | momentary switch |
| 1 | 1 | toggle switch (light on when the switch is toggled up, light off when the switch is toggled down) |
| 2 | 2 | toggle switch (state changes whenever the switch is toggled) |
5 - LED Indicator Control
Choose if you want the LED indicator to turn on when any of the relays are on or if all of them are off, or if you want it to remain on or off at all times.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED indicator is on when ALL of the relays are off, LED indicator is off when any of the relays is on (default); |
| 1 | 1 | LED indicator is on when any of the relays is on, LED indicator is off when ALL of the relays are off |
| 2 | 2 | LED indicator is always OFF |
| 3 | 3 | LED indicator is always ON. |
6 - Auto Turn-Off Timer for Relay 1
Use this parameter to set the time aer which you want the device connected to Relay 1 to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 65535 | minutes |
7 - Auto Turn-On Timer for Relay 1
Use this parameter to set the time aer which you want the device connected to Relay 1 to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 65535 | minutes |
8 - Auto Turn-Off Timer for Relay 2
Use this parameter to set the time aer which you want the device connected to Relay 2 to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 65535 | minutes |
9 - Auto Turn-On Timer for Relay 2
Use this parameter to set the time aer which you want the device connected to Relay 2 to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 65535 | minutes |
10 - Auto Turn-Off Timer for Relay 3
Use this parameter to set the time aer which you want the device connected to Relay 3 to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 65535 | minutes |
11 - Auto Turn-On Timer for Relay 3
Use this parameter to set the time aer which you want the device connected to Relay 3 to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 65535 | minutes |
12 - Enable/Disable Manual Control for Sw1
Enable or disable physical on/off control of Relay 1 from the wall switch connected to Sw1 terminal. If disabled, you’ll only be able to control the connected device via Z-Wave.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | local control disabled |
| 1 | 1 | local control enabled |
13 - Enable/Disable Manual Control for Sw2
Enable or disable physical on/off control of Relay 2 from the wall switch connected to Sw2 terminal. If disabled, you’ll only be able to control the connected device via Z-Wave.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | local control disabled |
| 1 | 1 | local control enabled |
14 - Enable/Disable Manual Control for Sw3
Enable or disable physical on/off control of Relay 3 from the wall switch connected to Sw3 terminal. If disabled, you’ll only be able to control the connected device via Z-Wave.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | local control disabled |
| 1 | 1 | local control enabled |
Initiate inclusion (pairing) in the app (or web interface). Click the Z-Wave button 3 times quickly to add the MultiRelay to your network. The LED indicator will blink to signal communication and remain on for 2 seconds to confirm inclusion.
1. Bring your MultiRelay close to the Z-Wave gateway (hub) and power it 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]) 3. Click the Z-Wave button 3 times quickly 4. Your hub will confirm exclusion and the MultiRelay will disappear from your controller's device list
To complete the reset process manually, click the Z-Wave button 4 times quickly, the LED indicator will light up, then quickly click the Z-Wave button 4 times again. The LED indicator will flash 3 times to confirm successful reset and will then turn off.
