QUBINO
Mini Dimmer
ZMNHHD3
Light Dimmer Switch
HW: 2 FW: 20.00:20.00
ZM5101
6.71.03
0x0159 (345)
0x0001 (1)
0x0055 (85)
ZC10-20086956
2020-08-05 11:38:55.259872
N/A
Enhanced 232 Slave
Always On Slave
Qubino Mini Dimmer enables you to set scenarios or remotely control and dim all types of dimmable bulbs from your smartphone.
Qubino Mini Dimmer enables you to remotely control and dim all types of dimmable bulbs. It perfectly works on both the 2-wire system - (without neutral) and in a 3-wire system (with neutral). Its small size allows easy installation for professional installers and DIY users. With Mini Dimmer, you can connect and remotely control low wattage bulbs. There is no minimum load power required.

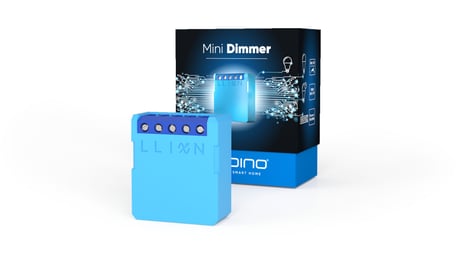

Product Image

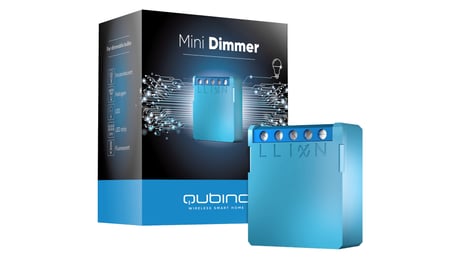

Qubino Mini Dimmer with packaging 2

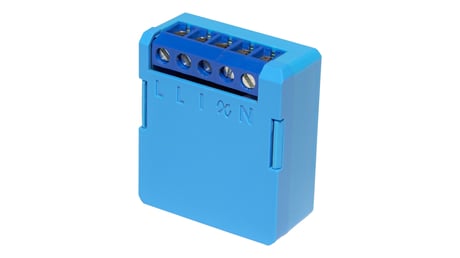

Qubino Mini Dimmer with packaging
1 - Parameter no. 1 – In-wall Switch Type for Load ( ) to control terminal I
With this parameter, you can select between momentary and on/off toggle switch types. Values (size is 1-byte dec): • default value 0 • 0 - momentary • 1 - on/off toggle switchSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | momentary |
| 1 | 1 | on/off toggle switch |
5 - Parameter no. 5 – Working mode
With this parameter, you can change the device presentation on the user interface. Values (size is 1-byte dec): • default value 0 • 0 - Dimmer mode • 1 - Switch mode ⓘ NOTE: After parameter change, first exclude the device (without setting parameters to default value) then wait at least 30s before reinclusion.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dimmer mode |
| 1 | 1 | Switch mode |
11 - Parameter no. 11 - Turn Load 1 ( ) Off Automatically with Timer
If Load ( ) is ON, you can schedule it to turn OFF automatically after a period of time defined in this parameter. The timer is reset to zero each time the device receives an ON or OFF command, either remotely (from the gateway (hub) or associated device) or locally from the switch. Values (size is 2-byte dec): • default value 0 • 0 - Auto OFF Disabled • 1 - 32536 = 1 - 32536 seconds - Auto OFF timer enabled for a given number of seconds.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 32536
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto OFF Disabled |
| 1 | 32536 | Auto OFF timer enabled for a given number of seconds |
12 - Parameter no. 12 - Turn Load 1 ( ) On Automatically with Timer
If Load ( ) is OFF, you can schedule it to turn ON automatically after a period of time defined in this parameter. The timer is reset to zero each time the device receives an OFF or ON command, either remotely (from the gateway (hub) or associated device) or locally from the switch. Values (size is 2-byte dec): • default value 0 • 0 - Auto ON Disabled • 1 - 32536 = 1 - 32536 seconds - Auto ON timer enabled for a given amount of secondsSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 32536
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto ON Disabled |
| 1 | 32536 | Auto ON timer enabled for a given amount of seconds |
21 - Parameter no. 21 - Enable/Disable the Double click function
If the Double click function is enabled, a fast double click on the push-button will set the dimming level to the maximum dimming value. Values (size is 1-byte dec): • default value 0 • 0 - double click disabled • 1 - double click enabledSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | double click disabled |
| 1 | 1 | double click enabled |
30 - Parameter no. 30 - Restore on/off status for load after power failure
This parameter determines if on/off status is saved and restored for the load after power failure. Values (size is 1-byte dec): • default value 0 • 0 - Device saves last on/off status and restores it after a power failure. • 1 - Device does not save on/off status and does not restore it after a power failure, it remains off.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Device saves last on/off status and restores it after a power failure. |
| 1 | 1 | Device does not save on/off status and does not restore it after a power failure, it remains off. |
40 - Parameter no. 40 – Watt Power Consumption Reporting Threshold for Load
Choose by how much the power consumption needs to increase or decrease to be reported. Values correspond to percentages so if 10 is set (by default), the device will report any power consumption changes of 10% or more compared to the last reading. Values (size is 1-byte dec): • default value 10 • 0 - Power consumption reporting disabled • 1 - 100 = 1 % - 100 % Power consumption reporting enabled. New value is reported only when Wattage in real time changes by more than the percentage value set in this parameter compared to the previous Wattage reading, starting at 1 % (the lowest value possible). ⓘ NOTE: The power consumption needs to increase or decrease by at least 2 Watts to be reported, regardless of percentage set in this parameter.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power consumption reporting disabled |
| 1 | 100 | = 1 % - 100 % Power consumption reporting enabled. New value is reported only when Wattage in real time changes by more than the percentage value set in this parameter compared to the previous Wattage reading, starting at 1 % (the lowest value possible). |
42 - Parameter no. 42 – Watt Power Consumption Reporting Time Threshold for Load
Set value refers to the time interval with which power consumption in Watts is reported (0 – 32767 seconds). If 300 is entered, energy consumption reports will be sent to the gateway (hub) every 300 seconds (or 5 minutes) if there was a change compared from the last report. Values (size is 2-byte dec): • default value 0 • 0 - Power consumption reporting on time interval disabled • 30 - 32767= 30 – 32767 seconds. Power consumption reporting enabled. Report is sent according to time interval (value) set here. ⓘNOTE: Values from 1 to 29 are ignored by device due to standard recommendation. ⓘNOTE: The report will be send only if there was a change compared to the last report.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power consumption reporting on time interval disabled |
| 30 | 32767 | 30 – 32767 seconds. Power consumption reporting enabled. Report is sent according to time interval (value) set here. |
60 - Parameter no. 60 – Minimum dimming value
The value set in this parameter determines the minimum dimming value (the lowest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)). Values (size is 1-byte dec): • default value 0 = 0 % (minimum dimming value) • 1- 98 = 1 % - 98 %, step is 1 %. Minimum dimming value is set by entering a value. ⓘ NOTE: The minimum level may not be higher than the maximum level! 0 % min. dimming value is defined by the Z-Wave multilevel device class.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 98
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 % (minimum dimming value) |
| 1 | 98 | 1 % - 98 %, step is 1 %. Minimum dimming value is set by entering a value. |
61 - Parameter no. 61 – Maximum dimming value
The value set in this parameter determines the maximum dimming value (the highest value which can be set on the device, when, for example, dimming lights with wall switch or slider in the GUI (Gateway - hub)). Values (size is 1-byte dec): • default value 99 = 99 % (Maximum dimming value) • 2- 99 = 2 % - 99 %, step is 1 %. Maximum dimming value is set by entering a value. ⓘ NOTE: The maximum level may not be lower than the minimum level! 99% max. dimming value is defined by the Z-Wave multilevel device class.Size: 1 byte
Default: 99
Minimum: 2
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 99 | 99 | 99 % (Maximum dimming value) |
| 2 | 99 | 2 % - 99 %, step is 1 %. Maximum dimming value is set by entering a value. |
65 - Parameter no. 65 – Dimming time when key pressed (soft on/off)
Choose the time during which the device will move between the min. and max. dimming values by a short press of the push-button I1. Values (size is 1-byte dec): • default value 1 = 1 s • 1 - 127 = 1 seconds- 127 seconds, step is 1 secondSize: 1 byte
Default: 1
Minimum: 1
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | 1 s |
| 1 | 127 | 1 seconds- 127 seconds, step is 1 second |
66 - Parameter no. 66 – Dimming time when key hold
Choose the time during which the Dimmer will move between the min. and max. dimming values during a continuous press of the push-button I1, by an associated device or through the UI controls (BasicSet, SwitchMultilevelSet). Values (size is 2-byte dec): • default value 3 = 3 s • 1-127 = 1 second – 127 seconds • 128 – 253 = 1 minute – 126 minutesSize: 2 bytes
Default: 3
Minimum: 1
Maximum: 253
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | 1 second – 127 seconds |
| 128 | 253 | 1 minute – 126 minutes |
67 - Parameter no. 67 – Ignore start level
Choose whether the device should use (or disregard) the start dimming level value. If the device is configured to use the start level, it should start the dimming process from the currently set dimming level. This parameter is used with association group 3. Values (size is 1-byte dec): • default value 0 • 0 – use the start level value • 1 - ignore the start level value ⓘ NOTE: Parameter is valid only in Dimmer mode. In Switch mode the parameter has no effect.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | use the start level value |
| 1 | 1 | ignore the start level value |
68 - Parameter no. 68 – Dimming duration
Choose the time during which the device will transition from the current value to the new target value. This parameter applies to the association group 3. Values (size is 1-byte dec): • default value 0 (dimming duration according to parameter 66) • 1 - 127 (from 1 to 127 seconds) ⓘ NOTE: Parameter is valid only in Dimmer mode. In Switch mode the parameter has no effect.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | (dimming duration according to parameter 66) |
| 1 | 127 | (from 1 to 127 seconds) ⓘ NOTE: Parameter is valid only in Dimmer mode. In Switch mode the parameter has no effect. |
70 - Parameter no. 70 - Overload safety switch
The function allows for turning off the controlled device in case of exceeding the defined power for more than 5s. Controlled device can be turned back on by input I1 or sending a control frame. Values (size is 2-byte dec): • default value 200 • 1 – 200 = 1 W – 200 W • 0 = function not active ⓘ NOTE: This functionality is not an overload safety protection, please check the technical specifications chapter for more details. In case of overload the following message will be send towards the controller: • COMMAND_CLASS_NOTIFICATION_V5 • The Alarm V1 type field set to 0x00 • Notification Type 0x08 and 0x08 (Overload detected)Size: 2 bytes
Default: 200
Minimum: 0
Maximum: 200
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 200 | 1 W – 200 W |
| 0 | 0 | function not active |
71 - Parameter no. 71 – Calibration trigger
Choose when will be the calibration procedure triggered. Values (size is 1-byte dec): • default value 0 - calibration done after power cycle if module is excluded • 1 – calibration done after power cycle regardless of inclusion status • 2 – force calibration. Calibration will start immediately NOTE: For additional information check ‘MINI DIMMER CALIBRATION’ under chapter 11.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | calibration done after power cycle if module is excluded |
| 1 | 1 | calibration done after power cycle regardless of inclusion status |
| 2 | 2 | force calibration. Calibration will start immediately |
72 - Parameter no. 72 – Calibration status (read only)
Parameter no. 72 – Calibration status (read only) Whit this parameter you can check the calibration status. Values (size is 1-byte dec): • default value 2 – calibration failed • 1 – calibration was successful • 2 – calibration failedSize: 1 byte
Default: 2
Minimum: 1
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | calibration was successful |
| 2 | 2 | calibration failed |
73 - Parameter no. 73 – Alarm/Notification events
This parameter defines the module behaviour in case it receives any Alarm/Notification events. Values (size is 1-byte dec): • default value 0 – function not active • 1 – turn ON • 2 – turn OFF • 3 – start blinking (output turns 1 s ON, and 1 s OFF) ⓘ NOTE: When value 3 is selected the default time interval of the blinking is 10 minutes. It can be stopped with a button press or sending a control frame. To adjust the time interval please refer to parameter 74 – Alarm/Notification time interval.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | default value 0 – function not active |
| 1 | 1 | turn ON |
| 2 | 2 | turn OFF |
| 3 | 3 | start blinking (output turns 1 s ON, and 1 s OFF) |
74 - Parameter no. 74 – Alarm/Notification time interval (dependant on parameter 73)
This parameter defines the time interval of the blinking state, once the module receives an alarm/notification event. Minimum step increase is 1 minute. Values (size is 1-byte dec): • default value 10 = 10 minutes • 1 – 125 = 1 -125 minutes ⓘ NOTE: This parameter does not have any effect if parameter 73 is not set to value 3.Size: 1 byte
Default: 10
Minimum: 1
Maximum: 125
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 10 | 10 minutes |
| 1 | 125 | 1 -125 minutes |
MANUAL INCLUSION 1. Enable add/remove mode on your Z-Wave gateway (hub) 2. Connect the device to the power supply 3. Toggle the switch connected to the terminal I 3 times within 3 seconds. The device has to get On/Off signal 3 times, meaning 3 times push of the button or with the normal button 3 times On and 3 times Off. OR If the device is powered by 24 Vdc SELV supply, press and hold the S (Service) button for at least 2 seconds 3. A new dimming device (multilevel switch) will appear on your dashboard 4. Inclusion with the switch connected to terminal I is not limited by time
Z-WAVE EXCLUSION 1. Connect the device to the power supply 2. Make sure the device is within direct range of your Z-Wave gateway (hub) or use a hand-held Z-Wave remote to perform exclusion 3. Enable exclusion mode on your Z-Wave gateway (hub) 4. Toggle the switch connected to terminal I 3 times within 3 seconds. The device has to get On/Off signal 3 times, meaning 3 times push of the button or with the normal button 3 times On and 3 times Off. OR If the device is powered by 24 Vdc SELV supply, press and hold the S (Service) button for 2 to 6 seconds 5. Exclusion with the switch connected to terminal I is not limited by time 6. The device will be excluded from your network but any custom configuration parameters will not be erased.
FACTORY RESET 1. Connect the device to the power supply 2. Within the first minute the device is connected to the power supply, toggle the switch connected to the terminal I 5 times within 3 seconds OR If the device is powered by 24 Vdc SELV supply, press and hold the S (Service) button for at least 6 seconds
The description can be found under the section Z-Wave inclusion. Note: In case of S2 Security inclusion a dialog will appear prompting you to enter the corresponding PIN number (5 underlined digits) that are written on the module label and the label inserted in the packaging (check the example picture). IMPORTANT: The PIN code must not be lost
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | Over-load status: Over-load detected |
| Meter type |
|---|
| Electric Meter Consumption |
