Aeotec
Aeotec Radiator Thermostat
4251295701387.0
Thermostat - HVAC
HW: 49 FW: 0.16:00.10
ZM5202
6.71.01
0x0371 (881)
0x0002 (2)
0x0016 (22)
ZC10-20076945
2020-07-15 12:40:22.174419
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Smart Radiator Thermostat for the installation on heating panels. Measures the room temperature and regulates it to the desired temperature.
With the Aeotec Radiator Thermostat you get many functions. It regulates the room temperature to your comfort. For the best use it is equipped with FLiRS (Frequently Listening Receiver Slave) and reacts immediately to incoming commands of the Z-Wave controller. Furthermore the device is able to be connected to an external Z-Wave temperature sensor. Because of that the thermostat refers to the temperature of the external sensor, which can be placed in the middle of the room. The display of the thermostat has a background light and has a big LCD screen. Besides you can also lock the local buttons as a child protection. The multicolor LED of the central button allows a intuitive usability because the User is invited to follow the instruction based on the blinking LED of the middle butto. The TRV can either be used as heating thermostat or as a actuator depending on the configuration of the device. The measured temperature or the position of the actuator of the thermostat are transfered to the Z-Wave gateway.

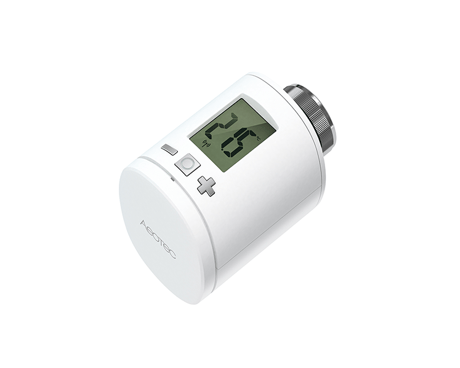

Product Image
1 - LCD invert
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Normal orientation |
| 1 | 1 | LCD content inverted |
2 - LCD Timeout
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 30
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LCD always on |
| 5 | 30 | LCD timeout in seconds |
3 - Backlight
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Backlight disabled |
| 1 | 1 | Backlight enabled |
4 - Battery report
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Battery reporting disabled |
| 1 | 1 | Battery reporting enabled |
5 - Measured temperature report
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled |
| 1 | 50 | Reporting Delta in 1/10 Celcius |
6 - Valve percentage report
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled |
| 1 | 100 | Reporting Delta in percent |
7 - Window open detection
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Detection disabled |
| 1 | 3 | Sensitivity level |
8 - Measured temperature offset
Size: 1 byte
Default: 0
Minimum: -128
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| -128 | -128 | Temperature is supplied externaly |
| -50 | 50 | Offset in 1/10 Celcius |
Start the Inclusion mode of your primary Z-Wave Controller. Press the Boost-Button of the Thermoast. The Radiator thermostat will show the assigned NodeID.
Set your Z-Wave primary Controller into exclusion mode. Press and hold the Boost button for 5 seconds. The LCD screen of the sensor will show "LEA". Leave the Radiator thermostat as it is until the multicolor LED will light up green and the LCD screen will show "0". If the exclusion failed, the screen will show the failed code "18".
This device is a FLIRS device. There is no procedure to wake up the device, because it will receive commands immediately and is always listening.
Remove batteries. Press and hold boost button. While still holding boost button insert batteries. The LCD shows RES. Release boost button. To perform the factory reset press boost button.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
