Philio
Flood Multisensor
PAT02-A
Notification Sensor
HW: 1 FW: 1.01:01.14
SD3502
6.81.03
0x013C (316)
0x0002 (2)
0x0078 (120)
ZC10-20026862
2020-02-10 18:42:07.846273
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
The flood multisensor PAT02 has flood, temperature and humidity, 3 sensors function in one, based on Z-Wave TM technology.
This product can be included and operated in any Z-Wave TM network with other Z-Wave TM certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

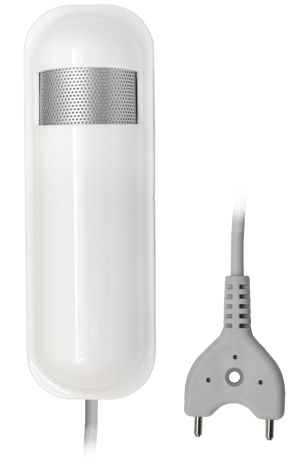

Product Image
1 - Basic Set OFF Level
Setting the BASIC command value. When the flood trigger off(0x00), send the BASIC CC to the group 2.Size: 1 byte
Default: 0
Minimum: -127
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| -127 | 127 | Setting the BASIC command value. |
2 - Basic Set ON Level
Setting the BASIC command value. When the flood trigger on(0xFF), send the BASIC CC to the group 2.Size: 1 byte
Default: -1
Minimum: -127
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| -127 | 127 | Setting the BASIC command value. |
5 - Operation Mode
Operation mode. Using bit to control.Size: 1 byte
Default: 0
Minimum: -127
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Disable the Flood function. |
| 8 | 8 | Setting the temperature scale. |
| 32 | 32 | Disable the temperature report after event triggered. |
6 - Mult-Sensor Function Switch
Multisensor function switch. Using bit to control.Size: 1 byte
Default: 0
Minimum: -127
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 64 | 64 | Disable the humidity report after event triggered. |
7 - Customer Function
Customer function switch, using bit control.Size: 1 byte
Default: 0
Minimum: -127
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 8 | 8 | Disable send out BASIC OFF after the flood event cleared. |
| 64 | 64 | Disable to report battery state when the device triggered. |
10 - Auto Report Battery Time
The interval time for auto report the battery level.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The tick time can setting by the configuration No.20. |
13 - Auto Report Temperature Time
The interval time for auto report the temperature.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The tick time can setting by the configuration No.20. |
14 - Auto Report Humidity Time
The interval time for auto report the humidity.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The tick time can setting by the configuration No.20. |
15 - Auto Report Flood Time
The interval time for auto report the flood state.Size: 1 byte
Default: 12
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The tick time can setting by the configuration No.20. |
20 - Auto Report Tick Interval
The interval time for auto report each tick.Size: 1 byte
Default: 30
Minimum: -127
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| -127 | 127 | Units of one minute. |
21 - Temperature Differential Report
The temperature differential to report.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | The unit is Fahrenheit. |
23 - Humidity Differential Report
The humidity differential to report.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 60 | The unit is percentage. |
1. Have Z-WaveTM Controller entered inclusion mode. 2. Pressing the tamper key three times within 1.5 seconds to enter the inclusion mode. 3. After add successful, the device will wake to receive the setting command from Z-WaveTM Controller about 20 seconds.
1. Have Z-WaveTM Controller entered exclusion mode. 2. Pressing tamper key three times within 1.5 seconds to enter the exclusion mode. Node ID has been excluded.
When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy.
1. Pressing tamper key four times within 1.5 seconds and do not release the tamper key in the 4th pressed, and the LED will light ON. 2. After 3 seconds the LED will turn OFF, after that within 2 seconds, release the tamper key. If successful, the LED will light ON one second. Otherwise, the LED will flash once. 3. IDs are excluded and all settings will reset to factory default.
The QR code can be found on the device PAT02 or in the box.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Water Alarm | Sensor status: Water leak detected |
| Sensor type |
|---|
| Air Temperature |
| Humidity |
