LUMI
1 Gang Touch Panel Switch
LM-S1ZW
Binary Switch
HW: 1 FW: 1.00
ZGM130
7.12.1
0x0436 (1078)
0x0004 (4)
0x5001 (20481)
ZC12-20020033
2020-02-24 12:12:43.051804
N/A
Enhanced 232 Slave
Always On Slave
The Lumi 1 Touch Switch is a perfect replacement for your conventional single-channel relay switch used to turn devices on or off.
The Lumi 1 touch switch LM-S1ZW supports 1 output. With a simple design compounded by tempered glass and capacitive touch, Lumi's devices will make your home become more elegant, modern and luxurious.

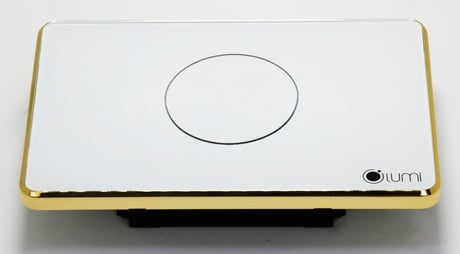

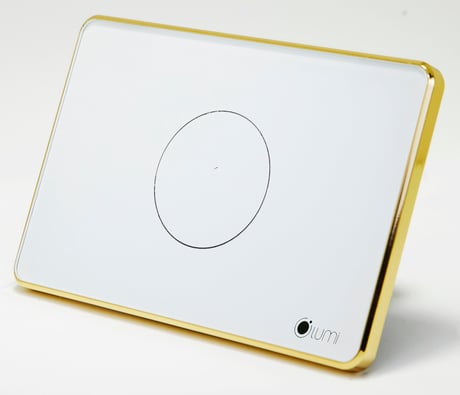

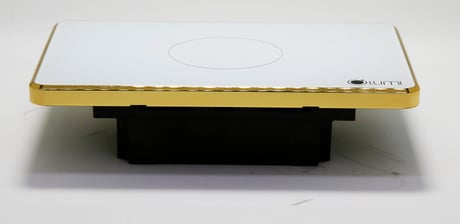

Product Image
1. Put the controller into ADD device mode. Follow the instructions provided by the controller manufacturer. 2. Touch and hold any key on the panel for more than 5 seconds. All indication lights will blinks in blue. At this point release the key, the touch panel will start inclusion process.
1. Put the controller into REMOVE device mode. Follow the instructions provided by the controller manufacturer. 2. Touch and hold any key on the panel for more than 5 seconds. All indication lights will blinks blue in color. At this point release the key, the touch panel will start exclusion process.
Press the config button 5 times, Indication LEDs lights will blinks red in color, touch panel will start local reset. Touch panel switch will erase network inclusion state after local reset.
- QR code with Pin code on the backside of the product - QR code with DSK string on the product box
