ECO-DIM.07 Z-Wave LED dimmer
ECO-DIM.07 Z-Wave
Light Dimmer Switch
HW: 1 FW: 1.17
ZM5101
6.81.03
0x0431 (1073)
0x0202 (514)
0x0001 (1)
ZC10-20036885
2020-03-12 12:14:05.840461
N/A
Enhanced 232 Slave
Always On Slave
ECO-DIM.07 Z-Wave is a push/rotary dimmer for LED Lights. 0-200W LED, Minimum and maximum light level adjustable. All well known brands coverplates are usable.
ECO-DIM.07 Z-Wave is a push/rotary dimmer for LED lights. The dimmer has a range of 0-200W LED, and is able to dim 230V halogen and incandescent bulds, dimable LED-drivers and electronic transfomers. The minimum and maximum light level of the dimmer can be adjusted via a potentiometer. It is protected against overload and interference signals. Installation can be done via 2 wires, there is no need for a neutral wire! It is suitable for most popular smarthome systems, and the frame systems of the most popular brands can be used: Busch-Jaeger, Merten by Schneider, Berker by Hager, Niko, Gira, Jung and Peha. The dimmer is compatible with 95% of all dimmable LED lights.

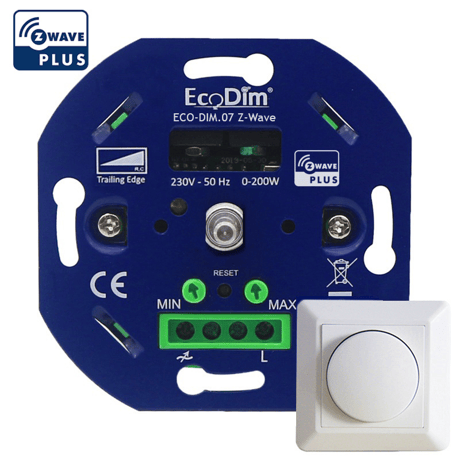

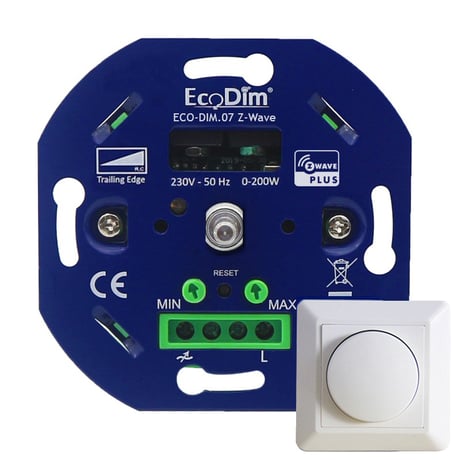

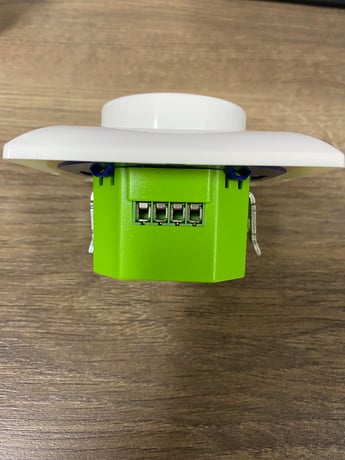

Product Image

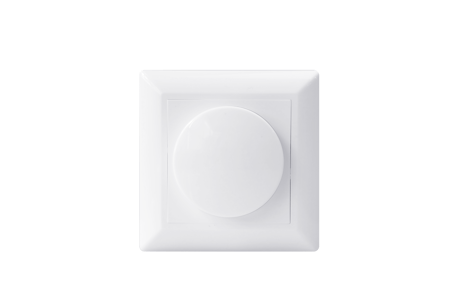

ECO-DIM.07 with coverplate
ECO-DIM.07 Z-Wave Logo
1 - State After Power Restored
The state the switch should return once power is restored after power failureSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | On |
| 2 | 2 | Returns to level before power usage |
2 - Notification when Load status change
The dimmer will send notification to associated device (Group lifeline) when the status of the Dimmer load is changedSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled |
| 1 | 1 | Send Switch Multilevel Report |
| 2 | 2 | Send Switch Multilevel Report only when Load status is not changed by Z-Wave command |
Product Classic Inclusion Description 1. Set primary controller/gateway into inclusion mode (If you don’t know how to do this, please refer to your primary controller’s manual on how to turn your controller into inclusion mode). 2. Short press 2 times the reset button, it will set the dimmer controller into inclusion mode.25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be added to the Z-Wave network.
1. Set primary controller/gateway into exclusion mode (If you don’t know how to do this, please refer to your primary controller’s manual on how to turn your controller into exclusion mode). 2. Short press 2 times the reset button, it will set the dimmer controller into exclusion mode (The dimmer controller already exists a Z-Wave network). 25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be removed from the Z-Wave network. Note: The Dimmer will start SmartStart Inclusion when it is removed from a Z-wave network.
Press and hold down reset button for over 4 seconds, the dimmer controller will be reset to factory defaults. Note: This procedure should only be used when the primary controller is inoperable. Reset Dimmer controller to factory default settings will sets the Dimmer to not in z-wave network state, delete the Association setting and restore the Configuration setting to the default. The Dimmer controller will start SmartStart Inclusion when it is reset.
You can scan the QR code with an android Phone. For example, the QR code may be scanned by the application provided with your SmartStart compatible Z-Wave controller. (The data for each dimmer is different). Note: If your controller does not support SmartStart inclusion, please refer to the manual for your controller for non-SmartStart inclusion.
