Staybinder powered by KeyWe
Staybinder Smart Door Lock
GKBC-3100Z
Door Lock - Keypad
HW: 1 FW: 1.00:01.00
ZM5101
6.71.01
0x037B (891)
0x0006 (6)
0x0001 (1)
ZC10-20026870
2020-02-26 13:24:56.275111
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Smart lock that can be used conveniently with Z-Wave and Bluetooth.
The GKBC-3100Z is a smart lock that can be conveniently used with Z-Wave and Bluetooth. You can control the door lock directly from the phone via the Bluetooth function in close range. You can also check the status of the door lock on the outside by connecting to the Z-Wave hub.
Product Image

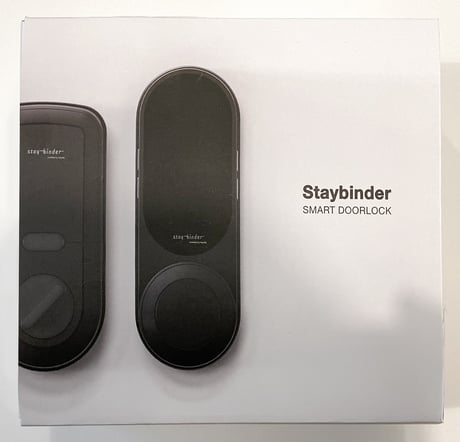

This is Package front image.

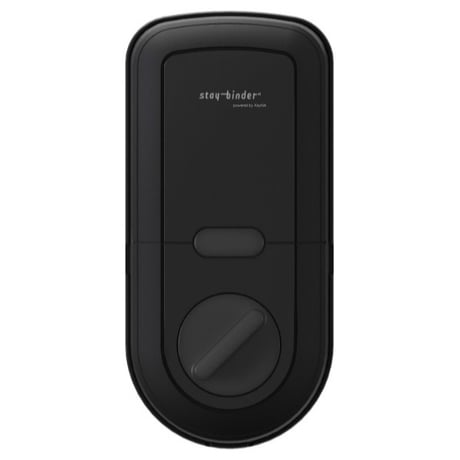

This is Indoor body image

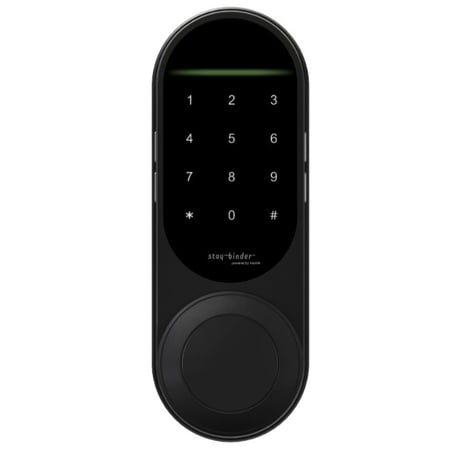

This is Outdoor body image.
This image is BI image.
Please proceed with the door lock open. 1. Set the controller in inclusion mode. 2. Open the battery cover of the indoor body and press the [REG] button. 3. Press the Master Pin [1][2][3][4] (Default value) button after pressing the [#] button. 4. Press the [8][8] button after pressing the [*] button.
Please proceed with the door lock open. 1. Set the controller in exclusion mode. 2. Open the battery cover of the indoor body and press the [REG] button. 3. Press the Master Pin [1][2][3][4] (Default value) button after pressing the [#] button. 4. Press the [9][9] button after pressing the [*] button.
To wake up the product, the following actions are required. 1. Touch the keypad on outdoor body. 2. Push the button on Indoor body. 3. Turn the knob on Indoor body.
Please proceed with the door lock open. Please use this procedure only when the primary controller is missing or otherwise inoperable. 1. Open the battery cover of the indoor body and press the [REG] button. 2. Press the Master Pin [1][2][3][4] (Default value) button after pressing the [#] button. 3. Press the [5] button after pressing the [*] button. 4. Press the [2] button after pressing the [*] button. 5. Press the Master Pin [1][2][3][4] (Default value) button after pressing the [#] button *Master pins can change user settings.
DSK number is posted below location. 1) Product : Left side of Indoor Body 2) Package Box : Rear Right Top
| Group | Type |
|---|---|
| Access Control |
|
| Emergency Alarm |
|
