DIN Rail Power Switch Meter
PSM-DIN2-ZW
Sub Energy Meter
HW: 255 FW: 4.01
ZM5202
6.81.06
0x018E (398)
0x0004 (4)
0x0003 (3)
ZC10-20036894
2020-03-20 18:27:10.898932
N/A
Enhanced 232 Slave
Always On Slave
The Power Switch is capable of receiving wireless signals from the coordinator in the Z-Wave network to toggle On/Off of appliances that are attached to it.
The Power Switch Meter can further measure power consumption in kWh and W of attached device and report the values to the Z-Wave network regularly to notify the user. The power consumption can also be transmitted simply with a button press.

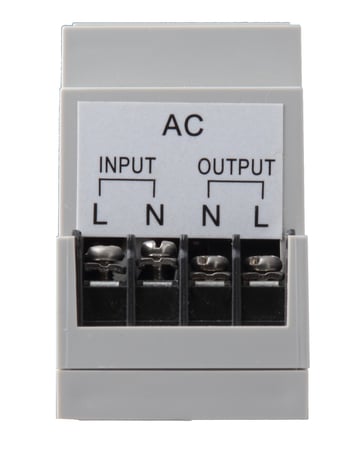

Product Image
1. Connect the external power supply to the input connector and external devices to the output connector. 2. Put the Z-Wave Gateway or Control Panel into Inclusion mode (please refer to the Z-Wave Gateway or Control Panel manual). 3. Within 1.5 seconds, press the Function Button 3 times. 4. Refer to the operation manual of the Z-Wave Gateway or Control panel to complete the adding process. 5. If the device has already been added (included) into another Z-Wave Gateway/Control Panel, or if the device is unable to be added into the current Z-Wave Gateway/Control Panel, please exclude it first (see Removing Device) before attempting to include it into the current Z-Wave Gateway/Control Panel.
1. Put the Z-Wave Gateway or Control Panel into Exclusion mode (please refer to the Z-Wave Gateway or Control panel manual). 2. Within 1.5 seconds, press the Function Button 3 times and the device will be removed from the Z-Wave network.
(Only use factory reset when network Control Panel/Gateway is missing or inoperable). #. Press and hold the Function Button of the device for 10 seconds to factory reset.
1. Regardless of whether power consumption increases or not, the Power Switch Meter will report its status every 10 minutes or every time when the Function Button is pressed and reset the timer. 2. When the Function Button is pressed, the Power Switch Meter will send Meter data. 3. When the power consumed changes by +/- 2W, Power Switch Meter will transmit a signal to Z-Wave Gateway/Panel. 4. When the power consumed changes by +0.1 kWh, Power Switch Meter will transmit a signal to Z-Wave Gateway/Panel.
The DSK information is stored in the QR code format that is printed on a label and adhered to the front side of the device, as example shown on the right hand side.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
