Resideo
Plug-in Switch (Dual Plug Simultaneous Control)
39449 / ZW4106
On/Off Power Switch
HW: 255 FW: 5.22
ZM5202
6.51.10
0x041B (1051)
0x5052 (20562)
0x3033 (12339)
ZC10-20036901
2020-03-27 16:52:45.101655
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Resideo Z-Wave Plug-in Switch (Dual Plug Simultaneous Control).
Transform any home into a smart home with the Resideo Z-Wave Plug-in Switch (Dual Plug Simultaneous Control). The lighting control enables wireless control of on/off functions for standard table and floor lamps and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides dual Z-Wave enabled outlets for the lamp or appliance that you would like to control and a regular pass-through AC outlet for other electrical appliances. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with Resideo Z-Wave Smart Controls!

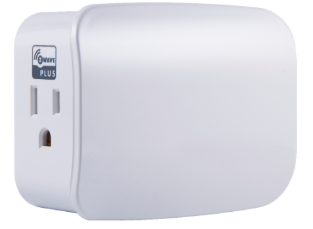

Product Image
3 - Parameter 3
Invert/disable LED (Adjusts when the indicator LED is turned ON, OFF or disables it entirely)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED ON/device ON |
| 1 | 1 | LED ON/device OFF |
| 2 | 2 | Disable LED |
ADDING YOUR DEVICE TO A Z-WAVE NETWORK 1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the manual/program button on the smart switch. Repeat as necessary to add the switch to the network.
TO REMOVE AND RESET THE DEVICE 1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the manual/program button on the smart switch to remove it from the network.
TO RETURN YOUR SWITCH TO FACTORY DEFAULTS 1. If plugged in, unplug the device from the receptacle. 2. Press and hold the top button, plug the device in and continue to hold for at least 3 seconds. NOTE: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
