Honeywell Home (Resideo)
Plug-in Dimmer (Dual Plug Simultaneous Control)
39446 / ZW3107
Light Dimmer Switch
HW: 255 FW: 5.21
ZM5202
6.51.08
0x0039 (57)
0x5044 (20548)
0x3033 (12339)
ZC10-20036897
2020-03-24 16:53:25.02546
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Honeywell Z-Wave Smart Lighting Control Lamp Module with Dimmer Control
Transform any home into a smart home with the Honeywell Z-Wave Smart Lighting Control Lamp Module with Dimmer Control. The lamp module enables wireless control of on/off and dim functions for standard incandescent table and floor lamps, as well as dimmable fluorescent, LED and CFL fixtures and more! Use the dimmer control to customize the lighting output and create the perfect ambiance for any room. The space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp you would like to control and one always-on, simultaneous control AC outlet for other electrical appliances. Take control of your home lighting with Honeywell Z-Wave Smart Controls!

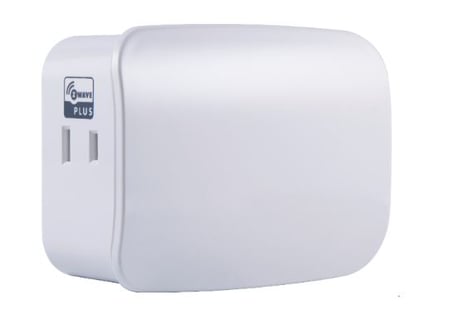

Product Image
3 - Invert/disable LED
0 - LED ON/device OFF 1 - (Default) LED ON/device ON 2 - Disable LEDSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED ON/device OFF |
| 1 | 1 | LED ON/device ON |
| 2 | 2 | Disable LED |
6 - Dim Rate
0 (Default) = Dim up/down the light to the specified level quickly by command except value 0 and FF 1 = Dim up/down the light to the specified level slowly by command except value 0 and FFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dim up/down the light to the specified level quickly by command except value 0 and FF |
| 1 | 1 | Dim up/down the light to the specified level slowly by command except value 0 and FF |
7 - Dim Rate Steps
3 (Default - 3 Steps) 1-99 (Valid values)Size: 1 byte
Default: 3
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Step values |
8 - Dim Rate Timing
1 (Default - 10ms per step) 1-255 (Valid values)Size: 2 bytes
Default: 1
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Dim Speed |
9 - Dim Rate Steps (Manual Control)
3 (Default- 3 steps) 1-99 (Valid values)Size: 1 byte
Default: 3
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Step values |
10 - Dim Rate Timing (Manual Control)
1 (Default- 10ms per step) 1-255 (Valid values)Size: 2 bytes
Default: 1
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Dim Speed |
11 - Dim Rate Steps (All-On/Off)
3 (Default - 3 steps) 1-99 (Valid values)Size: 1 byte
Default: 3
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Step values |
12 - Dim Rate Timing (All-On/Off)
1 (Default- 10ms per step) 1-255 (Valid values)Size: 2 bytes
Default: 1
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Dim Speed |
Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. Once the controller is ready to add your device, press and release the manual/program button on the smart dimmer. Repeat as necessary to add the dimmer to the network.
Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. Once the controller is ready to remove your device, press and release the manual/program button on the smart dimmer to remove it from the network.
If plugged in, unplug the dimmer from the receptacle. Press and hold the top button, plug the device in and continue to hold for at least 3 seconds.
