Leviton
Fan Speed Controller
ZW4SF
Multilevel Switch
HW: 1 FW: 1.07
ZGM130
7.12.2
0x001D (29)
0x0038 (56)
0x0002 (2)
ZC12-20040040
2020-03-27 15:52:42.323573
N/A
Enhanced 232 Slave
Always On Slave
4 Speed Fan controller 120VAC. Compatible with pull chain ceiling fans without electronic control.
4 Speed Fan controller 120VAC. Compatible with pull chain ceiling fans without electronic control. White paddle and vanishing LEDs. Color change kits are available to change to Light Almond, Ivory, Black, Brown, Gray.

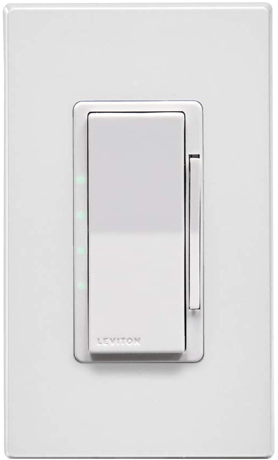

Product Image
3 - Min Level
Minimum Fan Speed level allowedSize: 1 byte
Default: 10
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Minimum Speed Level |
4 - Max Level
Maximum Fan Speed level allowedSize: 1 byte
Default: 99
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Maximum Fan Speed |
5 - Preset Level
Preset Level for OnSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Memory Dim - Last speed |
| 1 | 99 | Level |
6 - Ind Timeout
LED Dim Level Indicator TimeoutSize: 1 byte
Default: 3
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Indicator Off |
| 1 | 254 | Level Indicator Timeout (seconds) |
| 255 | 255 | Level Indicator Always On |
7 - Locator Status
Locator LED StatusSize: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED Off |
| 254 | 254 | Status Mode |
| 255 | 255 | Locater Mode |
Classic Inclusion To A Z-Wave Network For older controllers Classic Inclusion is supported. Depending on the age of the controller the controller will need to be 3 to 35 feet from the device when including. 1. To enter programming mode, hold the button for 7 seconds. The status light will turn amber, release and the status light will blink. 2. Follow the Z-Wave controller instructions to enter inclusion mode. 3. Tap the top or the paddle of the paddle one time. The status light will quickly flash green. 4. The Z-Wave controller will confirm successful inclusion to the network.
Exclusion From A Z-Wave Network When removing an fan speed controller from a Z-Wave network, best practice is to use the exclusion command found in the Z-Wave controller. 1. To enter programming mode, hold the button for 7 seconds. The status light will turn amber, release and the status light will blink. 2. Follow Z-Wave controller directions to enter exclusion mode 3. Tap the the top of the paddle 1 time. The status light will quickly flash green. 4. The Z-Wave controller will remove the device from the network
Factory Default When removing a fan speed controller from a network it is best practice to use the exclusion process. In situations where a device needs to be returned to factory default follow the following steps. A reset should only be used when a controller is inoperable or missing. 1. Hold the top of the paddle for 7 seconds, the status light will turn amber. Continue holding the top paddle for another 7 seconds (total of 14 seconds). The status light will quickly flash red/ amber. 2. Release the top of the paddle and the device will reset.
SmartStart enabled products can be added into a Z-Wave network by scanning the Z-Wave QR Code found on the top of the or the back of the box with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically within 10 minutes of being switched on and in the network vicinity. The QR Code and DSK is found on the top of the Fan Speed Controller. If required, the pin code is underlined on the label.
