Door-/Window Sensor Bypass
PLMK10100
Notification Sensor
HW: 1 FW: 1.69
ZGM130
7.12.2
0x0403 (1027)
0x0002 (2)
0x0006 (6)
ZC12-20040049
2020-04-23 11:48:30.031744
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
The bypass opening detector is mounted on the door or window to signal opening/closing.
The bypass opening detector is mounted on the door or window to signal opening/closing. The bypass button allows the alarm to be temporarily bypassed, e.g. for a smoking break, if the alarm is activated internally. The sabotage contact remains active. The integrated magnetic field sensor technology is more reliable than conventional reed contacts.

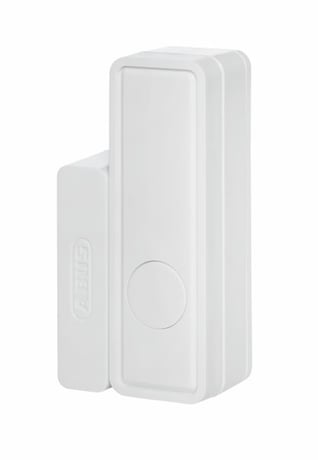

Product Image
10 - Threshold value battery alarm
Percentage value from when the low battery alarm should be transmitted.Size: 1 byte
Default: 10
Minimum: 5
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 50 | Adjustable from 5 - 50 in percent |
14 - BASIC SET to association group 2
BASIC SET should be sent after an opening alarm.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | BASIC SET deactivated |
| 1 | 1 | BASIC SET activated |
15 - Invert value of BASIC SET command
Set the value of the BASIC SET command for movement alarm and acknowledgementSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The opening alarm sends the BASIC SET value "On" (0xFF), the acknowledgement sends the BASIC SET value "Off" (0x00) |
| 1 | 1 | The opening alarm sends the BASIC SET value "Off" (0x00), the acknowledgement sends the BASIC SET value "On" (0xFF) |
32 - Bypass function
Enables or disables the bypass function.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Bypass function activated |
| 1 | 1 | Bypass function deactivated |
Activate the inclusion mode (teach-in mode) on the gateway. (for more details, refer to the operating instructions of the gateway) Or, in your Z-Wave app, press the "+" button (Add / Inclusion) and follow the instructions to set the gateway to inclusion mode. Keep the device within range of the gateway. Remove the safety strip from the battery compartment. We recommend using only the original Duracell battery supplied. Then press the Link button 3 times quickly (within 1.5 seconds) using the pin to start the inclusion on the device. The LED starts flashing green for up to 60 seconds The successful inclusion is displayed in the app or on the gateway and the status LED on the device lights green for 2 seconds. Repeat the inclusion process if it was not successful. If a new attempt fails as well, first carry out a factory reset on the device, see 2.5.
Activate the exclusion mode on the gateway. (for more details, refer to the operating instructions of the gateway) Press the "-" button (Remove / Exclusion) in your Z-Wave app and follow the instructions to set the gateway to Exclusion mode. Using the pin, press the Link button 3 times quickly (within 1.5 seconds) to start the exclusion on the device. The LED starts flashing red for up to 60 seconds The successful exclusion is displayed in the app or on the gateway and the status LED on the device lights up red for 2 seconds.
Press the Link button once to wake up the device. It will then establish a connection to the Z-Wave gateway and transmit the current status.
Press and hold the Link button for at least 5 seconds. Release the button when the red LED stops blinking and lights up continuously. The device is now reset to factory settings. Hint: This procedure should only be used if the primary gateway is not capable of acting. If the device is set to factory default, the status is set to "not included" and the association settings and possible configurations are reset to default.
The DSK code (Device-Specific-Key) is the device-specific key of your device and is required for secure teach-in (inclusion) via S2 at the gateway. The first 5 digits of the DSK code can be found on the QR Code on the right side of the product. Please enter them in the inclusion process when prompted. Alternatively, you can transfer the entire DSK code that you find on the enclosed DSK card to the gateway via QR Code Scan. Please keep the DSK card in a safe place!
| Group | Type |
|---|---|
| Access Control |
|
| Home Security |
|
| Power Management |
|
