FIBARO
Era Inn Edge S AC ZW BD
E EDGE SI 620 AC ZW BD
Window Covering - Pos/End Aware
HW: 186 FW: 1.02:01.00
ZM5101
6.81.06
0x010F (271)
0x0003 (3)
0x00BA (186)
ZC10-20046907
2020-04-24 13:12:37.969024
N/A
Enhanced 232 Slave
Always On Slave
Era Inn Edge S AC ZW BD is a wireless control tubular motor, with knowledge of precise position.
This product supports Security 2 Command Class. While a Security S2 enabled Controller is needed in order to fully use the security feature. This product can be operated in any Z-Wave network with other Z-Wave certified products from other manufacturers. All mains operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. This product supports the Over The Air (OTA) feature for the product's firmware upgrade.

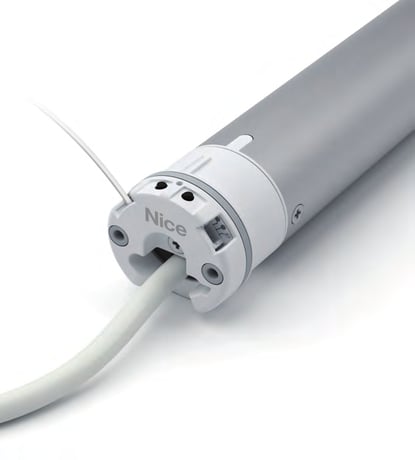

Product Image
33 - Parameter 1
This parameter is used to save High Limit of the motor as the actual position of the motor. Note: 1. High Limit MUST be set before controlling the motor to move to a specific position. 2. Only when the motor stops can High Limit be set. 3. High Limit will NOT reset when device is removed from the network. 4. If this parameter will be changed without gateway knowledge unsolicited report with its value will be send to Lifeline destination. 5. If High Limit is reset, it will issue Switch Multilevel Report [Current Level=0xFE, Target Level=0xFE, Duration=0x00] via Lifeline.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | SET: Reset the High Limit; REPORT: High Limit is not set. |
| 1 | 1 | SET: Set the High Limit; REPORT: High Limit is set. |
34 - Parameter 2
This parameter is used to save Low Limit of the motor as the actual position of the motor. Note: 1. Low Limit MUST be set before controlling the motor to move to a specific position. 2. Only when the motor stops can Low Limit be set. 3. Low Limit will NOT reset when device is removed from the network. 4. If this parameter will be changed without gateway knowledge unsolicited report with its value will be send to Lifeline destination. 5. If Low Limit is reset, it will issue Switch Mult ilevel Report [Current Level=0xFE, Target Level=0xFE, Duration=0x00] via Lifeline.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | SET: Reset the Low Limit; REPORT: Low Limit is not set. |
| 1 | 1 | SET: Set the Low Limit; REPORT: Low Limit is set. |
39 - Parameter 3
This parameter is used to configure the motor default movement speed. Unit is r/min.Size: 4 bytes
Default: 32
Minimum: 16
Maximum: 48
Possible values
| From | To | Desription |
|---|---|---|
| 16 | 48 | This parameter is used to configure the motor default movement speed. |
41 - Parameter 4
This parameter is used to configure Soft Start. Unit is 0.1 round.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 30
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30 | This parameter is used to configure Soft Start. |
42 - Parameter 5
This parameter is used to configure Soft Stop. Unit is 0.1 round.Size: 4 bytes
Default: 15
Minimum: 0
Maximum: 30
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30 | This parameter is used to configure Soft Stop. |
43 - Parameter 6
This parameter allows to set sensitivity level of obstacle detection.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Sensitivity DISABLED |
| 1 | 1 | MINIMUM sensitivity |
| 2 | 2 | ULTRA sensitivity |
| 3 | 3 | ULTRA sensitivity with brief inversion |
| 4 | 4 | ULTRA sensitivity with full inversion |
45 - Parameter 7
This parameter allows to check minimum, maximum and default time of move(read-only). Note: If value equals to 0x00000000, it means the High or Low Limit has not been set.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 2147483647
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Byte4:[LSB] The default time of move (with default speed). |
| 256 | 65535 | Byte3:The maximum time of move (with min speed). |
| 65536 | 16777215 | Byte2:The minimum time of move (with max speed). |
| 16777216 | 2147483647 | Byte1:[MSB] Reserved. |
70 - Parameter 8
Set a number of moves to start identification. Note: When wiggle ends, an unsolicited report to Lifeline destination with t he value 0 will be sent. If module receives control command in CC Multilevel Switch/Basic automatically stops the wiggle.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | SET: Stop wiggling; REPORT: Wiggling ends. |
| 1 | 255 | Set the motor wiggle times and start wiggling. |
165 - Parameter 9
This parameter allows to check Motor Hardware Reversion and Sub Revision(read-only).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 2147483647
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Byte4:[LSB] Motor Hardware Sub Version. |
| 256 | 65535 | Byte3:Motor Hardware Version. |
| 65536 | 16777215 | Byte2:Reserved. |
| 16777216 | 2147483647 | Byte1:[MSB] Reserved. |
166 - Parameter 10
This parameter allows to check Motor Factory Data: Gearbox Ratio and Motor Nominal Speed(read-only).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 2147483647
Possible values
| From | To | Desription |
|---|---|---|
| 16777216 | 2147483647 | Byte1:[MSB] Reserved. |
| 65536 | 16777215 | Byte2:Gearbox Ratio MSB. |
| 256 | 65535 | Byte3:Gearbox Ratio LSB. |
| 0 | 255 | Byte4:[LSB] Motor Norminal Speed. |
167 - Parameter 11
This parameter allows to check Motor Factory Data: Motor Minimum Speed, Motor Maximum Speed and Wiggle Speed(read-only).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 2147483647
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Byte4:[LSB] Wiggle Speed. |
| 256 | 65535 | Byte3:Motor Maximum Speed. |
| 65536 | 16777215 | Byte2:Motor Minimum Speed. |
| 16777216 | 2147483647 | Byte1:[MSB] Reserved. |
168 - Parameter 12
Get Motor Factory Data: Obstacle Detection Max Level, Battery Motor and Soft Start/Stop Max(read-only).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 2147483647
Possible values
| From | To | Desription |
|---|---|---|
| 16777216 | 2147483647 | Byte1:[MSB] Reserved. |
| 256 | 65535 | Byte2:Obstacle Detection Max Level. |
| 65536 | 16777215 | Byte3:Battery Motor. |
| 0 | 255 | Byte4:[LSB] Soft Start/Stop Max. |
255 - Parameter 13
Reset Configuration Parameter 39,41,42,43 to factory setting OR Factory Reset the product.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 1431655765
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reset Configuration Parameter 39,41,42,43 to factory setting. Note: Configuration Report [Parameter=255, Size=4, Value=0x00000000] will be issued via Lifeline when this function executed. |
| 1431655765 | 1431655765 | Factory Reset the product and remove it from the network. Note: All Configuration Parameter will be reset to factory setting. |
1. Power the product. 2. Set your main controller into its 'add product' mode. Refer to its manual if you are unsure of how to perform. 3. Quickly, triple click any one of the buttons. Green LED will flash quickly which indicates entering inclusion mode, and Node Info will be issued for adding. 4. If your controller supports S2 security, and you want to add the product into S2 Authenticated network, please scan the QR code or enter the PIN code (the underlined 5-digits of the DSK) when prompted. [IMPORTANT] QR/PIN code can be found on the product. A full DSK string can be found on the packaging. 5. Wait for the adding process to end. 6. Confirm the adding result. Successful adding will be confirmed by the Z-Wave controller’s message or LED status. If adding is successful,Green LED will become solid for 3s and then off. If its Red LED become solid for 3s and then Green LED flash slowly, it indicates adding is unsuccessful. The product will auto-reset and then activate SmartStart. Repeat the above steps or contact us for further support if needed. Note: The classic manually inclusion will exit if triple click any one of buttons during the adding process. Its Red LED will become solid for 3s and then Green LED flashes slowly. The product will auto-reset and activate SmartStart
1. Make sure the product is powered. 2. Set your main controller into its 'remove product' mode. Refer to its manual if you are unsure of how to perform. 3. Quickly, triple click any one of the buttons. 4. Wait for the removing process to end. 5. Confirm the removing result. Successful removing will be confirmed by the Z-Wave controller’s message or LED status. If removing is successful, Green LED will become flash slowly. If its Red LED becomes solid for 3s and then off, it indicates removing is unsuccessful. Repeat the above steps or contact us for further support if needed.
Reset procedure allows to restore the product back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. 1. Make sure the product is powered. 2. Press and hold any one of the buttons for at least 20s, and then Factory Reset is performed. The product will issue a Device Reset Locally Command via its Lifeline to notify the Lifeline destination that the product has been reset to its factory default state. And it will perform the reset operation regardless of whether or not the delivery of the Device Reset Locally Notification is successful. 3. Pay attention to the color change of the indicator light. After few seconds the product will be reset and restarted, which is signaled with the slowly flash Green LED indicator color.
QR/PIN code can be found on the product.
Type: Era_Inn_Edge_S_AC_ZW_BD_Fibaro_Product Manual_21-04-2020.pdf
Name: Era_Inn_Edge_S_AC_ZW_BD_Fibaro_Product Manual_21-04-2020.pdf
Type: Era_Inn_Edge_S_AC_ZW_BD Advanced Information Product Manual.pdf
Name: Era_Inn_Edge_S_AC_ZW_BD Advanced Information Product Manual.pdf
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | Heat sensor status: Overheat detected |
| Power Management | Over-current status: Over-current detected |
| System | HW status: System hardware failure (manufacturer proprietary failure code provided) |
