LEEDARSON
Motion Sensor Pet Immunity Z-Wave 700
7CA-SS-VE-C0
Notification Sensor
HW: 1 FW: 1.00
ZGM130
7.12.2
0x0300 (768)
0x0300 (768)
0x0042 (66)
ZC12-20050060
2020-05-11 15:12:37.533823
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
MOTION SENSOR PET IMMUNITY Z-WAVE 700
The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement(or lack of movement). It supports the pet immunity up to 80 lbs.

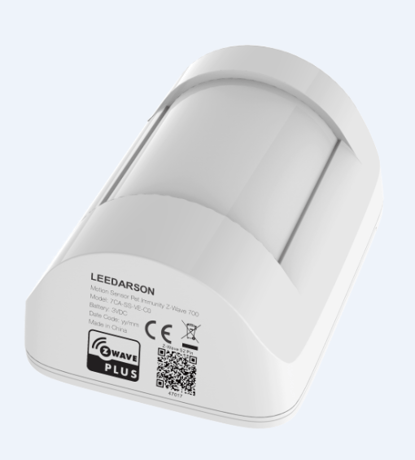

Product Image
10 - LowBatPrecent
Low battery power level of alarm threshold values: the value range are 5~50 for percentage, the battery low power level can setting 5%~50%.Size: 1 byte
Default: 10
Minimum: 5
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 50 | 5: This value 5 here means that device will report a low batter alarm to association group 1 when the batter level is less than 5%. the value 50 means 5: This value 5 here means that device will report a low batter alarm to association group 1 when the batter level is more than 50%. |
12 - Pironoff
Enable/Disable the PIR 0 = Disable the PIR. 1 = Enable the PIR.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | the value 0 means to disable the PIR. the value 1 means to enable the PIR. |
13 - PirTimeout
Setup the wait time of PIR for clear the motion. Valid values: 0x05~0x3BC4Size: 2 bytes
Default: 60
Minimum: 5
Maximum: 15300
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 15300 | The 0x05~0x3BC4 is a valid value range which could be used to set the PIR latency time to clear the previous data. |
14 - BasicEnable
When the Motion Sensor is triggered, if this parameter is 0x01 then it will send Basic set command to group 1. 0 = Don't send. 1 = Send.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | value 0 means that motion sensor won't send basic set to group 1 when the PIR is triggered, while 1 means yes. |
15 - BasicReverse
PIR triggers the correspondence between the value of the Basic set and the PIR state. -If this value is 0x00 : PIR triggers send the basic set with 0xFF, PIR alarm release send the basic set with 0x00. -If this value is 0x01 : PIR triggers send the basic set with 0x00, PIR alarm release send the basic set with 0xFF. Only value 0x00 and 0x01 is valid .Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | 0x00-PIR triggers send the basic set with 0xFF, PIR alarm release send the basic set with 0x00. 0x01-PIR triggers send the basic set with 0x00, PIR alarm release send the basic set with 0xFF. |
16 - PirSensitivity
Motion detection sensitivity level is a value between 0 and 10. This value affects the amount of motion energy required to generate a motion event and also affects the detection range and angle. 0 = Lowest Motion Sensitivity 10 = Highest Motion SensitivitySize: 1 byte
Default: 9
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | 0 = Lowest Motion Sensitivity 10 = Highest Motion Sensitivity |
17 - PirPetImmunity
Enable/disable pet immunity mode. This feature is lens dependent and detection range may be reduced when Pet Immunity is enabled. 0 = Disable the pet immunity mode 1 = Enable the pet immunity modeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | 0 = Disable the pet immunity mode 1 = Enable the pet immunity mode |
18 - LightSensorSendType
Configure lightsensor to upload data form 1=Upload lumens value. 2=Upload day or night(By notification). 3=Upload lumens and day/night .Size: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | 1=Upload lumens value. 3=Upload lumens and day/night . |
Add the Motion Sensor into the Z-Wave network: 5. Power on your Motion Sensor, and let your Z-Wave controller into add/inclusion mode. 6. 3 consecutive clicks in 1.5 seconds, the Motion Sensor will send out a node info security CC in command class list (Security inclusion), the LED will be fast blink ,the timeout is 20-40 seconds; 7. If the inclusion is successful, the LED will be turn on within 2 seconds. If failed, LED will be turn off forever, and please repeat the steps in above.
Remove Motion Sensor from a Z-Wave network: 1. Power on your Motion Sensor, and let the Z-Wave primary controller into remove mode. 2. 3 consecutive clicks in 1.5 second, the LED will be fast blink ,the timeout is 20-40 seconds; 3. If Motion Sensor has been successfully removed from your Z-Wave network, the LED will be turn on 2 seconds. If failed, LED will be turn off forever, and please repeat the steps in above.
In the network: Send Wake up notification, and LED will fast blink when sending data, send over then the LED turn off.
Reset Motion Sensor to factory default. 1. Triggering this action, in 5 seconds LED will be accelerate blink. After 5 seconds, the LED will remain on until the key is released. Motion Sensor will send “Device_Reset_Locally” to the main controller and exclude from the Z-Wave network when the button is released, this procedure will reset the sensor to factory default. 2. Please use this procedure only when the network primary controller is missing or otherwise inoperable. 3. When not in the network, triggering this action, in 5 seconds LED will be accelerate blink red. After 5 seconds, the LED will remain on red until the key is released. this procedure will reset the sensor to factory default.
NA
on the saide of the product
NA
NA
| Group | Type |
|---|---|
| Home Security |
|
| Power Management |
|
| Light sensor |
|
| Sensor type |
|---|
| Illuminance |
