HELTUN
Touch Panel Switch Quinto
HE-TPS05
Central Scene Device
HW: 28 FW: 2.01
ZGM130
7.11.1
0x0344 (836)
0x0004 (4)
0x0003 (3)
ZC12-20040048
2020-04-24 13:17:15.369041
N/A
Enhanced 232 Slave
Always On Slave
Advanced Programmable Z-Wave Plus v2 Wall Touch Panel Switch Quinto—with S2 security and SmartStart on the Z-Wave 700 platform.
The HELTUN HE-TPS05 is an advanced programmable Z-Wave Plus v2 touch panel switch that controls many devices, including lights, dimmers, blinds, curtains, door locks, motorized valves, roller shutters, and more. Features: • Five-channel 5-amp relays with dry contact inputs • Five programmable touch buttons with two-color backlights • All buttons fully customizable to control one to five relays • Five modes configurable for each button • Each relay may be controlled by a timer or on a week schedule • Separate relays & backlights control from gateway or associated devices • Controls Scenes of gateway by touch buttons (pressed, held, released) • Built-in light, temperature, and humidity sensors • Power Consumption logic monitors energy usage • 20 association groups • Incorporates HELTUN Advanced Zero-Cross Technology • ‘Impossibly thin’ at only 9mm The HELTUN HE-TPS05 is part of an entire line of smart, connected products designed to provide the best technology has to offer without compromising stylish living.

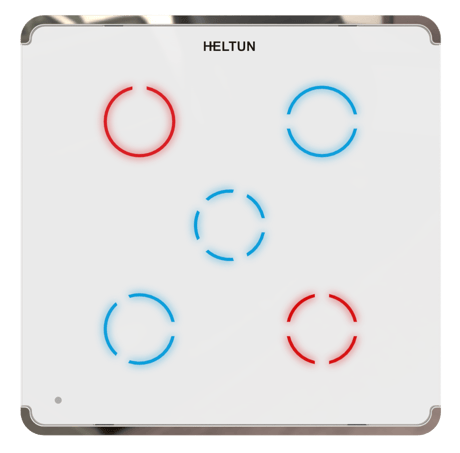

Product Image
.png)
Package Box
.png)

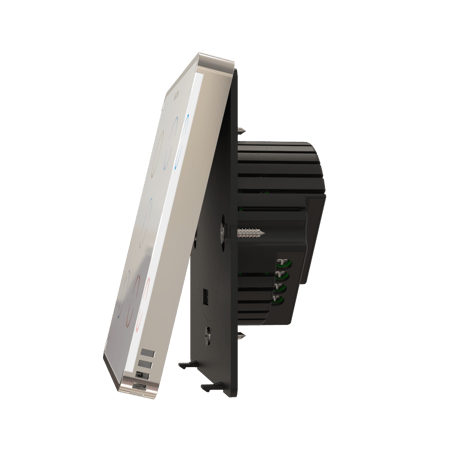

Snap-in Installation
.PNG)

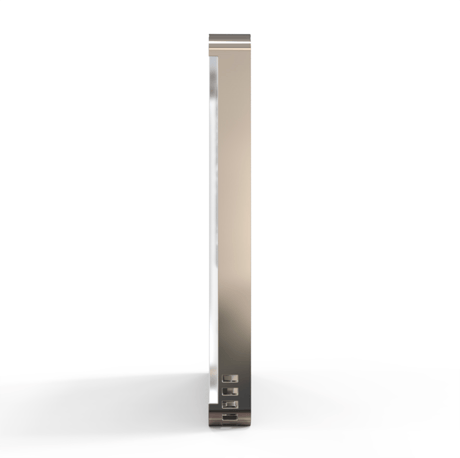

Side View
.png)

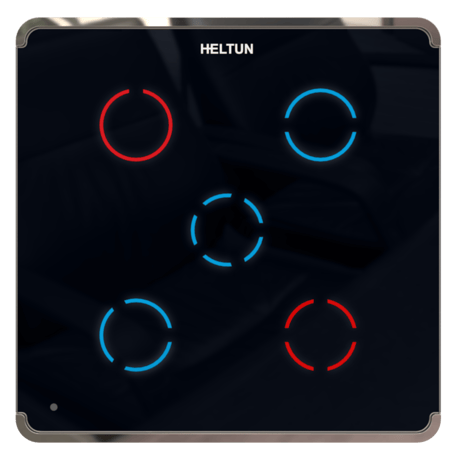

Touch Panel Switch (Black glass Chrome frame)
1 - TIME CORRECTION
Time correction by controllerSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Switch off auto-correction |
| 1 | 0 | If TPS05 is connected to a Z-Wave gateway, the time and day will be periodically polled and corrected from the gateway |
2 - WEEKDAY
The day of the week (starting from Monday)Size: 1 byte
Default: 1
Minimum: 1
Maximum: 7
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | Monday |
| 2 | 0 | Tuesday |
| 3 | 0 | Wednesday |
| 4 | 0 | Thursday |
| 5 | 0 | Friday |
| 6 | 0 | Saturday |
| 7 | 0 | Sunday |
3 - HOUR
Time HourSize: 1 byte
Default: 0
Minimum: 0
Maximum: 23
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 23 | Time Hour in 24 hour format |
4 - MINUTE
Time MinuteSize: 1 byte
Default: 0
Minimum: 0
Maximum: 59
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 59 | Manual adjustment of time minutes (60 minutes) |
5 - METER REPORT INTERVAL
Energy Consumption Meter Consecutive Report Interval, minutesSize: 1 byte
Default: 10
Minimum: 1
Maximum: 120
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 120 | Energy Consumption Meter Consecutive Report Interval in Minutes |
6 - SENSORS REPORT INTERVAL
Sensors Consecutive Report IntervalSize: 1 byte
Default: 10
Minimum: 1
Maximum: 120
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 120 | Sensors Consecutive Report Interval in Minutes |
7 - TEMPERATURE REPORT THRESHOLD
Temperature difference to send to controller, value X 10Size: 1 byte
Default: 5
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Stop sending the reports |
| 1 | 100 | Temperature report threshhold (in °C) |
8 - HUMIDITY REPORT THRESHOLD
Humidity difference to send to controller, value X 10Size: 1 byte
Default: 2
Minimum: 0
Maximum: 25
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Stop sending the reports |
| 1 | 25 | Humidity difference to send to controller, value X 10 |
9 - LIGHT REPORT THRESHOLD
Luminance difference to send to controller in %Size: 1 byte
Default: 50
Minimum: 0
Maximum: 90
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Stop sending the reports |
| 10 | 90 | The percentage (%) change in ambient illumination that results in a light sensor report being sent to the gateway |
10 - TOUCH SENSITIVITY
Touch buttons sensitivity: 10=Supper sensitive. 50=lowest sensitivity.Size: 1 byte
Default: 15
Minimum: 10
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | Threshold to be adjusted from level 10 (very sensitive) to 50 (minimal sensitivity). |
11 - TEMP SENSOR CORRECTION
Temperature sensor calibration, x10Size: 1 byte
Default: 0
Minimum: -100
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| -100 | 100 | Air temperature offset value (°C x 10) |
12 - BACKLIGHT ACTIVE COLOR
Active state backlight colorSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Backlight active state to be red, inactive state to be blue. |
| 1 | 0 | Backlight active state to be blue, inactive state to be red. |
13 - BACKLIGHT AUTO BRIGHTNESS
Backlight auto-brightness controlSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Inactive Level brightness will be controlled manually and set to the level defined by Parameter 14. |
| 1 | 0 | Inactive Level brightness will be controlled automatically depending on the room illumination. |
14 - BACKLIGHT MANUAL BRIGHTNESS LEVEL
Backlight brightness in manual mode. The Backlight Brightness Level Parameter will take effect when Parameter 13 is set to Manual Control (value = 0).Size: 1 byte
Default: 10
Minimum: 1
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 15 | Backlight brightness adjustment 1 (lowest) to 15 (brightest) |
15 - BACKLIGHT1 CONTROL SOURCE
Backlight 1 control sourceSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Backlight is disabled (both color LEDs are turned off) |
| 1 | 0 | Controlled by touch button |
| 2 | 0 | Controlled by gateway or associated device |
16 - BACKLIGHT2 CONTROL SOURCE
Backlight 2 control sourceSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Backlight is disabled (both color LEDs are turned off) |
| 1 | 0 | Controlled by touch button |
| 2 | 0 | Controlled by gateway or associated device |
17 - BACKLIGHT3 CONTROL SOURCE
Backlight 3 control sourceSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Backlight is disabled (both color LEDs are turned off) |
| 1 | 0 | Controlled by touch button |
| 2 | 0 | Controlled by gateway or associated device |
18 - BACKLIGHT4 CONTROL SOURCE
Backlight 4 control sourceSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Backlight is disabled (both color LEDs are turned off) |
| 1 | 0 | Controlled by touch button |
| 2 | 0 | Controlled by gateway or associated device |
19 - BACKLIGHT5 CONTROL SOURCE
Backlight 5 control sourceSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Backlight is disabled (both color LEDs are turned off) |
| 1 | 0 | Controlled by touch button |
| 2 | 0 | Controlled by gateway or associated device |
20 - RELAY1 CONTROL SOURCE
Relay 1 control sourceSize: 1 byte
Default: 1
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Controlled by gateway or associated device |
| 1 | 1 | Controlled by touch button N1 (Top Left) |
| 2 | 2 | Controlled by touch button N2 (Top Right) |
| 3 | 3 | Controlled by touch button N3 (Bottom Left) |
| 4 | 4 | Controlled by touch button N4 (Bottom Right) |
| 5 | 5 | Controlled by touch button N5 (Center) |
21 - RELAY2 CONTROL SOURCE
Relay 2 control sourceSize: 1 byte
Default: 2
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Controlled by gateway or associated device |
| 1 | 1 | Controlled by touch button N1 (Top Left) |
| 2 | 2 | Controlled by touch button N2 (Top Right) |
| 3 | 3 | Controlled by touch button N3 (Bottom Left) |
| 4 | 4 | Controlled by touch button N4 (Bottom Right) |
| 5 | 5 | Controlled by touch button N5 (Center) |
22 - RELAY3 CONTROL SOURCE
Relay 3 control sourceSize: 1 byte
Default: 3
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Controlled by gateway or associated device |
| 1 | 1 | Controlled by touch button N1 (Top Left) |
| 2 | 2 | Controlled by touch button N2 (Top Right) |
| 3 | 3 | Controlled by touch button N3 (Bottom Left) |
| 4 | 4 | Controlled by touch button N4 (Bottom Right) |
| 5 | 5 | Controlled by touch button N5 (Center) |
23 - RELAY4 CONTROL SOURCE
Relay 4 control sourceSize: 1 byte
Default: 4
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Controlled by gateway or associated device |
| 1 | 1 | Controlled by touch button N1 (Top Left) |
| 2 | 2 | Controlled by touch button N2 (Top Right) |
| 3 | 3 | Controlled by touch button N3 (Bottom Left) |
| 4 | 4 | Controlled by touch button N4 (Bottom Right) |
| 5 | 5 | Controlled by touch button N5 (Center) |
24 - RELAY5 CONTROL SOURCE
Relay 5 control sourceSize: 1 byte
Default: 5
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Controlled by gateway or associated device |
| 1 | 1 | Controlled by touch button N1 (Top Left) |
| 2 | 2 | Controlled by touch button N2 (Top Right) |
| 3 | 3 | Controlled by touch button N3 (Bottom Left) |
| 4 | 4 | Controlled by touch button N4 (Bottom Right) |
| 5 | 5 | Controlled by touch button N5 (Center) |
25 - HOLD1 CONTROL MODE
Hold control mode for touch button 1Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold function is disabled |
| 1 | 1 | Operate like click |
| 2 | 2 | When the button is held the relay output state is ON, as soon as the button is released the relay output state changes to OFF (momentary switch). |
| 3 | 3 | When the button is held the relay output state is OFF, as soon as the button is released the relay output state changes to ON (momentary switch). |
26 - HOLD2 CONTROL MODE
Hold control mode for touch button 2Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold function is disabled |
| 1 | 1 | Operate like click |
| 2 | 2 | When the button is held the relay output state is ON, as soon as the button is released the relay output state changes to OFF (momentary switch). |
| 3 | 3 | When the button is held the relay output state is OFF, as soon as the button is released the relay output state changes to ON (momentary switch). |
27 - HOLD3 CONTROL MODE
Hold control mode for touch button 3Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold function is disabled |
| 1 | 1 | Operate like click |
| 2 | 2 | When the button is held the relay output state is ON, as soon as the button is released the relay output state changes to OFF (momentary switch). |
| 3 | 3 | When the button is held the relay output state is OFF, as soon as the button is released the relay output state changes to ON (momentary switch). |
28 - HOLD4 CONTROL MODE
Hold control mode for touch button 4Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold function is disabled |
| 1 | 1 | Operate like click |
| 2 | 2 | When the button is held the relay output state is ON, as soon as the button is released the relay output state changes to OFF (momentary switch). |
| 3 | 3 | When the button is held the relay output state is OFF, as soon as the button is released the relay output state changes to ON (momentary switch). |
29 - HOLD5 CONTROL MODE
Hold control mode for touch button 5Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Hold function is disabled |
| 1 | 1 | Operate like click |
| 2 | 2 | When the button is held the relay output state is ON, as soon as the button is released the relay output state changes to OFF (momentary switch). |
| 3 | 3 | When the button is held the relay output state is OFF, as soon as the button is released the relay output state changes to ON (momentary switch). |
30 - CLICK1 CONTROL MODE
Click control mode for touch button 1Size: 1 byte
Default: 1
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Click function disabled |
| 1 | 1 | Relay inverts state (toggles ON to OFF, OFF to ON). |
| 2 | 2 | Relay inverts state (toggles ON to OFF, OFF to ON) according to the button backlight state. |
| 3 | 3 | Relay switches to ON state only. |
| 4 | 4 | Relay switches to OFF state only. |
| 5 | 5 | Timer: On>Off Mode: Relay output switches to ON state (contacts are closed) then after a specified time switches back to OFF state (contacts are open). The time is specified in parameters 35-39. |
| 6 | 6 | Timer: OFF>ON Mode: Relay output switches to OFF state (contacts are open) then after a specified time switches back to ON state (contacts are closed). The time is specified in Parameters 35-39. |
31 - CLICK2 CONTROL MODE
Click control mode for touch button 2Size: 1 byte
Default: 1
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Click function disabled |
| 1 | 1 | Relay inverts state (toggles ON to OFF, OFF to ON). |
| 2 | 2 | Relay inverts state (toggles ON to OFF, OFF to ON) according to the button backlight state. |
| 3 | 3 | Relay switches to ON state only. |
| 4 | 4 | Relay switches to OFF state only. |
| 5 | 5 | Timer: On>Off Mode: Relay output switches to ON state (contacts are closed) then after a specified time switches back to OFF state (contacts are open). The time is specified in parameters 35-39. |
| 6 | 6 | Timer: OFF>ON Mode: Relay output switches to OFF state (contacts are open) then after a specified time switches back to ON state (contacts are closed). The time is specified in Parameters 35-39. |
32 - CLICK3 CONTROL MODE
Click control mode for touch button 3Size: 1 byte
Default: 1
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Click function disabled |
| 1 | 1 | Relay inverts state (toggles ON to OFF, OFF to ON). |
| 2 | 2 | Relay inverts state (toggles ON to OFF, OFF to ON) according to the button backlight state. |
| 3 | 3 | Relay switches to ON state only. |
| 4 | 4 | Relay switches to OFF state only. |
| 5 | 5 | Timer: On>Off Mode: Relay output switches to ON state (contacts are closed) then after a specified time switches back to OFF state (contacts are open). The time is specified in parameters 35-39. |
| 6 | 6 | Timer: OFF>ON Mode: Relay output switches to OFF state (contacts are open) then after a specified time switches back to ON state (contacts are closed). The time is specified in Parameters 35-39. |
33 - CLICK4 CONTROL MODE
Click control mode for touch button 4Size: 1 byte
Default: 1
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Click function disabled |
| 1 | 1 | Relay inverts state (toggles ON to OFF, OFF to ON). |
| 2 | 2 | Relay inverts state (toggles ON to OFF, OFF to ON) according to the button backlight state. |
| 3 | 3 | Relay switches to ON state only. |
| 4 | 4 | Relay switches to OFF state only. |
| 5 | 5 | Timer: On>Off Mode: Relay output switches to ON state (contacts are closed) then after a specified time switches back to OFF state (contacts are open). The time is specified in parameters 35-39. |
| 6 | 6 | Timer: OFF>ON Mode: Relay output switches to OFF state (contacts are open) then after a specified time switches back to ON state (contacts are closed). The time is specified in Parameters 35-39. |
34 - CLICK5 CONTROL MODE
Click control mode for touch button 5Size: 1 byte
Default: 1
Minimum: 0
Maximum: 6
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Click function disabled |
| 1 | 1 | Relay inverts state (toggles ON to OFF, OFF to ON). |
| 2 | 2 | Relay inverts state (toggles ON to OFF, OFF to ON) according to the button backlight state. |
| 3 | 3 | Relay switches to ON state only. |
| 4 | 4 | Relay switches to OFF state only. |
| 5 | 5 | Timer: On>Off Mode: Relay output switches to ON state (contacts are closed) then after a specified time switches back to OFF state (contacts are open). The time is specified in parameters 35-39. |
| 6 | 6 | Timer: OFF>ON Mode: Relay output switches to OFF state (contacts are open) then after a specified time switches back to ON state (contacts are closed). The time is specified in Parameters 35-39. |
35 - RELAY1 TIMER DURATION
Timer mode duration for button 1. This parameter specifies the duration in seconds for the Timer mode (value 5 or 6 in Parameters 30). Press the button and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON. This function can be used to open/close garage doors, blinds, curtains, etc. or to turn attached devices like security OFF for a short time. The time values can be configured from 0 to 43200 sec (12 hours). Note: If the parameter value is set to “0” it will operate as a short contact (about 0.5 sec).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 43200 | Timer mode duration in seconds |
36 - RELAY2 TIMER DURATION
Timer mode duration for button 2. This parameter specifies the duration in seconds for the Timer mode (value 5 or 6 in Parameters 31). Press the button and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON. This function can be used to open/close garage doors, blinds, curtains, etc. or to turn attached devices like security OFF for a short time. The time values can be configured from 0 to 43200 sec (12 hours). Note: If the parameter value is set to “0” it will operate as a short contact (about 0.5 sec).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 43200 | Timer mode duration in seconds |
37 - RELAY3 TIMER DURATION
Timer mode duration for button 3. This parameter specifies the duration in seconds for the Timer mode (value 5 or 6 in Parameters 32). Press the button and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON. This function can be used to open/close garage doors, blinds, curtains, etc. or to turn attached devices like security OFF for a short time. The time values can be configured from 0 to 43200 sec (12 hours). Note: If the parameter value is set to “0” it will operate as a short contact (about 0.5 sec).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 43200 | Timer mode duration in seconds |
38 - RELAY4 TIMER DURATION
Timer mode duration for button 4. This parameter specifies the duration in seconds for the Timer mode (value 5 or 6 in Parameters 33). Press the button and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON. This function can be used to open/close garage doors, blinds, curtains, etc. or to turn attached devices like security OFF for a short time. The time values can be configured from 0 to 43200 sec (12 hours). Note: If the parameter value is set to “0” it will operate as a short contact (about 0.5 sec).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 43200 | Timer mode duration in seconds |
39 - RELAY5 TIMER DURATION
Timer mode duration for button 5. This parameter specifies the duration in seconds for the Timer mode (value 5 or 6 in Parameters 34). Press the button and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON. This function can be used to open/close garage doors, blinds, curtains, etc. or to turn attached devices like security OFF for a short time. The time values can be configured from 0 to 43200 sec (12 hours). Note: If the parameter value is set to “0” it will operate as a short contact (about 0.5 sec).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 43200
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 43200 | Timer mode duration in seconds |
40 - RELAY INVERSE GROUP1
Group 1 relay inverse mode. The valid values are the following: 0, 12, 13, 14, 15, 21, 23, 24, 25, 31, 32, 34, 35, 41, 42, 43, 45, 51, 52, 53, 54Size: 1 byte
Default: 0
Minimum: 0
Maximum: 54
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Inverse function is disabled |
| 12 | 0 | Relays N1 and N2 will operate in inverse mode. |
| 13 | 0 | Relays N1 and N3 will operate in inverse mode. |
| 14 | 0 | Relays N1 and N4 will operate in inverse mode. |
| 15 | 0 | Relays N1 and N5 will operate in inverse mode. |
| 21 | 0 | Relays N2 and N1 will operate in inverse mode. |
| 23 | 0 | Relays N2 and N3 will operate in inverse mode. |
| 24 | 0 | Relays N2 and N4 will operate in inverse mode. |
| 25 | 0 | Relays N2 and N5 will operate in inverse mode. |
| 31 | 0 | Relays N3 and N1 will operate in inverse mode. |
| 32 | 0 | Relays N3 and N2 will operate in inverse mode. |
| 34 | 0 | Relays N3 and N4 will operate in inverse mode. |
| 35 | 0 | Relays N3 and N5 will operate in inverse mode. |
| 41 | 0 | Relays N4 and N1 will operate in inverse mode. |
| 42 | 0 | Relays N4 and N2 will operate in inverse mode. |
| 43 | 0 | Relays N4 and N3 will operate in inverse mode. |
| 45 | 0 | Relays N4 and N5 will operate in inverse mode. |
| 51 | 0 | Relays N5 and N1 will operate in inverse mode. |
| 52 | 0 | Relays N5 and N2 will operate in inverse mode. |
| 53 | 0 | Relays N5 and N3 will operate in inverse mode. |
| 54 | 0 | Relays N5 and N4 will operate in inverse mode. |
41 - RELAY INVERSE GROUP2
Group 2 relay inverse mode. The valid values are the following: 0, 12, 13, 14, 15, 21, 23, 24, 25, 31, 32, 34, 35, 41, 42, 43, 45, 51, 52, 53, 54Size: 1 byte
Default: 0
Minimum: 0
Maximum: 54
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Inverse function is disabled |
| 12 | 0 | Relays N1 and N2 will operate in inverse mode. |
| 13 | 0 | Relays N1 and N3 will operate in inverse mode. |
| 14 | 0 | Relays N1 and N4 will operate in inverse mode. |
| 15 | 0 | Relays N1 and N5 will operate in inverse mode. |
| 21 | 0 | Relays N2 and N1 will operate in inverse mode. |
| 23 | 0 | Relays N2 and N3 will operate in inverse mode. |
| 24 | 0 | Relays N2 and N4 will operate in inverse mode. |
| 25 | 0 | Relays N2 and N5 will operate in inverse mode. |
| 31 | 0 | Relays N3 and N1 will operate in inverse mode. |
| 32 | 0 | Relays N3 and N2 will operate in inverse mode. |
| 34 | 0 | Relays N3 and N4 will operate in inverse mode. |
| 35 | 0 | Relays N3 and N5 will operate in inverse mode. |
| 41 | 0 | Relays N4 and N1 will operate in inverse mode. |
| 42 | 0 | Relays N4 and N2 will operate in inverse mode. |
| 43 | 0 | Relays N4 and N3 will operate in inverse mode. |
| 45 | 0 | Relays N4 and N5 will operate in inverse mode. |
| 51 | 0 | Relays N5 and N1 will operate in inverse mode. |
| 52 | 0 | Relays N5 and N2 will operate in inverse mode. |
| 53 | 0 | Relays N5 and N3 will operate in inverse mode. |
| 54 | 0 | Relays N5 and N4 will operate in inverse mode. |
42 - RELAY CONTROL SCENARIO1
Relays control by sensors Group 1 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
43 - RELAY CONTROL SCENARIO2
Relays control by sensors Group 2 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
44 - RELAY CONTROL SCENARIO3
Relays control by sensors Group 3 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
45 - RELAY CONTROL SCENARIO4
Relays control by sensors Group 4 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
46 - RELAY CONTROL SCENARIO5
Relays control by sensors Group 5 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
47 - RELAY CONTROL SCENARIO6
Relays control by sensors Group 6 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
48 - RELAY CONTROL SCENARIO7
Relays control by sensors Group 7. 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
49 - RELAY CONTROL SCENARIO8
Relays control by sensors Group 8 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
50 - RELAY CONTROL SCENARIO9
Relays control by sensors Group 9 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
51 - RELAY CONTROL SCENARIO10
Relays control by sensors Group 10 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 53112359
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Scenario function is disabled |
| 1 | 53112359 | Behavior according to the encoded scenario |
52 - RELAY1 LOAD POWER
Power load consumption (in Watts) Relay channel 1 in order to calculate total energy consumption relative to the time each relay is ON.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1100 | Power load consumption (in Watts) |
53 - RELAY2 LOAD POWER
Power load consumption (in Watts) Relay channel 2 in order to calculate total energy consumption relative to the time each relay is ON.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1100 | Power load consumption (in Watts) |
54 - RELAY3 LOAD POWER
Power load consumption (in Watts) Relay channel 3 in order to calculate total energy consumption relative to the time each relay is ON.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1100 | Power load consumption (in Watts) |
55 - RELAY4 LOAD POWER
Power load consumption (in Watts) Relay channel 4 in order to calculate total energy consumption relative to the time each relay is ON.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1100 | Power load consumption (in Watts) |
56 - RELAY5 LOAD POWER
Power load consumption (in Watts) Relay channel 5 in order to calculate total energy consumption relative to the time each relay is ON.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 1100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1100 | Power load consumption (in Watts) |
57 - TOUCH1 ASSOCIATION MODE
Touch control mode for associations with touch button 1. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices. |
| 1 | 0 | On each hold event, the “UP (brighten)” command will be sent to associated devices. |
| 2 | 0 | On each hold event, the “DOWN (dim)” command will be sent to associated devices. |
58 - TOUCH2 ASSOCIATION MODE
Touch control mode for associations with touch button 2. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices. |
| 1 | 0 | On each hold event, the “UP (brighten)” command will be sent to associated devices. |
| 2 | 0 | On each hold event, the “DOWN (dim)” command will be sent to associated devices. |
59 - TOUCH3 ASSOCIATION MODE
Touch control mode for associations with touch button 3. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices. |
| 1 | 0 | On each hold event, the “UP (brighten)” command will be sent to associated devices. |
| 2 | 0 | On each hold event, the “DOWN (dim)” command will be sent to associated devices. |
60 - TOUCH4 ASSOCIATION MODE
Touch control mode for associations with touch button 4. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices. |
| 1 | 0 | On each hold event, the “UP (brighten)” command will be sent to associated devices. |
| 2 | 0 | On each hold event, the “DOWN (dim)” command will be sent to associated devices. |
61 - TOUCH5 ASSOCIATION MODE
Touch control mode for associations with touch button 5. This parameter is intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9, & 11) have been activated. Defines the logic of values changing if one the touch button has been held for more than one second.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices. |
| 1 | 0 | On each hold event, the “UP (brighten)” command will be sent to associated devices. |
| 2 | 0 | On each hold event, the “DOWN (dim)” command will be sent to associated devices. |
To add the HE-TPS05 to a Z-Wave Network (i.e. “inclusion”), do the following: 1. Start the inclusion mode from the gateway/controller. 2. To start the inclusion process on the HE-TPS05, simultaneously press the two bottom touch buttons and hold them for three seconds. 3. The two upper buttons will then sequentially blink ‘blue-red’. 4. If the inclusion has been successful, the two upper buttons will turn blue for three seconds. 5. If the inclusion was not successful, the two upper buttons will turn red for three seconds. In that case repeat the inclusion process.
To remove the HE-TPS05 from a Z-Wave Network (i.e. “exclusion”), do the following: 1. Start the exclusion mode from the gateway/controller. 2. To start the exclusion process on the HE-TPS05, simultaneously press the two bottom touch buttons and hold them for three seconds. 3. Two upper buttons will sequentially blink blue-red. 4. If the exclusion has been successful, the two upper buttons will turn red for three seconds. 5. If the exclusion was not successful, the two upper buttons will turn blue for three seconds. In that case repeat the exclusion process.
To reset the HE-TPS05 to factory defaults, simultaneously press the two bottom buttons and single central touch button, and hold all three for five seconds. If successful, the two upper buttons will turn blue for three seconds then the device will restart. NOTE: This factory reset procedure will change all parameters to the original factory default values and will also exclude the device from any associated Z-Wave network. Please use Factory Reset only when the primary network controller is missing or otherwise inoperable.
The device DSK and QR code are printed on the HE-TPS05 back panel plus on the additional Security Card included in the HE- TPS05 packaging.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| Illuminance |
| Humidity |
| Meter type |
|---|
| Electric Meter Consumption |
