eZLO
Ezlo PlugHub Energy
Ezlo-PlugHub-US
Central Controller
HW: 2 FW: 6.01:03.45
ZM5101
6.81.01
0x025B (603)
0x0002 (2)
0x0001 (1)
ZC10-20056917
2020-05-28 15:21:13.037094
N/A
Static Controller
Central Static Controller
The only control hub that’s also a smart plug and energy monitor, the Ezlo PlugHub Energy offers the power of three devices—plus advanced scene creation and voice control features—in a simple form factor that makes home automation feel accessible to everyone.
The only control hub that’s also a smart plug and energy monitor, the Ezlo PlugHub Energy offers the power of three devices—plus advanced scene creation and voice control features—in a simple form factor that makes home automation feel accessible to everyone. With no wires and no hassle for setup, users can simply insert the Ezlo PlugHub Energy into an outlet, plug in a lamp or small appliance, and start controlling it—and monitoring its energy usage—via our app. Users can also start a larger smart home system by pairing additional devices such as lights, sensors, thermostats, door locks, and more. The PlugHub works with Amazon’s Alexa and Google Assistant, and is also compatible with Siri Shortcuts. Users can even send commands between these assistants from a single app using the Ezlo VOI feature. It’s small size, portability, and affordable price make the PlugHub ideal for renters and apartment dwellers, or for homeowners looking to embrace the benefits of home control for the first time. Plus, the application features an intuitive interface, powerful scene creation tools, a customizable dashboard, and more to personalize the user experience. Taken together, these features make the PlugHub an ideal way to introduce home control to a broader audience, and finally deliver on the promise of mass market home automation.

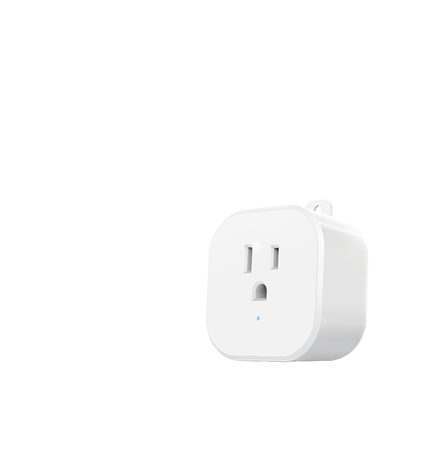

Product Image
LearnMode is not supported in this version.
Press and hold Button for More than 10 seconds. LED will start flashing
Soft reset Wifi reset
The QR code version of the DSK may be found on the back of the product as well as on the packaging.
Generic Z-Wave Add 1. Open the mobile app, and tap on the three-line icon in the top right corner to open the left-hand-side menu, then select Devices. 2. On the device screen, tap on Add Device 3. Look for the device you want to pair, once you find it select it from the list. If your device is in the list, you will get a dedicated Device Pairing wizard, which will walk you through the procedure step by step. 4. The controller it’s set into inclusion mode and the message: Add new devices now… will appear at the top. The controller sets a 60-second countdown timer, during which it will keep scanning for devices. 5. Follow the inclusion steps to pair the device. Once your device is detected, you'll get a confirmation pop-up message on the screen, and then you can go on to assign a name and a room for the device. You can tap on I'm Done Adding Devices to then wrap up the process, after which point you will see your device in the Devices screen.
Generic Z-Wave Add 1. Open the mobile app, and tap on the three-line icon in the top right corner to open the left-hand-side menu, then select Devices. 2. On the device screen, tap on Add Device 3. Look for the device you want to pair, once you find it select it from the list. If your device is on the list, you will get a dedicated Device Pairing wizard, which will walk you through the procedure step by step. 4. The controller it’s set into inclusion mode and the message: Add new devices now… will appear at the top. The controller sets a 60-second countdown timer, during which it will keep scanning for devices. 5. Follow the inclusion steps to pair the device. Once your device is detected, you'll get a confirmation pop-up message on the screen, and then you can go on to assign a name and a room for the device. You can tap on I'm Done Adding Devices to then wrap up the process, after which point you will see your device in the Devices screen.
Generic Z-Wave Remove 1. The unit can be taken to exclusion by going to the device which is going to be excluded, then tap on the trash can icon. 2. Select UNPAIR, which will set the controller into exclusion mode, you will see a message at the top of the screen which says: Remove device now… 3. Follow the instructions to exclude the device, after this process, the device will be removed from the z-wave network and from the UI.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
