Ring
Motion Detector
Motion Detector v2
Notification Sensor
HW: 1 FW: 1.08:01.04
EFR32Z
None
0x0346 (838)
0x0301 (769)
0x0301 (769)
ZC12-20050057
2020-05-04 15:34:28.87827
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Ring Alarm Motion Detector is a wireless sensor for the Ring Alarm system which provides users the ability to know when there is movement of a person or similar object within an area.
Ring Alarm Motion Detector is a wireless sensor for the Ring Alarm system which provides users the ability to know when there is movement of a person or similar object within an area. After installing the sensor and setting up the sensor in the Ring app, monitor and receive notifications motion is detected. The Ring Alarm Base Station is required to enable Motion Detector features and functions within the Ring app.

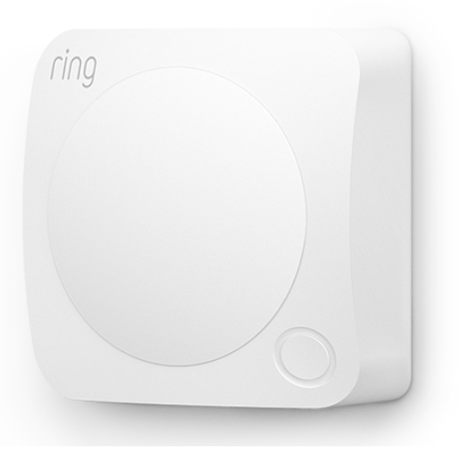

Product Image

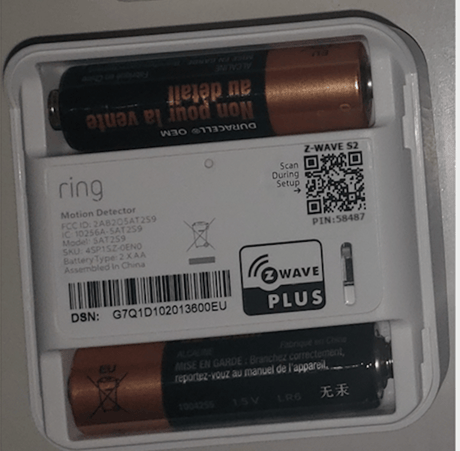

Z Wave logo and QR code on Product
1 - Heartbeat Interval
This parameter is the number minutes between heartbeats. Heartbeats are automatic battery reports on a timer after the last event.Size: 1 byte
Default: 70
Minimum: 1
Maximum: 70
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 70 | This parameter indicates the time between heartbeats in minutes. |
2 - Application Retriess
Number of application level retries attempted for messages either not ACKed or messages encapsulated via supervision get that did not receive a report.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | This parameter indicates the Number of application level retries. |
3 - Application Level Retry Base Wait Time Period
The number base seconds used in the calculation for sleeping between retry messages.Size: 1 byte
Default: 5
Minimum: 1
Maximum: 96
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 96 | This parameter indicates the number base seconds used in the calculation for sleeping between retry messages. |
4 - LED Indicator Enable
This parameter allows a user, via software, to configure the various LED indications on the device. 0 == Don't show green 1 == Show green after Supervision Report Intrusion (Fault) 2 == Show green after Supervision Report both Intrusion and Intrusion clearSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | This parameter allows a user to configure LED indications on the device. |
5 - Runtime Occ Clear Delay
Delay time in seconds for occupancy signal to clearSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Delay time in seconds for occupancy signal to clear |
6 - Runtime Intrusion Clear Delay
Delay time in seconds for intrusion signal to clearSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Delay time in seconds for intrusion signal to clear |
7 - Runtime Std Clear Delay
Standard delay time in secondsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | This parameter is the Standard delay time in seconds |
8 - Motion Detection Mode
Adjusts motion sensitivitySize: 1 byte
Default: 3
Minimum: 0
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 4 | This parameter adjusts motion sensitivity |
9 - Lighting Enabled
Enable or Disable light sensorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | This parameter is used to Enable or Disable light sensor |
10 - Lighting Delay
Delay used to turn off lights when motion is no longer detectedSize: 1 byte
Default: 2
Minimum: 0
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 60 | This parameter indicates the Delay used to turn off lights when motion is no longer detected. |
11 - Supervisory Report Timeout
The number of milliseconds waiting for a Supervisory Report response to a Supervisory Get encapsulated command from the sensor before attempting a retry.Size: 2 bytes
Default: 10000
Minimum: 500
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 30000 | This parameter indicates the number of milliseconds waiting for a Supervisory Report. |
After powering on the device, press and hold the button on the front of the device for ~3 seconds. Release the button and the device will enter Classic inclusion mode which implements both classic inclusion with a Node Information Frame, and Network Wide Inclusion. During Classic Inclusion mode, the green LED will blink three times followed by a brief pause, repeatedly. When Classic inclusion times-out, the device will blink alternating red and green a few times.
Exclusion Instructions: 1. Initiate remove “Ring Alarm Motion Detector” flow in the Ring Alarm mobile application – Select the settings icon from device details page and choose “Remove Device” to remove the device. This will place the controller into Remove or “Z-Wave Exclusion” mode. 2. Locate the pinhole reset button on the back of the device in the battery compartment. 3. With the controller in Remove (Z-Wave Exclusion) mode, use a paper clip or similar object and tap the pinhole button. The device’s red LED turns on solid to indicate the device was removed from the network.
Not applicable. Ring Alarm Motion Detector is a Frequently Listening Receiver Slave (FLiRS) device and does not support Wake Up Command Class.
Factory Default Instructions 1. To restore Ring Alarm Motion Detector to factory default settings, locate the pinhole reset button on the device. This is found inside the battery compartment on the back of the device after removing the back bracket. 2. Using a paperclip or similar object, insert it into the pinhole, press and hold the button down for 10 seconds. 3. The device will rapidly blink green continuously for 10 seconds. After about 10 seconds, when the green blinking stops, release the button. The red LED will turn on solid to indicate the device was removed from the network. Note: Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
The 5-digit DSK pin found on the package of the Ring Alarm Motion Detector or the 5-digit DSK pin found under the QR code on the device.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security |
|
| Power Management |
|
| System |
|
