Ring
Ring Keypad v2
Keypad v2
Entry Control Keypad Device
HW: 1 FW: 1.08
EFR32Z
7.12.4
0x0346 (838)
0x0101 (257)
0x0301 (769)
ZC12-20050056
2020-05-04 15:34:37.67495
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Ring Alarm Keypad is a wireless accessory for the Ring Alarm system which provides users the ability to arm and disarm their system, view system status, and manage alarm conditions.
Ring Alarm Keypad is a wireless accessory for the Ring Alarm system which provides users the ability to arm and disarm their system, view system status, and manage alarm conditions. After installing the Keypad and setting up the Keypad in the Ring app, perform arming and disarming actions as well as receive system indications for different status updates and events. The Ring Alarm Base Station is required to enable Keypad features and functions within the Ring app.

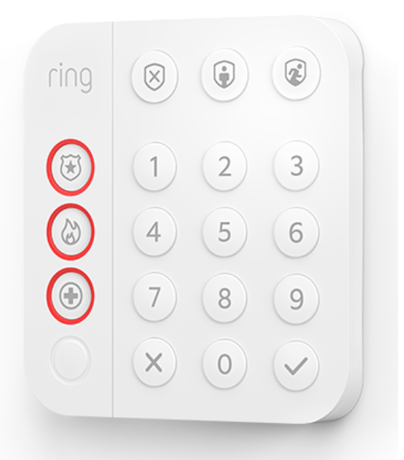

Product Image

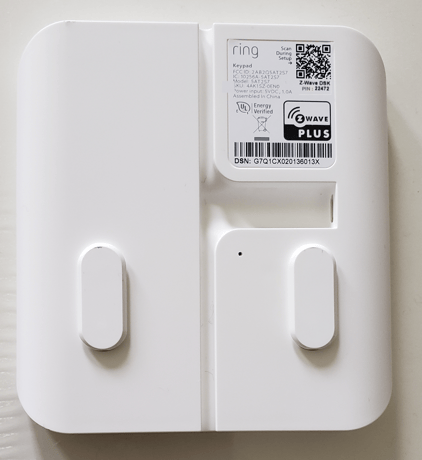

Z Wave logo and QR code on Product
1 - Heartbeat Interval
This parameter is the number minutes between heartbeats. Heartbeats are automatic battery reports on a timer after the last event.Size: 1 byte
Default: 70
Minimum: 1
Maximum: 70
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 70 | This parameter is the interval between heartbeats in minutes. |
2 - Application Retries
Number of application level retries attempted for messages either not ACKed or messages encapsulated via supervision get that did not receive a report.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | This parameter is the number of application level retries attempted for messages |
3 - Application Level Retry Base Wait Time Period
The number base seconds used in the calculation for sleeping between retry messages.Size: 1 byte
Default: 5
Minimum: 1
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | This parameter is the Base seconds used in the calculation for sleeping between retry messages. |
4 - Announcement Audio Volume
Announce audio volume adjustmentSize: 1 byte
Default: 7
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | This parameter is the Announce audio volume adjustment |
5 - Key Tone Volume
Key Tone Volume adjustmentSize: 1 byte
Default: 6
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | This parameter is the Key Tone Volume adjustment |
6 - Siren Volume
Siren Volume adjustmentSize: 1 byte
Default: 10
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | This parameter is the Siren Volume adjustment |
7 - Long press emergency duration (seconds)
This parameter allows a user to configure the duration in seconds for the hold time required to capture a long press . This includes Emergency Buttons + Mode Buttons (Police, Fire, Medical, Disarmed, Home, Away)Size: 1 byte
Default: 3
Minimum: 2
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 5 | This parameter is the special key long press duration - hold time required to capture a long press in seconds. |
8 - Long press number pad duration (seconds)
This parameter allows a user to configure the duration in seconds for the hold time required to capture a long press . This includes Number Pad + Check & X (0-9, Check, X)Size: 1 byte
Default: 3
Minimum: 2
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 5 | This parameter is the hold time required to capture a long press in seconds. |
9 - Proximity Display Timeout
Timeout in seconds when proximity is detected and no input is receivedSize: 1 byte
Default: 5
Minimum: 0
Maximum: 30
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30 | This parameter is the Timeout in seconds when proximity is detected and no input is received |
10 - Button Press Display Timeout
Timeout in seconds when any button is pressed, but a sequence is not completed and buttons are no longer being pressedSize: 1 byte
Default: 5
Minimum: 0
Maximum: 30
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30 | This parameter is the Timeout in seconds when any button is pressed. |
11 - Status Change Display Timeout
Timeout in seconds when indicator command is received from the hub to change statusSize: 1 byte
Default: 5
Minimum: 1
Maximum: 30
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 30 | This parameter is the Timeout in seconds when indicator command is received from the hub to change status |
12 - Security Mode Brightness
Adjusts the brightness of the security mode buttonsSize: 1 byte
Default: 100
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | This parameter adjusts the brightness of the security mode buttons |
13 - Key Backlight Brightness
Adjusts the brightness of the keypad backlight. Used for Key Backlight LEDs onlySize: 1 byte
Default: 100
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | This parameter adjusts the brightness of the keypad backlight. Used for Key Backlight LEDs only |
14 - Ambient Light Sensor Level
Light threshold where keypad will stop backlighting if higher thanSize: 1 byte
Default: 20
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | This parameter is the light threshold where keypad will stop backlighting if higher than |
15 - Proximity On/OFF
Turn On and Off the Proximity Detection.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | This parameter is the Turn On and Off the Proximity Detection. |
16 - Ramp Time Config
Ramp time in units of ten milliseconds each to turn the LEDs on/off. Applies to all LEDs on the keypadSize: 1 byte
Default: 50
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | This parameter is the ramp time to turn the LEDs on/off in milliseconds. |
17 - Low Battery Threshold
The percentage level at which the display would turn on the yellow battery indicator (whenever the display is on).Size: 1 byte
Default: 30
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | This parameter is the percentage level at which the display would turn on. |
18 - Languages Set
Sets the language on the keypadSize: 1 byte
Default: 0
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 31 | This parameter sets the language on the keypad |
19 - Warn Battery Threshold
The percentage level at which the display would turn on the red battery indicator (whenever the display is on).Size: 1 byte
Default: 10
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | This parameter is the percentage level at which the display would turn on the red battery indicator. |
20 - System Security Mode Blink Duration
Configurable ON time for the blink for config #22 which allows us to modify the time for the LED to be active when set to blink on a period per config 22.Size: 1 byte
Default: 2
Minimum: 1
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | This parameter is the Configurable ON time for the blink. |
21 - Supervision Report Timeout
The number of milliseconds waiting for a Supervisory Report response to a Supervisory Get encapsulated command from the sensor before attempting a retry.Size: 2 bytes
Default: 10000
Minimum: 500
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 30000 | This parameter is the number of milliseconds waiting for a Supervisory Report response to a Supervisory Get encapsulated command from the sensor before attempting a retry. |
22 - System Security Mode Display
System Security Mode Display: (Always, Sometimes, Never). 601 = Always On 1 - 600 = periodic interval 0 = Always Off, except when there's activitSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 601
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 601 | This parameter is the System Security Mode Display options. |
23 - Languages Supported
Returns bitmask of languages supported. Bits set to 1 indicate that the language is supportedSize: 4 bytes
Default: 37
Minimum: 0
Maximum: 4294967295
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | This parameter is the Bitmask of supported languages. |
24 - Calibrate Speaker
When set to 1, calibrates the speakerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | This parameter is the Speaker calibration value. |
After powering on the device, press and hold the #1 button for ~3 seconds. Release the button and the device will enter Classic inclusion mode which implements both classic inclusion with a Node Information Frame, and Network Wide Inclusion. During Classic Inclusion mode, the green Connection LED will blink three times followed by a brief pause, repeatedly. When Classic inclusion times-out, the device will blink alternating red and green a few times.
Exclusion Instructions: 1. Initiate remove “Ring Alarm Keypad” flow in the Ring Alarm mobile application – Select the settings icon from device details page and choose “Remove Device” to remove the device. This will place the controller into Remove or “Z-Wave Exclusion” mode. 2. Locate the pinhole reset button on the back of the device. 3. With the controller in Remove (Z-Wave Exclusion) mode, use a paper clip or similar object and tap the pinhole button. The device’s Connection LED turns on solid red to indicate the device was removed from the network.
Not applicable. Ring Alarm Keypad (LSS) is a Frequently Listening Receiver Slave (FLiRS) device and does not support Wake Up Command Class.
Factory Default Instructions 1. To restore Ring Alarm Keypad to factory default settings, locate the pinhole reset button on the device. This is found on the back of the device after removing the back bracket. 2. Using a paperclip or similar object, insert it into the pinhole, press and hold the button down for 10 seconds. 3. The device’s Connection icon LED will rapidly blink green continuously for 10 seconds. After about 10 seconds, when the green blinking stops, release the button. The red LED will turn on solid to indicate the device was removed from the network. Note: Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
The 5-digit DSK pin found on the package of the Ring Alarm Keypad or the 5-digit DSK pin found under the QR code on the device.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management |
|
| System | SW status: System software failure (manufacturer proprietary failure code provided) |
