Yale
Yale Assure SL Lock
YRD256-ZW3
Lock
HW: 2 FW: 2.11:43.16
ZGM130
7.12.2
0x0129 (297)
0x8002 (32770)
0xA570 (42352)
ZC12-20080088
2020-08-11 15:27:05.454718
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Lock and unlock your door with ease using the touchscreen keypad. Integrate your Yale lock into your Z-Wave home automation or security system for ultimate convenience.
Never worry about carrying around or losing your keys again. Unlock and lock your home with ease from the backlit touchscreen keypad. Create unique pin codes for friends and family and remove codes whenever you need to. This Yale Real Living lock features Z-Wave technology and seamlessly integrates into 50+ home automation and security systems. When added to most Z-Wave automation systems, lock and unlock your door, create pin codes, view access history and receive notifications from anywhere. The lock is tamper resistant, easy to install and even easier to use!

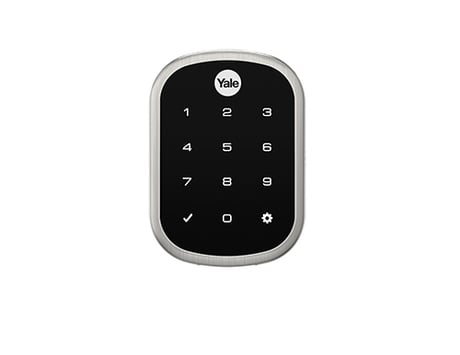

Product Image
1 - Volume
Set Volume Level to high (1), low (2), or silent (3).Size: 1 byte
Default: 2
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 3 | Sound level |
2 - Auto Relock on/off
0x00 = OFF, 0xFF = ON default is 0x00 or OFFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Auto Relock On |
| 0 | 0 | Auto Relock OFF |
3 - Relock Time
10 to 180 seconds default is 30 secondsSize: 1 byte
Default: 30
Minimum: 10
Maximum: 180
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 180 | Seconds |
4 - Wrong Code Entry Limit
3 to 10 default is 5 timesSize: 1 byte
Default: 5
Minimum: 3
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 3 | 10 | Times |
5 - Language
1=English, 2=Spanish, 3=French default is 1= EnglishSize: 1 byte
Default: 1
Minimum: 1
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | English |
| 2 | 2 | Spanish |
| 3 | 3 | French |
7 - Shut Down Time (After wrong codes)
10 to 132 seconds default is 60 secondsSize: 1 byte
Default: 60
Minimum: 10
Maximum: 132
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 132 | Seconds |
8 - Operating Mode
00 = normal mode (this is the default mode) 01 = vacation mode, keypad lockout 02 = privacy mode, no keypad. RF Unlock will workSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Normal Mode |
| 1 | 1 | Vacation Mode |
| 2 | 2 | Privacy Mode |
11 - One Touch Locking
0x00 = OFF, 0xFF = ON default is 0xFF or ON.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | One Touch Locking On |
| 0 | 0 | One Touch Locking Off |
12 - Privacy Button
0x00 = OFF, 0xFF = ON default is 0x00 or OFFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | Privacy Button On |
| 0 | 0 | Privacy Button Off |
13 - Lock Status LED
0x00 = OFF , 0xFF=ON default is 0x00 or OFFSize: 1 byte
Default: 0
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | Lock Status LED On |
| 0 | 0 | Lock Status LED Off |
15 - Reset to Factory Defaults
01 = Lock will execute Reset To Factory. 02 = Reserved for future use (Lock will currently execute Reset To Factory same as 01). No default value Please use this procedure only when the network primary controller is missing or otherwise inoperable.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Reset to Factory ON |
| 0 | 0 | Reset to Factory Off |
Install Yale Smart Module into slot above battery compartment IMPORTANT: Batteries must be removed before inserting Yale Smart Module: • Remove battery cover • Remove batteries • Insert Yale Smart Module • Reinstall batteries • Reinstall battery cover 2. Open Z-Wave system's smart home or alarm app on your smartphone or tablet 3. If you have Smart Start* enabled with your Z-Wave System follow in-app prompts to add a new device If you don't have smart start or are not sure, follow steps 4 - 6 4. On your lock keypad, enter your master entry code followed by the gear icon 5. Press the 7 key followed by the gear icon 6. Press the 1 key followed by the gear icon
Open Z-Wave system's smart home or alarm app and follow instructions for removing a device 2. On your lock keypad, enter your master entry code followed by the icon 3. Press the 7 key followed by the gear icon 4. Press the 3 key followed by the gear icon
Press Yale logo to wake up lock
Remove the battery cover and batteries. Remove the interior escutcheon to access the reset button. The reset button is located above the PCB cable connector. While pressing the reset button for a minimum of 3 seconds, reinstall batteries. Release reset button. Replace battery cover. Please use this procedure only when the network primary controller is missing or otherwise inoperable
Sticker on module and insert
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Power Management |
|
