Simon
Sensor de humo iO
10002862-039
Notification Sensor
HW: 255 FW: 3.01
ZM5202
6.71.03
0x0267 (615)
0x0011 (17)
0x0000 (0)
ZC10-20076951
2020-07-24 13:51:05.314147
N/A
Routing Slave
Reporting Sleeping Slave
Yes
Photoelectric smoke alarm is generally more effective at detecting slow, smoldering fires that smolder for hours before bursting into flame.
Photoelectric smoke alarm is generally more effective at detecting slow, smoldering fires that smolder for hours before bursting into flame. Install a smoke alarm in every room and on every level of the house. Once detected smoke concentration reaches the threshold value, its red LED indicator will flashes quickly and it will give out loud alarm sound, and an alarm message will also be sent to user APP to alert the user to take action ASAP.

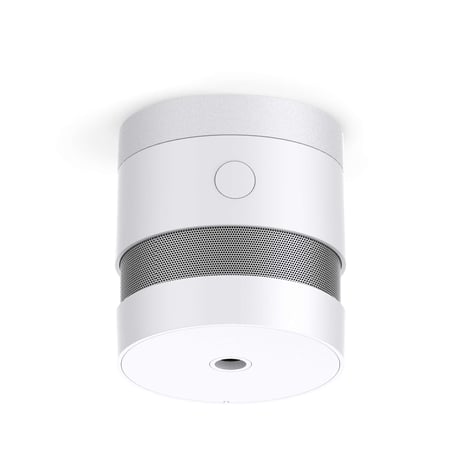

Product Image
Device ADD for Inclusion - Click [Add] icon in Z-Wave Controller . - Press the Net_Button for between 2 and 30 seconds, Green LED is Blinking one time every 300 milliseconds. - If Inclusion Process is successful, Green led will turn off.
Device Remove for Exclusion - Click [Remove] icon in Z-Wave Controller - Press the Net_Button for between 2 and 30 seconds, Green LED is Blinking one time every 300 milliseconds.
- Wake up Notification is transmitted every 24 hours by default. - Wake up Notification is transmitted when power is turn on. - Press Net_Button for 2 seconds between 30 seconds
-Long press Net_Button for more than 30 secounds in the product. - Device Reset Locally notification is Transmitted.Green led is turn on for 2.5 seconds，then turn off. . Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm | Sensor status: Smoke detected |
