Simon
Opening/Closing sensor iO
10002214-039
Notification Sensor
HW: 1 FW: 2.00
ZM5202
6.81.00
0x0208 (520)
0x0200 (512)
0x0008 (8)

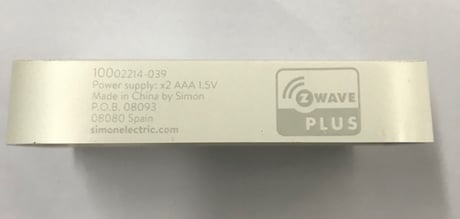

ZC10-20076931
2020-06-30 15:32:15.04612
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Door/Window Sensor is a wireless reed sensor powered by AAA battery. It is used for detecting the opening or closing of doors, windows.
Door/Window Sensor is a wireless reed sensor powered by AAA battery. It is used for detecting the opening or closing of doors, windows. It can communicate with an associated Z-Wave device, such as Siren, Smart Switch, etc.

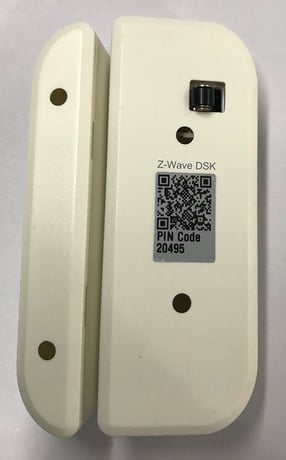

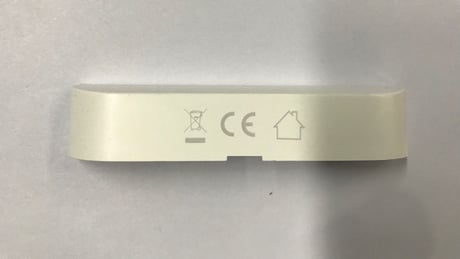

Product Image
15 - Value of the BASIC SET
Door/Window Sensor can reverse its value of BASIC SET when the magnet is triggered.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Send BASIC SET VALUE = 255 to nodes associated with group 2 when door/window is opened.Send BASIC SET VALUE = 0 to nodes associated with group 2 when door/window is closed. |
| 1 | 1 | Send BASIC SET VALUE = 0 to nodes associated with group 2 when door/window is opened.Send BASIC SET VALUE = 255 to nodes associated with group 2 when door/window is closed. |
32 - Level of low battery
This parameter defines a battery level as the “low battery”.Size: 1 byte
Default: 20
Minimum: 10
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | the value here defines the low battery |
1. Insert the AAA battery. 2. Set the Z-Wave network main controller into learning mode. 3. Triple or single short press the Z-button. 4. If the add for inclusion is successful, the LED will blink less than 5 seconds and then keep on 3 seconds. Otherwise, the LED will blink 5 seconds and then turn off, in which case you need to repeat the process from step 2.
1. Insert the AAA battery. 2. Set the Z-Wave network main controller into learning mode. 3. Triple clicking the Z-button. 4. If the remove for exclusion, the LED will turn off within 1 second. Otherwise, the LED will blink 5 seconds and then turn off, in which case you need to repeat the process from step 2.
When the product has been online, long press the Z-Wave button for more than 3 seconds to report the product has been awakened.
1. Insert the AAA battery. 2. Pressing and holding the Z button for more than 20 seconds, 3. Led will keep on until the Z-Button is released, and it will reset to factory default when the button is released. Using this procedure only in the event that the network primary controller is missing or otherwise inoperable.
None
1. Insert the AAA battery. 2. Set the Z-Wave network main controller into learning mode. 3. Press 3 times in 1.5 seconds. 4. If the add for inclusion is successful, the LED will blink fast until the received wake up no more information command will turn off.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
