Square D
Z-Wave Dimmer
SQR22101**Z
Light Dimmer Switch
HW: 1 FW: 1.13
ZM5202
6.82.01
0x0447 (1095)
0x0111 (273)
0x1201 (4609)
ZC10-20076943
2020-07-09 15:52:02.041257
N/A
Routing Slave
Always On Slave
Z-WAVE 600W DIMMER, SNGL POLE, ENERGY MONITORING
The Square D 600W Z-Wave Plus Energy Monitoring Dimmer is the professionals choice for secure reliable lighting control. For use in areas where variable lighting is a requirement like the living room where you want bright light for reading on the couch or dim lighting for watching a movie. Perfect for monitoring energy usage and determining cost savings associated with dimming lights. It works with any Z-Wave hub and can be grouped with up to 5 other Z-Wave Plus devices.

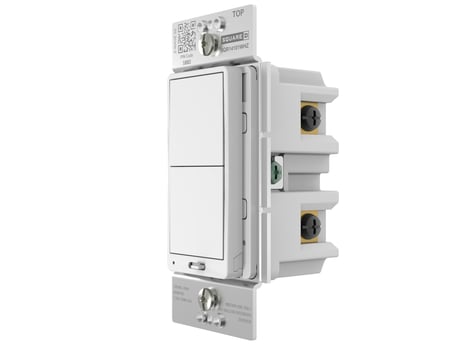

Product Image
View configuration parameters (1)
1 - Parameter 1
Synchronization of load power and LED indicatorSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power On, LED Off; Power Off, LED On |
| 1 | 1 | Power On, LED On; Power Off, LED Off |
Operating instructions (4)
Quick click x3, within 1.5s/ interval <0.5s
Quick click x3, within 1.5s/ interval <0.5s
Quick click x3 +press x 1 >10 seconds
The DSK can be found on the product packaging.
Documents (2)
Supported meter (1)
| Meter type |
|---|
| Electric Meter Consumption |
