Square D
Z-Wave Receptacle
SQR44101**Z
On/Off Power Switch
HW: 1 FW: 1.11
ZM5202
6.82.01
0x0447 (1095)
0x0111 (273)
0x1105 (4357)
ZC10-20076941
2020-07-08 15:17:37.56793
N/A
Routing Slave
Always On Slave
ZWAVE TR RECEPTACLE, ENERGY MONITORING, 15A
The Square D 15 Amp Z-Wave Plus Energy Monitoring Duplex Receptacle is the professionals choice for secure reliable lighting control. For use in areas where you want to control a device that is not connected to a switch. The receptacle mounts inside the electrical box like a standard device so it blends into the home. Perfect for monitoring energy usage of the device plugged into the controlled outlet. It works with any Z-Wave hub and can be grouped with up to 5 other Z-Wave Plus devices.

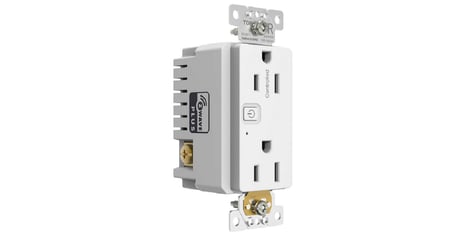

Product Image
1 - Parameter 1
Synchronization of load power and LED indicator.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power On, LED Off; Power Off, LED On |
| 1 | 1 | Power On, LED On;Power Off, LED Off |
A. SmartStart inclusion: The feature assumes the gateway has implemented SmartStart. Users could use the APP of the gateway or the gateway camera to scan the QR code on device or on device package before powering on the device, and then when the device is powered on, it shall be automatically added to the gateway. B. Manual inclusion: When the gateway is in adding mode (please refer to the instruction of the Z-Wave gateway for the operations on gateway itself), press the program button 3 times within 1.5s (the interval between each press is less than 0.5s).
Exclusion from a Z-Wave network: When the gateway is in removing mode (please refer to the instruction of the Z-Wave gateway for the operations on gateway itself), press the program button 3 times within 1.5s (the interval between each press is less than 0.5s)
3x quick click +1 x press> 10 seconds.
The DSK can be found on the product packaging.
| Meter type |
|---|
| Electric Meter Consumption |
