Philio
2 Wire Dimmer
PAD15
Multilevel Switch
HW: 1 FW: 1.01
ZGM130
None
0x013C (316)
0x0005 (5)
0x007e (126)
ZC12-20070082
2020-07-14 11:03:27.488811
N/A
Enhanced 232 Slave
Always On Slave
PAD15 is a 2 Wire dimmer. It only needs to connect two wires, single wire (L) and load (NO1).
The device should only need two wires for dimming, easy to install. This device is a security enabled Z-Wave Plus product that uses encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave Plus products. Z-WaveTM enabled devices displaying the Z-WaveTM logo can also be used with this device regardless of the manufacturer, and this device can also be used in other manufacturer’s Z-WaveTM enabled networks. All mains operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. The product supports an Over the Air (OTA) feature for the products firmware upgrade.

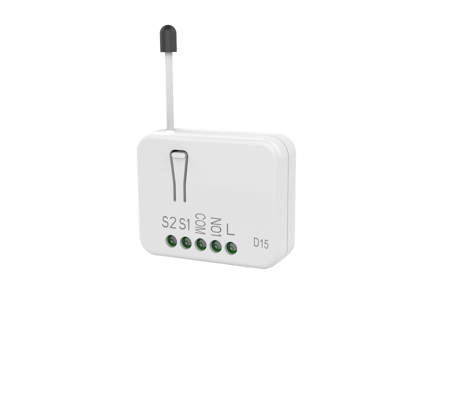

Product Image
1 - Switch set
To select connected switch function. Setting value: 0: Only S1 is effective 1: Both S1 and S2 are effective. 2: S1 dimmer up S2 dimmer downSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0: Only S1 is effective |
| 1 | 1 | 1: Both S1 and S2 are effective. |
| 2 | 2 | 2: S1 dimmer up S2 dimmer down |
2 - Power-on recovery status set
To set dimmer level when AC power on. Setting value: 0: OFF-0% 1: ON-last level 2: ON-100%Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0: OFF-0% |
| 1 | 1 | 1: ON-last level |
| 2 | 2 | 2: ON-100% |
3 - RF report set
To set if device send Multilevel Switch report to gateway when dimming finished. Setting value: 1: report ON 0: report OFFSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0: report OFF |
| 1 | 1 | 1: report ON |
4 - Maximum level
To set dimming level maximum value. Dimming level will not over the setting value. Setting value: Cannot be lower than the Minimum levelSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | 1~99 : 1% ~ 99% |
5 - Minimum level
To set dimming level minimum value. Dimming level will directly go to 0% when dimming value is lower than the setting value. Setting value: Cannot be higher than the Maximum levelSize: 1 byte
Default: 0
Minimum: 0
Maximum: 98
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 98 | 0~98 : 0% ~ 98% |
6 - Basic duration set
Unit: second To set dimming finished duration time when physical switch used. Ex: When setting is 2, it will take 2 seconds from switch on action to dimming finished.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | Unit: second ,0 ~127second |
Add(Classic Inclusion) : 1. Put your Z-Wave™ controller into inclusion mode by following the instructions provided by the controller manufacturer. 2. Press the include button three times within 3 seconds to enter inclusion mode.
Remove (Exclusion) 1. Put your Z-Wave™ controller into exclusion mode by following the instructions provided by the controller manufacturer. 2. Press the include button three times within 3 seconds to enter exclusion mode. 3. Node ID will be excluded.
Reset : 1. Press the include button four times within 3 seconds and hold on the button press without releasing. 2. Keep pressing the button for 3 seconds then LED will be off,release the button within 2 seconds. 3. Device has been reset. ※Function Reset : Please use this procedure only when the network primary controller is missing or otherwise inoperable.
1. The product has a DSK string. Key in the first five digits to initiate the SmartStart process, or scan QR code. Ex: DSK: 18112-24021- 48001-62259-57092-27453-08187-47408 2. SmartStart enabled products can be added into a Z-Wave™ network by scanning the Z-Wave™ QR Code on the product, with a controller providing SmartStart inclusion. No further action is required and the SmartStart product will be added automatically to the closest network within 10 minutes of being switched on. Notice: The QR Code can be foundon the device PAD15 or in the box.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | Over-load status: Over-load detected |
