Enbrighten
In-Wall 3-Speed Fan Control
55258/ZW4002
Fan Switch
HW: 255 FW: 5.50
ZM5202
6.82.00
0x0063 (99)
0x4944 (18756)
0x3337 (13111)
ZC10-20086955
2020-07-27 18:03:12.561669
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Enbrighten Z-Wave Smart Fan Control.
Transform any home into a smart home with the Enbrighten Z-Wave Smart Fan Control. The in-wall fan control easily replaces any standard in-wall switch remotely controls a ceiling fan in your home and features a three-speed control system. Your home will be equipped with ultimate flexibility with the Enbrighten Z-Wave Smart Fan Control, capable of being used by itself or with up to four Enbrighten add-on switches. Screw terminal installation provides improved space efficiency when replacing existing switches and the integrated LED indicator light allows you to easily locate the switch in a dark room. The Enbrighten Z-Wave Smart Fan Control is compatible with any Z-Wave certified gateway, providing access to many popular home automation systems. Take control of your home lighting with Enbrighten Z-Wave Smart Lighting Controls!

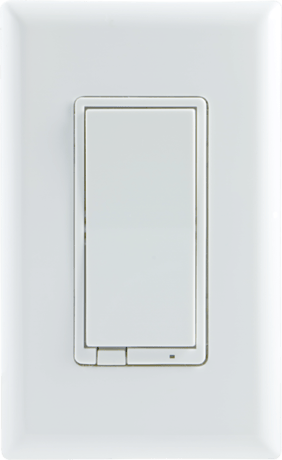

Product Image
4 - Invert Switch
If mounted upside down, you can change the configuration for On to Off/ Off to On inputsSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Default |
| 1 | 1 | Invert |
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the top or bottom rocker.
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the top or bottom rocker.
Quickly press ON (top) button three times, then immediately press the OFF (bottom) button three times. The LED will flash ON/OFF five times when completed successfully.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1).
| Type | Value(s) |
|---|
