ABUS
Nexello 3I/3O Hybrid Module
PLHA10100
Notification Sensor
HW: 1 FW: 1.00:00.04
SD3502
6.81.06
0x0403 (1027)
0x0003 (3)
0x0007 (7)
ZC10-20076949
2020-07-21 16:51:58.400327
N/A
Enhanced 232 Slave
Always On Slave
Yes
The module supports 3 Inputs for max. 12V and 3 Outputs for max. 24V.
The module is mounted via a bracket, it is tamper protected and has a back-up battery. Three Inputs for the connection of: Analogue sensors with voltage 0~12V Digital sensors with voltage 0~12V Potential-free outputs NC/NO Open Collector Outputs OC Three Outputs for connecting actuators with a maximum of 24VDC SPDT (Single Pole, Double Throw) relay (toggle switch) functions: Configurable timer that automatically switches off after a preset period of time (default is 500 ms) The output can be set to activate automatically when the input terminals (see configuration setting)

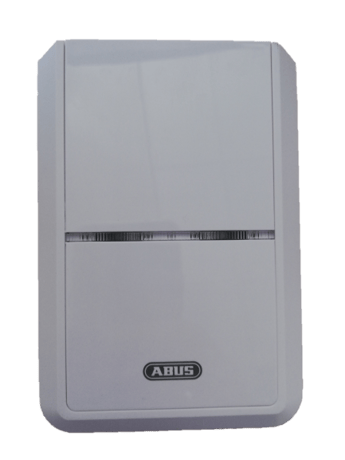

Product Image
1 - Signal input 1 - Mode
Several settings of the signal input and its triggering behaviour.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 206
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No Relay is triggered, No Voltage is present, triggers below lowthreshold |
| 2 | 0 | Relay 1 is triggered, No Voltage is present, triggers below lowthreshold |
| 4 | 0 | Relay 2 is triggered, No Voltage is present, triggers below lowthreshold |
| 6 | 0 | Relay 1 and 2 are triggered, No Voltage is present, triggers below lowthreshold |
| 8 | 0 | Relay 3 is triggered, No Voltage is present, triggers below lowthreshold |
| 10 | 0 | Relay 1 and 3 are triggered, No Voltage is present, triggers below lowthreshold |
| 14 | 0 | Relay 1, 2 and 3 are triggered, No Voltage is present, triggers below lowthreshold |
| 64 | 0 | No Relay is triggered, 3,3V is present, triggers below lowthreshold |
| 66 | 0 | Relay 1 is triggered, 3,3V is present, triggers below lowthreshold |
| 68 | 0 | Relay 2 is triggered, 3,3V is present, triggers below lowthreshold |
| 70 | 0 | Relay 1 and 2 are triggered, 3,3V is present, triggers below lowthreshold |
| 72 | 0 | Relay 3 is triggered, 3,3V is present, triggers below lowthreshold |
| 74 | 0 | Relay 1 and 3 are triggered, 3,3V is present, triggers below lowthreshold |
| 78 | 0 | Relay 1, 2 and 3 are triggered, 3,3V is present, triggers below lowthreshold |
| 128 | 0 | No Relay is triggered, No Voltage is present, triggers above highthreshold |
| 130 | 0 | Relay 1 is triggered, No Voltage is present, triggers above highthreshold |
| 132 | 0 | Relay 2 is triggered, No Voltage is present, triggers above highthreshold |
| 134 | 0 | Relay 1 and 2 are triggered, No Voltage is present, triggers above highthreshold |
| 136 | 0 | Relay 3 is triggered, No Voltage is present, triggers above highthreshold |
| 138 | 0 | Relay 1 and 3 are triggered, No Voltage is present, triggers above highthreshold |
| 142 | 0 | Relay 1, 2 and 3 are triggered, No Voltage is present, triggers above highthreshold |
| 192 | 0 | No Relay is triggered, 3,3V is present, triggers above highthreshold |
| 194 | 0 | Relay 1 is triggered, 3,3V is present, triggers above highthreshold |
| 196 | 0 | Relay 2 is triggered, 3,3V is present, triggers above highthreshold |
| 198 | 0 | Relay 1 and 2 are triggered, 3,3V is present, triggers above highthreshold |
| 200 | 0 | Relay 3 is triggered, 3,3V is present, triggers above highthreshold |
| 202 | 0 | Relay 1 and 3 are triggered, 3,3V is present, triggers above highthreshold |
| 206 | 0 | Relay 1, 2 and 3 are triggered, 3,3V is present, triggers above highthreshold |
| 12 | 0 | Relay 2 and 3 are triggered, No Voltage is present, triggers below lowthreshold |
| 76 | 0 | Relay 2 and 3 are triggered, 3,3V is present, triggers below lowthreshold |
| 140 | 0 | Relay 2 and 3 are triggered, No Voltage is present, triggers above highthreshold |
| 204 | 0 | Relay 2 and 3 are triggered, 3,3V is present, triggers above highthreshold |
2 - Relay output 1 - switching time
Setting for the duration of the switching time when the relay output is switched.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | relay output is permanently switched |
| 1 | 255 | Adjustable duration from 1 - 255 in 100ms steps |
3 - Signal input 1 - switching time at association group 2
Setting for the duration of the switching time at association group 2 when signal input is triggered.Size: 1 byte
Default: 180
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Switched permanently |
| 1 | 255 | Adjustable duration from 1 - 255 in seconds |
4 - Signal input 1 - voltage high-threshold
Setting, from which voltage rise the signal input is triggeredSize: 1 byte
Default: 25
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Adjustable from 0 - 255 in 100mV steps (25 = 2500mV = 2.5V) |
5 - Signal input 1 - voltage low-threshold
Setting of the voltage drop below which the signal input is triggeredSize: 1 byte
Default: 10
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Adjustable from 0 - 255 in 100mV steps (10 = 1000mV = 1.0V) |
6 - Signal input 2 - Mode
Same as Parameter 1, but applies to Signal Input 2Size: 1 byte
Default: 64
Minimum: 0
Maximum: 206
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No Relay is triggered, No Voltage is present, triggers below lowthreshold |
| 2 | 0 | Relay 1 is triggered, No Voltage is present, triggers below lowthreshold |
| 4 | 0 | Relay 2 is triggered, No Voltage is present, triggers below lowthreshold |
| 6 | 0 | Relay 1 and 2 are triggered, No Voltage is present, triggers below lowthreshold |
| 8 | 0 | Relay 3 is triggered, No Voltage is present, triggers below lowthreshold |
| 10 | 0 | Relay 1 and 3 are triggered, No Voltage is present, triggers below lowthreshold |
| 12 | 0 | Relay 2 and 3 are triggered, No Voltage is present, triggers below lowthreshold |
| 14 | 0 | Relay 1, 2 and 3 are triggered, No Voltage is present, triggers below lowthreshold |
| 64 | 0 | No Relay is triggered, 3,3V is present, triggers below lowthreshold |
| 66 | 0 | Relay 1 is triggered, 3,3V is present, triggers below lowthreshold |
| 68 | 0 | Relay 2 is triggered, 3,3V is present, triggers below lowthreshold |
| 70 | 0 | Relay 1 and 2 are triggered, 3,3V is present, triggers below lowthreshold |
| 72 | 0 | Relay 3 is triggered, 3,3V is present, triggers below lowthreshold |
| 74 | 0 | Relay 1 and 3 are triggered, 3,3V is present, triggers below lowthreshold |
| 76 | 0 | Relay 2 and 3 are triggered, 3,3V is present, triggers below lowthreshold |
| 78 | 0 | Relay 1, 2 and 3 are triggered, 3,3V is present, triggers below lowthreshold |
| 128 | 0 | No Relay is triggered, No Voltage is present, triggers above highthreshold |
| 130 | 0 | Relay 1 is triggered, No Voltage is present, triggers above highthreshold |
| 132 | 0 | Relay 2 is triggered, No Voltage is present, triggers above highthreshold |
| 134 | 0 | Relay 1 and 2 are triggered, No Voltage is present, triggers above highthreshold |
| 136 | 0 | Relay 3 is triggered, No Voltage is present, triggers above highthreshold |
| 138 | 0 | Relay 1 and 3 are triggered, No Voltage is present, triggers above highthreshold |
| 140 | 0 | Relay 2 and 3 are triggered, No Voltage is present, triggers above highthreshold |
| 142 | 0 | Relay 1, 2 and 3 are triggered, No Voltage is present, triggers above highthreshold |
| 192 | 0 | No Relay is triggered, 3,3V is present, triggers above highthreshold |
| 194 | 0 | Relay 1 is triggered, 3,3V is present, triggers above highthreshold |
| 196 | 0 | Relay 2 is triggered, 3,3V is present, triggers above highthreshold |
| 198 | 0 | Relay 1 and 2 are triggered, 3,3V is present, triggers above highthreshold |
| 200 | 0 | Relay 3 is triggered, 3,3V is present, triggers above highthreshold |
| 202 | 0 | Relay 1 and 3 are triggered, 3,3V is present, triggers above highthreshold |
| 204 | 0 | Relay 2 and 3 are triggered, 3,3V is present, triggers above highthreshold |
| 206 | 0 | Relay 1, 2 and 3 are triggered, 3,3V is present, triggers above highthreshold |
7 - Relay output 2 - switching time
Setting for the duration of the switching time when the relay output is switched.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | relay output is permanently switched |
| 1 | 255 | Adjustable duration from 1 - 255 in 100ms steps |
8 - Signal input 2 - switching time at association group 3
Setting for the duration of the switching time at association group 3 when signal input is triggered.Size: 1 byte
Default: 180
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Switched permanently |
| 1 | 255 | Adjustable duration from 1 - 255 in seconds |
9 - Signal input 2 - voltage high-threshold
Setting, from which voltage rise the signal input is triggeredSize: 1 byte
Default: 25
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Adjustable from 0 - 255 in 100mV steps (25 = 2500mV = 2.5V) |
10 - Signal input 2 - voltage low-threshold
Setting of the voltage drop below which the signal input is triggeredSize: 1 byte
Default: 10
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Adjustable from 0 - 255 in 100mV steps (10 = 1000mV = 1.0V) |
11 - Signal input 3 - Mode
Same as Parameter 1, but applies to Signal Input 3Size: 1 byte
Default: 64
Minimum: 0
Maximum: 206
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No Relay is triggered, No Voltage is present, triggers below lowthreshold |
| 2 | 0 | Relay 1 is triggered, No Voltage is present, triggers below lowthreshold |
| 4 | 0 | Relay 2 is triggered, No Voltage is present, triggers below lowthreshold |
| 6 | 0 | Relay 1 and 2 are triggered, No Voltage is present, triggers below lowthreshold |
| 8 | 0 | Relay 3 is triggered, No Voltage is present, triggers below lowthreshold |
| 10 | 0 | Relay 1 and 3 are triggered, No Voltage is present, triggers below lowthreshold |
| 12 | 0 | Relay 2 and 3 are triggered, No Voltage is present, triggers below lowthreshold |
| 14 | 0 | Relay 1, 2 and 3 are triggered, No Voltage is present, triggers below lowthreshold |
| 64 | 0 | No Relay is triggered, 3,3V is present, triggers below lowthreshold |
| 66 | 0 | Relay 1 is triggered, 3,3V is present, triggers below lowthreshold |
| 68 | 0 | Relay 2 is triggered, 3,3V is present, triggers below lowthreshold |
| 70 | 0 | Relay 1 and 2 are triggered, 3,3V is present, triggers below lowthreshold |
| 72 | 0 | Relay 3 is triggered, 3,3V is present, triggers below lowthreshold |
| 74 | 0 | Relay 1 and 3 are triggered, 3,3V is present, triggers below lowthreshold |
| 76 | 0 | Relay 2 and 3 are triggered, 3,3V is present, triggers below lowthreshold |
| 78 | 0 | Relay 1, 2 and 3 are triggered, 3,3V is present, triggers below lowthreshold |
| 128 | 0 | No Relay is triggered, No Voltage is present, triggers above highthreshold |
| 130 | 0 | Relay 1 is triggered, No Voltage is present, triggers above highthreshold |
| 132 | 0 | Relay 2 is triggered, No Voltage is present, triggers above highthreshold |
| 134 | 0 | Relay 1 and 2 are triggered, No Voltage is present, triggers above highthreshold |
| 136 | 0 | Relay 3 is triggered, No Voltage is present, triggers above highthreshold |
| 138 | 0 | Relay 1 and 3 are triggered, No Voltage is present, triggers above highthreshold |
| 140 | 0 | Relay 2 and 3 are triggered, No Voltage is present, triggers above highthreshold |
| 142 | 0 | Relay 1, 2 and 3 are triggered, No Voltage is present, triggers above highthreshold |
| 192 | 0 | No Relay is triggered, 3,3V is present, triggers above highthreshold |
| 194 | 0 | Relay 1 is triggered, 3,3V is present, triggers above highthreshold |
| 196 | 0 | Relay 2 is triggered, 3,3V is present, triggers above highthreshold |
| 198 | 0 | Relay 1 and 2 are triggered, 3,3V is present, triggers above highthreshold |
| 200 | 0 | Relay 3 is triggered, 3,3V is present, triggers above highthreshold |
| 202 | 0 | Relay 1 and 3 are triggered, 3,3V is present, triggers above highthreshold |
| 204 | 0 | Relay 2 and 3 are triggered, 3,3V is present, triggers above highthreshold |
| 206 | 0 | Relay 1, 2 and 3 are triggered, 3,3V is present, triggers above highthreshold |
12 - Relay output 3 - switching time
Setting for the duration of the switching time when the relay output is switched.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | relay output is permanently switched |
| 1 | 255 | Adjustable duration from 1 - 255 in 100ms steps |
13 - Signal input 3 - switching time at association group 4
Setting for the duration of the switching time at association group 4 when signal input is triggered.Size: 1 byte
Default: 180
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Switched permanently |
| 1 | 255 | Adjustable duration from 1 - 255 in seconds |
14 - Signal input 3 - voltage high-threshold
Setting, from which voltage rise the signal input is triggeredSize: 1 byte
Default: 25
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Adjustable from 0 - 255 in 100mV steps (25 = 2500mV = 2.5V) |
15 - Signal input 3 - voltage low-threshold
Setting of the voltage drop below which the signal input is triggeredSize: 1 byte
Default: 10
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Adjustable from 0 - 255 in 100mV steps (10 = 1000mV = 1.0V) |
16 - Voltage Report (time)
The interval time of the voltage report for signal input 1-3Size: 1 byte
Default: 30
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Adjustable from 1 - 255 in minutes |
17 - Sabotage Alarm Relay output
Setting whether a relay output must be switched in case of a sabotage alarm.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 14
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No Relays are triggered |
| 2 | 0 | Relay 1 is triggered |
| 4 | 0 | Relay 2 is triggered |
| 6 | 0 | Relay 1 and 2 are triggered |
| 8 | 0 | Relay 3 is triggered |
| 10 | 0 | Relay 1 and 3 are triggered |
| 12 | 0 | Relay 2 and 3 are triggered |
| 14 | 0 | Relay 1, 2 and 3 are triggered |
18 - Signal input - Activate arm / disarm message
Setting whether a signal input should send an armed and an unarmed message instead of a trigger signal.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0 = No signal input sends arm/disarm message |
| 1 | 1 | 1 = Signal input 1 sends arm/disarm message |
| 2 | 2 | 2 = Signal input 2 sends arm/disarm message |
| 3 | 3 | 3 = Signal input 3 sends arm/disarm message |
Press the Link button 3 times quickly (within 1.5 seconds) to start the inclusion on the device. The LED starts flashing green quickly.
Press the Link button 3 times quickly (within 1.5 seconds) to start the exclusion on the device.
The device is an Always On Slave and therefore does not require a WakeUp function. The device can be controlled by the Z-Wave controller at any time.
Press the Link button 3 times quickly (within 1.5 seconds). Press quickly (within 1 second) a fourth time and press and hold the Link button for at least 5 seconds. The device is now reset to factory settings. Hint: This procedure should only be used if the primary network controller is not capable of acting. If the device is set to factory default, the status is set to "not included" and the association settings and possible configurations are reset to default.
The DSK code (Device-Specific-Key) is the device-specific key of your device and is required for secure teach-in (inclusion) via S2 on the Z-Wave controller. The first 5 digits of the DSK Code can be found under the QR Code on the back of the product.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | Cover status: Tampering, product cover removed |
| Power Management |
|
| Sensor type |
|---|
| Voltage |
