Plug-in Smart Dimmer (Dual Plug with Pass through Outlet)
55252/ ZW3105
Light Dimmer Switch
HW: 255 FW: 5.50
ZM5202
6.82.00
0x0063 (99)
0x5044 (20548)
0x3134 (12596)
ZC10-20086958
2020-07-27 18:04:23.888199
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control Lamp Module with Dimmer Control
Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control Lamp Module with Dimmer Control. The lamp module enables wireless control of on/off and dim functions for standard incandescent table and floor lamps, as well as dimmable fluorescent, LED and CFL fixtures and more! Use the dimmer control to customize the lighting output and create the perfect ambiance for any room. The space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp you would like to control and one always-on, standard pass-through AC outlet for other electrical appliances. Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!

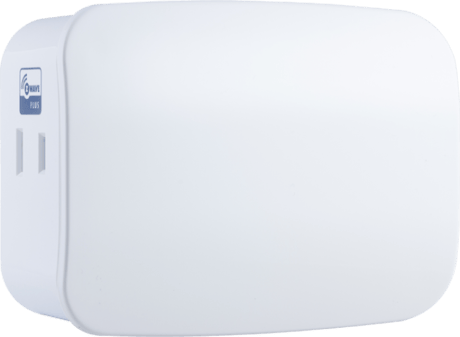

Product Image
3 - LED Light
0 = LED ON when light is ON (Default) 1 = LED ON when light is OFF 2 = LED is always OFF 3 = LED is always ONSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED On when load is On, LED Off when load is Off (Default) |
| 1 | 1 | LED ON/device OFF |
| 2 | 2 | Always OFF |
| 3 | 3 | Always ON |
7 - Dim Rate Adjustments (From Z-Wave Controller)
Number of steps or levelsSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Number of Steps for dim rate |
8 - Dim Rate Adjustments (From Z-Wave Controller)
Timing of StepsSize: 2 bytes
Default: 255
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | How fast dimming occurs |
9 - Dim Rate Adjustments (When Manually Controlled)
Number of steps or levelsSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Step values |
10 - Dim Rate Adjustments (When Manually Controlled)
Timing of StepsSize: 2 bytes
Default: 255
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Dim Speed |
11 - Dim Rate Adjustments (When Receiving All-On/Off Commands)
Number of levels or stepsSize: 1 byte
Default: 99
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Step values |
12 - Dim Rate Adjustments (When Receiving All-On/Off Commands)
Timing of StepsSize: 2 bytes
Default: 255
Minimum: 1
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | Dim Speed |
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press the program button of the smart dimmer
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the manual/program button on the smart dimmer.
1. If plugged in, unplug the dimmer from the receptacle. 2. Press and hold the top button for at least there seconds while you plug the dimmer into a receptacle.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1).
| Type | Value(s) |
|---|
