QUBINO
Luxy Smart Light
ZMNHQD1
Color Switch
HW: 1 FW: 11.00:11.00
ZM5101
6.82.00
0x0159 (345)
0x0008 (8)
0x0051 (81)
ZC10-20096982
2020-07-31 13:34:07.302289
N/A
Enhanced 232 Slave
Always On Slave
Luxy Smart Light is an innovative light source that gently illuminates in more than 16 million colours and easily fits into places of your light switch or socket.
Luxy Smart Light is an innovative light source that gently illuminates in more than 16 million colours and easily fits into places of your light switch or socket. It can be used standalone, as ambient light, or as a smart home device. With an integrated beeper, it enables a unique combination of sound and visual notifications. It can be controlled with a touch on one of the 4 sides on the touch-sensitive surface (or touch screen) or remotely via a smartphone. It can be set to work automatically, according to the pre-programmed scenes, created on the Z-Wave gateway. Set the Luxy Smart Light as a visual alarm, for a gentle wake-up, with colours simulating the sunrise or illuminate your corridor in the night-time, so you don’t have to turn on the main light or stumble in the dark.

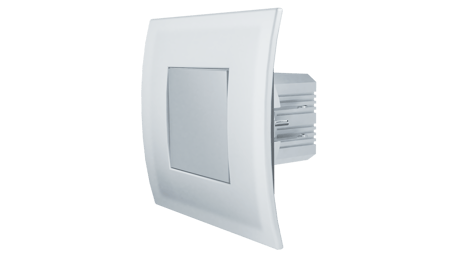

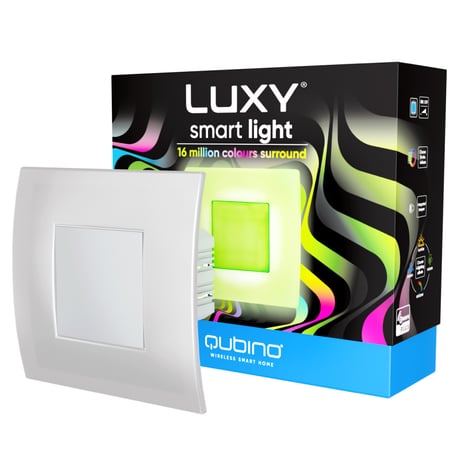

Product Image

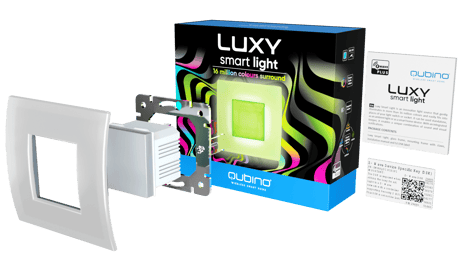

Luxy Smart Light packaging and content
Luxy Smart Light
1 - Parameter no. 1 – Digital input type
Defines the input type of device connected to digital input. Values (size is 1-byte dec): • Default value 1 • 0 – Push-button • 1 – ON/OFF toggle switch • 2 – motion sensor • 3 – motion sensor with memory (turned off after certain amount of time defined in parameter 5)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Push-button |
| 1 | 1 | ON/OFF toggle switch |
| 2 | 2 | Motion sensor |
| 3 | 3 | Motion sensor with memory (turned off after certain amount of time defined in parameter 5) |
3 - Parameter no. 3 – Turning off alarming
Values (size is 1-byte dec): • default value 1 • 0 – only by z-wave command (basic set, switch multilevel set, switch multilevel start/stop level change, sound switch play tone, sound switch configuration, switch color set, switch color start/stop level change, notification report idle) • 1 – capacitive input or z-wave command (basic set, switch multilevel set, switch multilevel start/stop level change, sound switch play tone, sound switch configuration, switch color set, switch color start/stop level change, notification report idle)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | only by z-wave command (basic set, switch multilevel set, switch multilevel start/stop level change, sound switch play tone, sound switch configuration, switch color set, switch color start/stop level change, notification report idle) |
| 1 | 1 | capacitive input or z-wave command (basic set, switch multilevel set, switch multilevel start/stop level change, sound switch play tone, sound switch configuration, switch color set, switch color start/stop level change, notification report idle) |
5 - Parameter no. 5 – Motion sensor memory timer
Defines the time after which the output triggered by motion sensor is turned off. Values (size is 2-byte dec): • default value 10 • 0 – 32534 = 0-32534 seconds after which the LED will be turned off. • 32535 – never turns offSize: 2 bytes
Default: 10
Minimum: 0
Maximum: 32535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32534 | 0-32534 seconds after which the LED will be turned off. |
| 32535 | 32535 | never turns off |
10 - Parameter no. 10 – Auto on timer
Defines the time after which the device is turned to last known state. Values (size is 2-byte dec): • Default value 0 • 0 – disabled • 30 – 32535 = 30 – 32535 seconds after which the device turns on ⓘ NOTE: If the user is performing an inclusion/exclusion/factory reset of this device and this parameter is configured to a non-default value, a change of output state can occur. This will result in an interruption of the inclusion/exclusion/reset process.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 32535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disabled |
| 30 | 32353 | 30 – 32535 seconds after which the device turns on |
11 - Parameter no. 11 – Auto off timer
Defines the time after which the device is turned to last known state. Values (size is 2-byte dec): • Default value 0 • 0 - disabled • 30 – 32535 = 30 – 32535 seconds after which the device turns off ⓘ NOTE: If the user is performing an inclusion/exclusion/factory reset of this device and this parameter is configured to a non-default value, a change of output state can occur. This will result in an interruption of the inclusion/exclusion/reset process.Size: 2 bytes
Default: 30
Minimum: 0
Maximum: 32535
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disabled |
| 30 | 32535 | 30 – 32535 seconds after which the device turns off |
30 - Parameter no. 30 – Restore state on power failure
Values (size is 1-byte dec): • Default value 1 • 1 – enabled (the device will restore state on power failure) • 0 – disabled (the device will not restore state on power failure and will remain off)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | enabled (the device will restore state on power failure) |
| 0 | 0 | – disabled (the device will not restore state on power failure and will remain off) |
50 - Parameter no. 50 – Beeper enable/disable
This parameter affects beeper function just in case when the device receives the NOTIFICATION_REPORT. If the user sends a SOUND_SWITCH_TONE_PLAY_SET (1), the buzzer still emits a serviceable tone. Values (size is 1-byte dec): • Default value 1 • 0 – disabled (the beeper is not active) • 1 – enabled (the beeper is active)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disabled (the beeper is not active) |
| 1 | 1 | enabled (the beeper is active) |
MANUALLY ADDING THE DEVICE TO A Z-WAVE NETWORK (MANUAL INCLUSION) 1. Enable add/remove mode on your Z-Wave gateway (hub). 2. Connect the device to the power supply. 3. Make sure the device is within direct range of your Z-Wave gateway (hub). 4. Press once on button 2 – right. One press on button 3 – down for enabling full white. When full white is enabled, press, and hold button 2 – right, between 4 and 6 seconds. After 6 seconds, the device starts flashing green (1 second ON, 0.5 second OFF). Once the device receives node ID (after 10 seconds), it stops flashing and turns full green. The procedure is always available.
12.3. Removing the device from a Z-Wave network (Exclusion) 1. Connect the device to the power supply. 2. Make sure the device is within direct range of your Z-Wave gateway (hub) or use a hand-held Z-Wave remote to perform exclusion. 3. Enable add/remove mode on your Z-Wave gateway (hub). 4. Press once on button 2 – right. One press on button 3 – down for enabling full white. When full white is enabled, press, and hold button 2 – right for 5 seconds. After 5 seconds, the device starts flashing red 1 second ON, 0.5 second OFF. Once the device loses node ID (after 10 seconds), it stops flashing and turns full red. The procedure is always available. NOTE1: LEARN MODE state allows the device to receive network information from the controller.
12.4. Device factory reset 1. Connect the device to the power supply. 2. Press once on button 2 – right. One press on button 3 – down for enabling full white. When full white is enabled, press, and hold button 4 – left for 10 seconds. After 10 seconds, the device starts flashing blue 1 second on, 0.5 second off. After 10 seconds the device stops flashing and turns full blue. The procedure is always available. ⓘ By factory resetting the device, all custom parameters previously set on the device will return to their default values, and the node ID will be deleted. Use this reset procedure only when the main gateway (hub) is missing or otherwise inoperable.
MPORTANT: When adding the LUXY Smart Light to a Z-Wave network with a controller supporting Security 2 (S2), the PIN code of the Z-Wave Device Specific Key (DSK) is required. The unique DSK code is printed on the product label and a copy is inserted in the packaging, which must not be lost. Do not remove the DSK from the product. As a backup measure, use the label in the packaging.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Siren |
|
