Jasco
Plug-in Smart Switch (Dual Plug with Pass through Outlet)
55250/ZW4104
On/Off Power Switch
HW: 255 FW: 5.51
ZM5202
6.82.00
0x0063 (99)
0x5052 (20562)
0x3134 (12596)
ZC10-20086960
2020-07-27 18:13:05.142067
N/A
Enhanced 232 Slave
Always On Slave
Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control and Appliance Module.
Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control and Appliance Module. The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control and a regular pass-through AC outlet for other electrical appliances. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls!

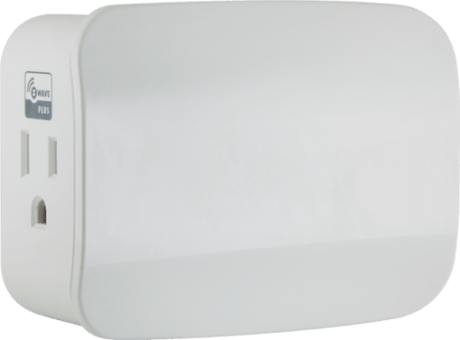

Product Image
3 - LED Light
0 = Light is ON when Load is ON (Default) 1 = Light is On when Load is Off 2 = Light is always OFF 3 = Light is always ONSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED On when load is On, LED Off when load is Off (Default) |
| 1 | 1 | LED is guidelight |
| 2 | 2 | Always OFF |
| 3 | 3 | Always ON |
1. Follow the instructions for your Z-Wave certified controller to add the smart switch to the Z-Wave network. 2. Once the controller is ready to add your smart switch, press and release the manual/program button on the smart switch.
1. Follow the instructions for your Z-Wave certified controller to remove a smart switch from the Z-Wave network. 2. Once the controller is ready to remove your smart switch, press and release the manual/program button on the smart switch.
1. If plugged in, unplug the smart switch from the receptacle. 2. Press and hold the program button for at least three seconds while you plug the smart switch into a receptacle.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1).
| Type | Value(s) |
|---|
