Sensative
Strips Guard 700
11 01 026
Notification Sensor
HW: 1 FW: 5.16
ZGM130
7.13.3
0x019A (410)
0x0004 (4)
0x0004 (4)
ZC12-20080091
2020-08-11 11:11:12.691627
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Strips Guard is an ultra-thin contact sensor and the thinnest magnet sensor in the world, detecting if your doors or windows are open or closed and featuring a design so sleek it disappears right into the architecture of any installation scenario.
Strips Guard is an ultra-thin contact sensor and the thinnest magnet sensor in the world, detecting if your doors or windows are open or closed and featuring a design so sleek it disappears right into the architecture of any installation scenario. Strips Guard sends an alarm signal if it detects the opening of any door or window and due to its slim and discrete design, can also be placed in cabinets, on drawers or even behind artwork as an activity sensor. Its unique design allows it to be easily placed almost anywhere, generally in most places where other sensors simply can’t fit. Strips Guard is an extremely reliable contact sensor. The unique design makes it easy to place nearly invisibly in your home to alert occupants of any open/close or activity event when connected to your Z-Wave smart home system. Strips 700 Series Guard can be used both indoors and out, and the integrated custom battery gives Strips an expected lifetime of 10+ years. For you, this means no hassles with changing or charging batteries in your Strips sensors for the lifetime of the product! Z-Wave Plus 700 series sensors bring a wealth of additional valued features such as longer range, low power consumption for extended battery life and SmartStart technology for instant enrolling. With SmartStart, device inclusion can be initiated automatically by simply removing the included magnets. The Z-Wave gateway then performs the inclusion process in the background without the need for user interaction. 700 Series provides a direct range of 100 meters, an improvement of 60 meters over the 500 series and also includes the industry’s best S2 security, providing Strips Guard with the ultimate combination of features to securely protect your home.

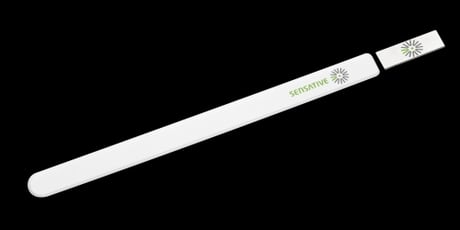

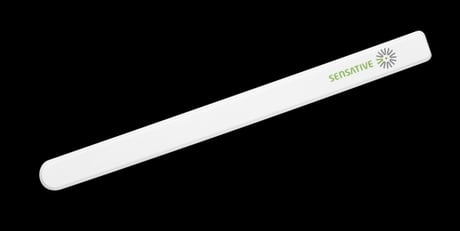

Product Image


View configuration parameters (8)
1 - Notification type
Select the notification type for the door and window open or close events.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Binary sensor report + Notification report (Access Control) |
| 1 | 0 | Notification report (Access Control) |
| 2 | 0 | Notification report (Home Security) |
2 - LED indication
Turn On or Off LED for specific event indications (ex. alarms).Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns off LED for door open events |
| 1 | 0 | On |
15 - Activate supervision
Activate Supervision command for only important alarm events or all events. Supervised commands require a confirmation from the gateway when a notification is received.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Events sent with S2 Encapsulation only |
| 1 | 0 | Only Door Open Alarm Report (Events sent with S2 and supervision encapsulation) |
| 2 | 0 | Unsolicited reports (Door Open/Close, Tamper clear, Wake-up notification and Battery Report events sent with S2 and supervision encapsulation) |
16 - Supervision report wait time
Only used if parameter 22 is set to 1 (High security). The number of milliseconds to wait for a Supervision response when a Supervised message is sent.Size: 2 bytes
Default: 10000
Minimum: 500
Maximum: 30000
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 30000 | (ms) |
17 - No. of failed event retries
Only used if parameter 22 is set to 1 (High security). Number of retries when a confirmation is not received.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | 0 = No retry, 1 - 5 = Number of retries when a confirmation is not received. |
18 - Failed Event Retry Interval
Only used if parameter 22 is set to 1 (High security). The minimum number of seconds between retries.Size: 1 byte
Default: 6
Minimum: 1
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | Min = 1 second, Max = 60 seconds |
19 - Heartbeat interval
Only used if parameter 22 is set to 1 (High security). Number of minutes between periodic battery reports (Heartbeats).Size: 1 byte
Default: 70
Minimum: 5
Maximum: 70
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 70 | (mins) - Accepts multiples of 5 mins. - Any arbitary value in between 5 and 70 will be rounded up to a multiple of 5 |
22 - Security Level
Select the level of security.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | : Standard (Forces parameter behaviour as follows: #16=1000, #17=Sensative standard**, #18=0, #19=Off, #21=Off ** Retries with an incrementally longer period until reconnected |
| 1 | 0 | : High Security (Enables parameters 16-19, 21) |
Operating instructions (5)
Set your controller in add or remove mode (see your controller’s manual). Follow the instruction below for Wake up. A long LED blink indicates that the add/remove was successful. To wake up Strips manually for communication with the Z-Wave controller, move the magnet towards and away from the rounded edge. Repeat 3 times.
Set your controller in add or remove mode (see your controller’s manual). Follow the instruction below for Wake up. A long LED blink indicates that the add/remove was successful. To wake up Strips manually for communication with the Z-Wave controller, move the magnet towards and away from the rounded edge. Repeat 3 times.
To wake up Strips manually for communication with the Z-Wave controller, move the magnet towards and away from the rounded edge. Repeat 3 times.
You may need to reset Strips if your Z-Wave controller is missing or not responding. Follow the instructions for “Wake up” above, but on the 3rd repetition, keep the magnet at the rounded edge for 10 seconds. A long LED signal indicates success.
"Strips Guard 700 is a SmartStart enabled product and can be added to SmartStart enabled Z-Wave controllers by scanning the Z-Wave QR Code present on the back label of the Strip, or on the DSK leaflet present in the box, then removing both the magnets. SmartStart product will be added automatically within 10 minutes of being switched on in the network range."
Document (1)
| Type | Name | |
|---|---|---|
| Product Manual | Strips Guard 700 manual.pdf |
Features (4)
| Type | Value(s) |
|---|
Supported notifications (5)
| Group | Type |
|---|---|
| Access Control |
|
| Home Security |
|
| System | SW status: System software failure (manufacturer proprietary failure code provided) |
