Master
ZOE SHUTTER E
HZ07000
Window Covering - Pos/End Aware
HW: 1 FW: 6.04:06.05
ZM5202
6.51.09
0x0440 (1088)
0x0003 (3)
0x0071 (113)
ZC10-20106992
2020-10-16 18:33:14.283417
N/A
Enhanced 232 Slave
Always On Slave
The ZOE Shutter E controls the motors of blinds, rollers, shades, venetian blinds, etc. It measures power consumption of the connected device, and can be paired with a digital temperature sensor (sold separately).
The ZOE Shutter E controls the motors of blinds, rollers, shades, venetian blinds, etc. It measures power consumption of the connected device, and can be paired with a digital temperature sensor (sold separately). The connection of a digital temperature sensor means you can create complex scenes and control any device relative to a set temperature range. The ZOE Shutter E also acts as a Z-Wave repeater to improve the range and stability of the Z-Wave network. The ZOE Shutter E can be used in many different scenes, which can help make your life more comfortable. Get an idea for your next smart home project. Of course, there are countless of other options for how to use ZOE Shutter E to remotely control devices via your smartphone.

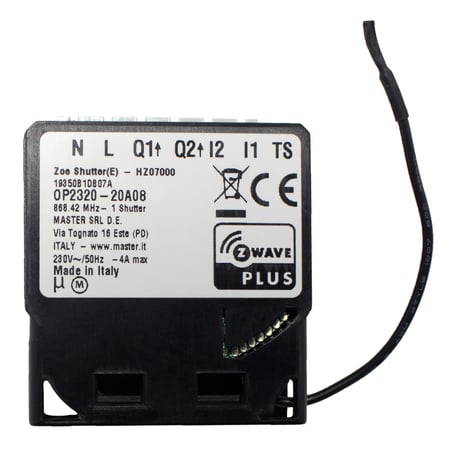

Product Image
10 - Parameter no. 10 - Activate/deactivate functions ALL ON / ALL OFF
Available config. parameters (data type is 2 Byte DEC): • default value 255 • 255 - ALL ON active, ALL OFF active. • 0 - ALL ON is not active ALL OFF is not active • 1 - ALL ON is not active ALL OFF active • 2 - ALL ON active ALL OFF is not active Zoe Shutter responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controllers belonging to the system.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | ALL ON active, ALL OFF active |
| 0 | 0 | ALL ON not active, ALL OFF not active |
| 1 | 1 | ALL ON not active, ALL OFF active |
| 2 | 2 | ALL ON active, ALL OFF not active |
40 - Parameter no. 40 - Power reporting in Watts on power change for Q1 or Q2
Set value means percentage, set value from 0 – 100 = 0% - 100%. Available configuration parameters (data type is 1 Byte DEC): • default value 10 = 10% • 0 - reporting disabled • 1 - 100 = 1% - 100% Reporting enabled. Power report is send (push) only when actual power (in Watts) in real time changes for more than set percentage comparing to previous actual power in Watts, step is 1%. NOTE: if power changed is less than 1W, the report is not send (pushed), independent of percentage set.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power consumption reporting disabled |
| 1 | 100 | 1% - 100% Power consumption reporting enabled. New value is reported only when the power consumption in real time changes by more than the percentage value set in this parameter, compared to the previous power consumption reading, starting at 1% (the lowest value possible). |
42 - Parameter no. 42 – Power reporting in Watts by time interval for Q1 or Q2
Set value means time interval (0 – 32767) in seconds, when power report is send. Available configuration parameters (data type is 2 Byte DEC): • default value 0 = reporting disabled • 0 - reporting disabled • 1 - 32767 = 1 second - 32767 seconds. Reporting enabled, power report is send with time interval set by entered value.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Power consumption reporting disabled |
| 1 | 32767 | 1 - 32767 seconds. Power consumption reporting enabled. Report is sent according to time interval (value) set here |
71 - Parameter no. 71 – Operating modes
This parameter defines selection between two available operating modes. Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - Shutter mode • 1 - venetian mode (up/down and slate rotation) NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module!Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Shutter mode |
| 1 | 1 | Venetian mode (up/down and slate rotation) |
72 - Parameter no. 72 – Slats tilting full turn time
This parameter defines the time necessary for slats to make full turn (180 degrees). Available configuration parameters (data type is 2 Byte DEC): • default value 150 = 1,5 seconds • 0 - tilting time disabled • 1 - 32767 = 0,01seconds - 327,67 seconds NOTE: If time set is too high, this will result that after full turn, Shutter will start move up or down, for time remainingSize: 2 bytes
Default: 150
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | tilting time disabled |
| 1 | 32767 | 0.01seconds – 327.67 seconds |
73 - Parameter no. 73 – Slats position
This parameter defines slats position after up/down movement through Z-Wave or push-buttons. Available configuration parameters (data type is 1 Byte DEC): • default value 1 • 0 - Slats return to previously set position only in case of Z-Wave control (not valid for limit switch positions). • 1 - Slats return to previously set position in case of Z-Wave control, push-button operation or when the lower limit switch is reached.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Slats return to the previously set position only after being activated via the Z-Wave gateway (hub) (not valid for limit switch positions) |
| 1 | 1 | Slats return to the previously set position in case they were activated via the Z-Wave gateway (hub), push-button operation or when the lower limit switch is reached |
74 - Parameter no. 74 – Motor moving up/down time
complete opening or complete closing. Available configuration parameters (data type is 2 Byte DEC): • default value 0 • 0 – moving time disabled (working with limit switches) • 1 - 32767 = 0,1seconds - 3276,7seconds After that time motor is stopped (relay goes to off state) NOTE: Important is that the reference position to manually set moving time is always Shutter lower position! Set parameter 74 to 0 and move the Shutter (using up/down push buttons or main controller UI) to the lowest desired position. On this Shutter position, set parameter 74 to time for complete opening or complete closing. At this point Shutter can be moved up (open) for set time, but can't be moved down because this position is already set as lower Shutter position. To change Shutter lower position below already set (manual recalibration), parameter 74 must be set to 0 and repeat the procedure described above. In case Shutter has limit switches, but anyhow you would like to limit opening/closing position by time, you can still do it. In case you put time that is longer that opening/closing real time limited by limit switches, Shutter will stop at limit switch, but the module relay will switch off after define time, not by Shutter limit switch. Take in consideration that in this condition, the positioning with slider through UI will not show correct Shutter position.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 32767
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | moving time disabled (working with limit switches) |
| 1 | 32767 | 0.1 seconds – 3276.7 seconds |
76 - Parameter no. 76 - Motor operation detection
Power threshold to be interpreted when motor reach the limit switch. Available configuration parameters (data type is 1 Byte DEC): • default value 30 = 30W • 0 - 127 = 1-127 W. The value 0 means reaching a limit switch will not be detected.Size: 1 byte
Default: 30
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The value 0 means that reaching a limit switch will not be detected. |
| 1 | 127 | 1 - 127W The value 0 means reaching a limit switch will not be detected. |
78 - Parameter no. 78 - Forced Shutter calibration
By modifying the parameters setting from 0 to 1 a Shutter enters the calibration mode. Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 1 - Start calibration process (when calibration process is finished, completing full cycle - up, down and up, set the parameter 78 (Forced Shutter calibration) value back to 0.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | - Start the calibration process. When the calibration process finishes (completing the full cycle - up, down and up again), set the value of the parameter 78 (Forced Shutter calibration) back to 0. |
85 - Parameter no. 85 – Power consumption max delay time
This parameter defines the max time before motor power consumption is read after one of the relays is switched ON. If there is no power consumption during this max time (motor not connected, damaged or requires higher time to start, motor in end position) the relay will switch OFF. Time is defined by entering it manually. Available configuration parameters (data type is 1 Byte DEC): • default value 30 = 3s • 0 = time is set automatically • 3 - 50 = 0,3seconds - 5seconds (100ms resolution)Size: 1 byte
Default: 30
Minimum: 0
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | time is set automatically |
| 3 | 50 | 0.3seconds - 5seconds (100ms resolution) |
90 - Parameter no. 90 – Time delay for next motor movement
This parameter defines the minimum time delay between next motor movement (minimum time between switching motor off and on again). Available configuration parameters (data type is 1 Byte DEC): • default value 5 = 500ms • 1 - 30 = 0,1seconds - 3seconds (100ms resolution)Size: 1 byte
Default: 5
Minimum: 0
Maximum: 30
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 5 | 500ms |
| 1 | 30 | 0.1seconds - 3seconds (100ms resolution) |
110 - Parameter no. 110 – Temperature Sensor Offset Settings
Set value is added or subtracted to actual measured value by sensor. Available configuration parameters (data type is 2 Byte DEC): • default value 32536 • 32536 - offset is 0.0C • From 1 to 100 - value from 0.1 °C to 10.0 °C is added to actual measured temperature. • From 1001 to 1100 - value from -0.1 °C to -10.0 °C is subtracted to actual measured temperature.Size: 2 bytes
Default: 32536
Minimum: 0
Maximum: 32536
Possible values
| From | To | Desription |
|---|---|---|
| 32536 | 32536 | Offset is 0 °C |
| 1 | 100 | Where 1 stands for 0.1°C and 100 stands for 10.0°C added to the actual measurement. |
| 1001 | 1100 | Where 1001 stands for -0.1°C and 1100 stands for -10.0°C subtracted from the actual measurement. |
120 - Parameter no. 120 – Temperature Sensor Reporting Threshold
If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • default value 5 = 0,5°C • 0 - Reporting disabled • 1-127 = 0,1°C - 12,7°C, step is 0,1°CSize: 1 byte
Default: 5
Minimum: 0
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled |
| 1 | 127 | Where 1 stands for 0.1°C and 127 stands for 12.7°C. |
Module Inclusion (Adding to Z-Wave network) • Connect module to power supply (with temperature sensor connected - if purchased), • auto-inclusion (works for about 5 seconds after connected to power supply) or • press push button I1 three times within 3s (6 times change switch state within 3 seconds) or • press service button S (only applicable for 24 V SELV supply voltage) for more than 2 second. NOTE1: For auto-inclusion procedure, first set main controller into inclusion mode and then connect module to power supply. NOTE2: When connecting temperature sensor to module that has already been included, you have to exclude module first. Switch off power supply, connect the sensor and re-include the module.
• Connect module to the power supply • bring module within a maximum 1 meter (3 feet) of the main controller, • enable add/remove mode on the main controller, • press push button I1 5 times within 3s (10 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV supply voltage) for more than 6 seconds. By this function all parameters of the module are set to default values and their own ID is deleted. If push button I1 is pressed 3 times within 3s (6 times change switch state within 3 seconds) (or service button S is pressed more than 2 and less than 6 seconds) module is excluded, but configuration parameters are not set to default values. NOTE: If the module is included with parameters 71 with a value different to default and module reset is done, wait for at least 30s before the next inclusion FACTORY RESET 1. Connect the device to the power supply 2. Within the first minute the device is connected to the power supply, toggle the switch connected to the I1 terminal 5 times within 3 seconds OR If the device is powered by 24 Vdc SELV supply, press and hold the S (Service) button for at least 6 seconds By resetting the device, all custom parameters previously set on the device will return to their default values, and the owner ID will be deleted. Use this reset procedure only when the gateway (hub) is missing or otherwise inoperable. NOTE: Please use this procedure only when the network primary controller is missing or otherwise inoperable
FACTORY RESET 1. Connect the device to the power supply 2. Within the first minute the device is connected to the power supply, toggle the switch connected to the I1 terminal 5 times within 3 seconds OR If the device is powered by 24 Vdc SELV supply, press and hold the S (Service) button for at least 6 seconds By resetting the device, all custom parameters previously set on the device will return to their default values, and the owner ID will be deleted. Use this reset procedure only when the gateway (hub) is missing or otherwise inoperable. NOTE: Please use this procedure only when the network primary controller is missing or otherwise inoperable
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | Over-load status: Over-load detected |
| Sensor type |
|---|
| Air Temperature |
| Meter type |
|---|
| Electric Meter Consumption |
