Jasco
Portable Remote, Simple Controller, 2 Button
53829/ZW5313
Central Scene Device
HW: 1 FW: 7.04
ZGM130
7.13.6
0x0063 (99)
0x4843 (18499)
0x3136 (12598)
ZC12-20090119
2020-09-17 12:28:35.09215
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
Custom lighting control is at your fingertips with the Jasco Z-Wave 2-Button Portable Hub Remote.
Custom lighting control is at your fingertips with the Jasco Z-Wave 2-Button Portable Hub Remote. This versatile remote communicates with your hub to activate up to 6 unique, lighting scenes. Once the remote is connected to your existing network, you can begin programming the lights to personalize your indoor space. The wireless lighting control has an overall signal range of up to 150 feet and is compatible with any device that works with your hub. Enjoy a variety of placement options for your lighting control – utilize the included hardware and magnetic bracket for wall mounting, detach the remote for instant portability or pair the remote with a separate stand for convenient tabletop use. The hub remote also functions on a scalable system, giving you the freedom to start with one remote and add as many as you need. Take control of your lights with the Z-Wave 2 Button Portable Hub Remote.

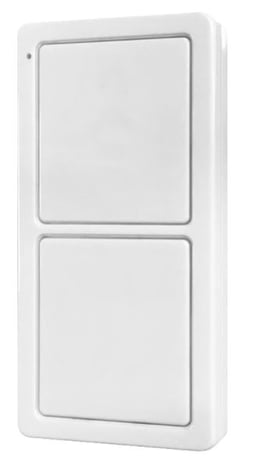

Product Image
2 - Controller Work Mode
Enable/ Disable Group 2 and 3Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Enabled- Normal Operation |
| 1 | 1 | Disabled Groups 2 and 3 |
1. Follow the instructions for your Z-Wave certified hub to add a device to the Z-Wave network. 2. Once the hub is ready to add your device, press and hold either button for three seconds. 3. The LED will flash two times when the remote sends add notification (NIF). 4. The LED will keep lighting up for one minute if inclusion is successful.5. Following the instructions for your Z-Wave certified hub, assign actions for each button press. An action can be many combinations of scenes, groups or events, and is greatly dependent on the hub capabilities.
1. Follow the instructions for your Z-Wave certified hub to remove a device from the Z-Wave network. 2. Once the hub is ready to remove your device, press and hold either button for three seconds. 3. The LED will flash two times when the remote sends remove notification (NIF).
1. Press and hold Button 1 for 3 seconds. 2. The LED will flash two (2) times.
1. Press and release Button 1 ten times quickly. All button presses must be within 6 seconds. 2. The LED will flash five (5) times when completed successfully.
When prompted, scan the QR code on the back of the remote or type the 5-digit pin code located on the back of the remote. If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1). Enter the 5-digit PIN code.
Adding your remote to a Z-Wave network 1. Follow the instructions for your Z-Wave certified hub to add a device to the Z-Wave network. 2. Once the hub is ready to add your device, press and hold Button 1 for 3 seconds. 3. The LED will flash two (2) times when the remote sends add notification (NIF). NOTE: Some Hubs will require an additional step for secure inclusion, when prompted scan the QR code on the back of the remote, or type in the 5-digit pin code located on the back of the remote.
Removing your remote from a Z-Wave network 1. Follow the instructions for your Z-Wave certified hub to remove a device from the Z-Wave network. 2. Once the hub is ready to remove your device, press and hold Button 1 for 3 seconds. 3. The LED will flash two (2) times when the remote sends remove notification (NIF).
