Jasco
Portable Remote, Simple Controller, 4 Button
53831/ZW5314
Central Scene Device
HW: 1 FW: 7.03
ZGM130
7.13.6
0x0063 (99)
0x4843 (18499)
0x3138 (12600)
ZC12-20090120
2020-09-18 13:49:59.23613
N/A
Portable Controller
Reporting Sleeping Slave
Yes
Custom lighting control is at your fingertips with the Jasco Z-Wave 4-Button Portable Hub Remote. This versatile remote communicates with your hub to activate up to 6 unique, lighting scenes.
Custom lighting control is at your fingertips with the Jasco Z-Wave 4-Button Portable Hub Remote. This versatile remote communicates with your hub to activate up to 6 unique, lighting scenes. Enjoy a variety of placement options for your lighting control – utilize the included hardware and magnetic bracket for wall mounting, detach the remote for instant portability or pair the remote with a separate stand for convenient tabletop use. The hub remote also functions on a scalable system, giving you the freedom to start with one remote and add as many as you need. Take control of your lights with the Z-Wave 4 Button Portable Hub Remote.

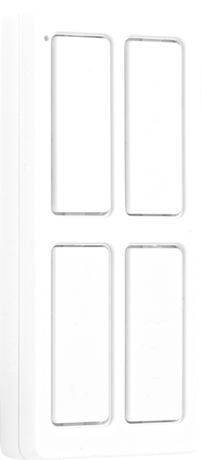

Product Image
2 - Controller work mode
Enable/disable group 2 and group 3Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Enabled- Normal Operation |
| 1 | 1 | Disabled Groups 2 and 3 |
1. Follow the instructions for your Z-Wave certified hub to add a device tothe Z-Wave network. 2. Once the hub is ready to add your device, press and hold either button for three seconds. 3. The LED will flash two times when the remote sends add notification (NIF). 4. The LED will keep lighting up for one minute if inclusion is successful. 5. Following the instructions for your Z-Wave certified hub, assign actions for each button press. An action can be many combinations of scenes, groups or events, and is greatly dependent on the hub capabilities.
1. Follow the instructions for your Z-Wave certified hub to remove a device from the Z-Wave network. 2. Once the hub is ready to remove your device, press and hold either button for three seconds. 3. The LED will flash two times when the remote sends remove notification (NIF).
Press and Hold Either Button for one to three seconds.
1. Press and release button 1 10 times quickly. All button presses must be within six seconds. 2. The LED will flash five times when completed successfully.
If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the side of the box or the QR code label on the product (see Figure 1).
| Type | Value(s) |
|---|
