Minoston
S2 In-wall Smart Dimmer switch
MS11ZS
Light Dimmer Switch
HW: 1 FW: 1.00
ZM5202
6.81.03
0x0312 (786)
0xEE00 (60928)
0xEE02 (60930)
ZC10-20096981
2020-09-18 15:56:03.518648
N/A
Enhanced 232 Slave
Always On Slave
This is an intelligent dimmer with built-in Z-Wave S2 protocol and z-Wave gateway. It can realize timing, countdown, remote control, scene mode and other functions.
This is an intelligent dimmer with built-in Z-Wave S2 protocol and z-Wave gateway. It can realize timing, countdown, remote control, scene mode and other functions. This product is a power product with built-in relay function.

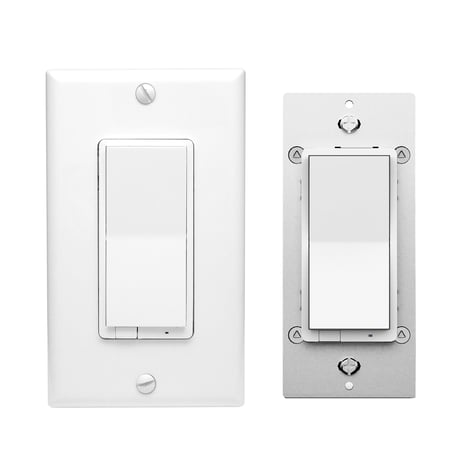

Product Image
1 - Locally Button function
Locally Button functionSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Up Button ON,Down Button OFF |
| 1 | 1 | Up Button OFF,Down Button ON |
| 2 | 2 | Up Button ON/OFF,Down Button ON/OFF |
2 - Status LED Configuration
Status LED ConfigurationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Output and the LED are in the different state |
| 1 | 1 | Output and the LED are in the same state |
| 2 | 2 | Always OFF |
| 2 | 2 | Always OFF |
| 3 | 3 | Always ON |
3 - Enable Auto Turn-OFF Timer
Enable Auto Turn-OFF TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-OFF Timer Disabled |
| 1 | 1 | Auto Turn-OFF Timer Enabled |
4 - Count Down Configuration
Count Down Configuration(Turn off the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Turn off the output by time |
5 - Enable Auto Turn-ON Timer
Enable Auto Turn-ON TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-ON Timer Disabled |
| 1 | 1 | Auto Turn-ON Timer Enabled |
6 - Count Down Configuration
Count Down Configuration(Turn ON the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | (Turn ON the output by time） |
7 - Association Setting Parameter
Association Setting ParameterSize: 1 byte
Default: 15
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | None |
| 1 | 1 | Local |
| 2 | 2 | 3-way |
| 3 | 3 | 3-way&Local |
| 4 | 4 | Z-Wave Hub |
| 5 | 5 | Z-Wave hub&Local |
| 6 | 6 | Z-Wave hub&3-way |
| 7 | 7 | Z-Wave hub&Local&3-way |
| 8 | 8 | Timer |
| 9 | 9 | Timer&Local |
| 10 | 10 | Timer&3-way |
| 11 | 11 | Timer&3-way&Local |
| 12 | 12 | Timer&Z-Wave hub |
| 13 | 13 | Timer&Z-Wave hub&Local |
| 14 | 14 | Timer&Z-Wave hub&3-way |
| 15 | 15 | All |
8 - Restores state after power failure
Restores state after power failureSize: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Output OFF |
| 1 | 1 | Output ON |
| 2 | 2 | The state before a power outage |
9 - Dimmer Speed Parameter （Local Button）
Dimmer Speed Parameter （Local Button）Size: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | from 0x63 to 0x00 or from 0x00 to 0x63 need Value s |
10 - Multilevel minimum value can be set（The minimum luminance value of the dimming）（Local Button）
Multilevel minimum value can be set（The minimum luminance value of the dimming）（Local Button）Size: 1 byte
Default: 1
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | The minimum luminance value of the dimming |
11 - Multilevel maxmum value can be set（The maxmum luminance value of the dimming）（Local Button）
Multilevel maxmum value can be set（The maxmum luminance value of the dimming）（Local Button）Size: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | the maxmum luminance value of the dimming |
12 - quickly press UPPER paddle 2 times
when switch is off and quickly press UPPER paddle 2 times, switch turns on to x brightnessSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn ON to 99 |
| 1 | 1 | turn on to the value relate with parameter 11 |
14 - Double Tap Behavior
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | enable double tap to full brightness |
| 1 | 1 | disable double tap to full brightness, |
| 2 | 2 | disable double tap to full brightness, single tap always to full brightness |
15 - Enable or Disable local control
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable |
| 1 | 1 | enable |
ADD the MS11ZS from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the Up or Down button three times in one second. Include MS11ZS to/from a Z-Wave Gateway with supporting Security.The MS11ZS can support the Primary Controller that implemented the security S2.
Remove the MS11ZS from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the Up or Down button three times in one second. Include MS11ZS to/from a Z-Wave Gateway with supporting Security.The MS11ZS can support the Primary Controller that implemented the security S2.
MANUAL RESET ---Power off MS11ZS ---keep holding the PROG button ---Power on,Press and keep holding the PROG button for no less than 10 seconds. Please use this procedure only when the network primary controller is missing or otherwise inoperable."
